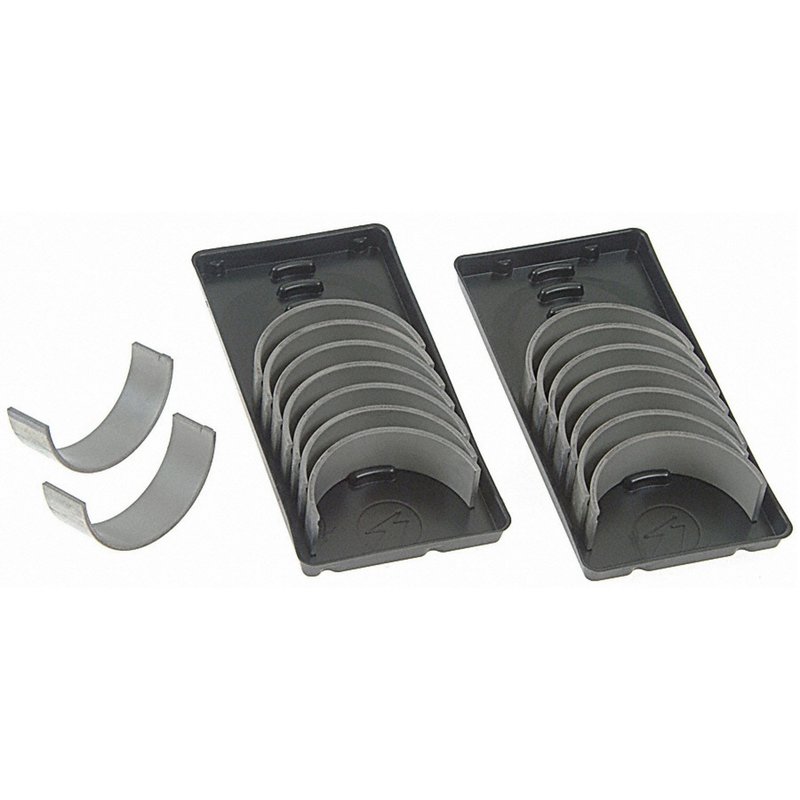

Sealed Power 8-3810CP Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 8-3810CP

The Sealed Power Engine Connecting Rod Bearing Set 8-3810CP is designed for reliable performance in Ford trucks and vans. This bearing set is engineered to meet precise specifications, ensuring proper fit and function in Ford E-250 Econoline Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, F-150, F-250, and F-350 models.

• Housing Bore Diameter: 2.6905 to 2.6910 inches (68.3390 to 68.3510 mm)
• Oil Clearance Range: 0.0011 to 0.0036 inches (0.0280 to 0.0910 mm)
• Overall Length Max: 0.8880 inches (22.5600 mm)
• Standard Shaft Diameter: 2.4980 to 2.4990 inches (63.4490 to 63.4750 mm)
• Wall Thickness Max: 0.0952 inches (2.4180 mm)

Technical Specifications and Performance Details

The 8-3810CP connecting rod bearing set from Sealed Power is manufactured to exacting tolerances to ensure optimal engine performance and durability. The housing bore dimensions range narrowly between 2.6905 and 2.6910 inches, providing a precise fit for the connecting rod journals. Oil clearance is critical for proper lubrication and heat dissipation; this set maintains a clearance between 0.0011 and 0.0036 inches, supporting efficient oil flow and reducing wear. The overall length and wall thickness are designed to maintain structural integrity under engine stress, while the standard shaft diameter ensures compatibility with specified Ford engine components.

Compatible Ford Models and Applications

This engine connecting rod bearing set is compatible with a range of Ford vehicles, including:

• Ford E-250 Econoline Club Wagon
• Ford E-350 Econoline and E-350 Econoline Club Wagon
• Ford F-150, F-250, and F-350 trucks

These vehicles benefit from the precise fit and engineered clearances of the 8-3810CP bearing set, which supports engine reliability and longevity.

Common Engine Issues Addressed by This Bearing Set

• Excessive bearing wear causing knocking noises
• Oil clearance problems leading to insufficient lubrication
• Connecting rod journal damage or scoring
• Engine vibration due to bearing misfit
• Reduced engine performance from bearing failure

Installation Notes and Tips

Proper installation of the Sealed Power 8-3810CP bearing set is essential for optimal engine operation. Ensure the housing bore and shaft dimensions are within specified tolerances before installation. Clean all mating surfaces thoroughly to remove debris and old lubricant. Use the recommended torque specifications for connecting rod bolts and verify oil clearance with plastigage or a similar measuring tool. It is advisable to replace bearings in matched sets to maintain balanced engine performance.

Quality Assurance and Warranty Information

Sealed Power manufactures the 8-3810CP bearing set to meet industry standards for durability and precision. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against manufacturing defects. This bearing set undergoes rigorous quality control to ensure consistent performance in Ford E-250 Econoline Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, F-150, F-250, and F-350 applications.
