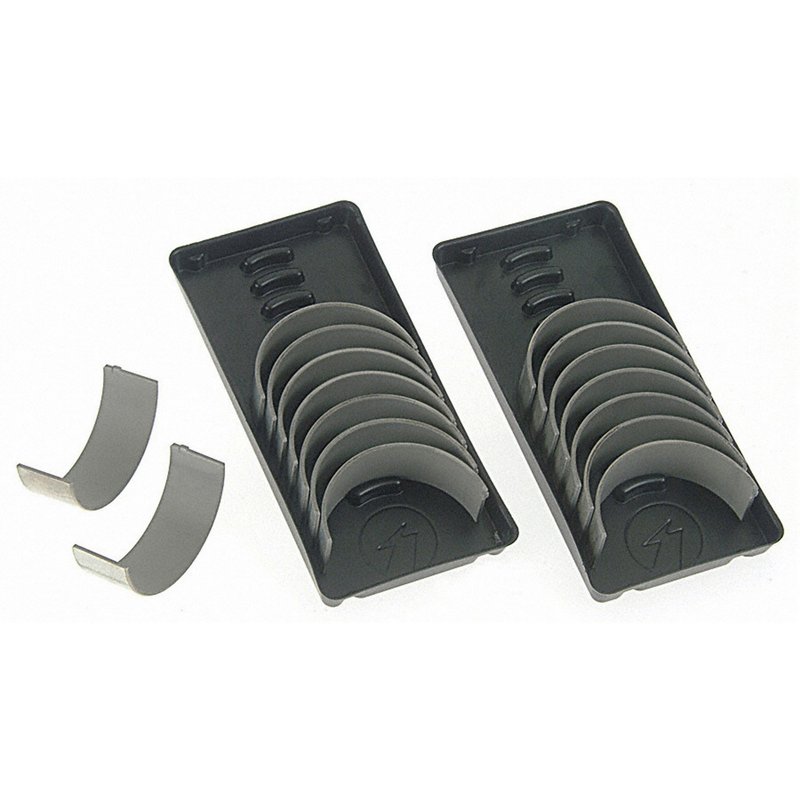

Sealed Power 8-3810CPA Engine Connecting Rod Bearing Set

Overview of Sealed Power Engine Connecting Rod Bearing Set 8-3810CPA

The Sealed Power Engine Connecting Rod Bearing Set 8-3810CPA is engineered for reliable performance in Ford heavy-duty vehicles. Designed to meet precise specifications, this bearing set supports optimal engine function in models such as the Ford E-350 Econoline and F-250 Super Duty.

• Housing Bore Diameter: 2.6905 to 2.6910 inches (68.3390 to 68.3510 mm)
• Oil Clearance Range: 0.0011 to 0.0036 inches (0.0280 to 0.0910 mm)
• Overall Length Max: 0.9640 inches (24.4900 mm)
• Standard Shaft Diameter: 2.4980 to 2.4990 inches (63.4490 to 63.4750 mm)
• Wall Thickness Max: 0.0952 inches (2.4180 mm)

Technical Specifications and Performance Details

This engine connecting rod bearing set is manufactured to exacting tolerances to ensure proper fit and function within the engine block. The housing bore dimensions ranging from 2.6905 to 2.6910 inches provide a precise fit for the connecting rod journals. Oil clearance specifications between 0.0011 and 0.0036 inches allow for adequate lubrication, reducing friction and wear during engine operation. The overall length and wall thickness are optimized to maintain structural integrity under heavy load conditions typical of Ford E-350 Club Wagon and F-350 Super Duty engines.

Compatible Ford Models and Applications

This Sealed Power 8-3810CPA bearing set is compatible with a range of Ford vehicles, including:

• Ford E-350 Club Wagon
• Ford E-350 Econoline and Econoline Club Wagon
• Ford E-350 Super Duty
• Ford Excursion
• Ford F-250, F-250 HD, and F-250 Super Duty
• Ford F-350 and F-350 Super Duty

Common Engine Issues Addressed by This Bearing Set

• Excessive bearing wear causing engine knocking
• Oil clearance irregularities leading to lubrication failure
• Connecting rod journal damage from improper fit
• Reduced engine efficiency due to bearing deformation
• Vibration and noise from worn or damaged bearings

Installation Notes and Tips

Ensure the engine block and connecting rod journals are thoroughly cleaned before installation. Verify housing bore and shaft dimensions to confirm compatibility. Use proper torque specifications when securing connecting rods to avoid bearing distortion. It is recommended to check oil clearance with plastigage or a micrometer during installation to maintain manufacturer tolerances.

Quality Assurance and Warranty Information

Sealed Power parts are manufactured to meet OEM standards for durability and performance. The 8-3810CPA connecting rod bearing set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power typically offers coverage against manufacturing defects to support long-term engine reliability.
