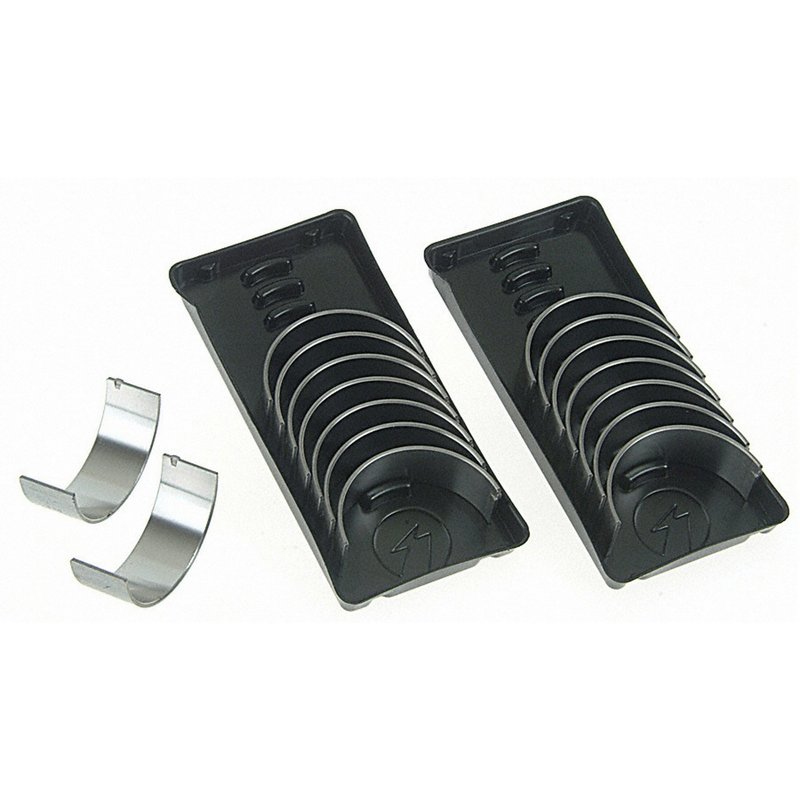

Sealed Power 8-4825A Engine Connecting Rod Bearing Set

OE Quality 60-Day Returns

Sealed Power 8-4825A Engine Connecting Rod Bearing Set

Brand	Sealed Power 8-4825A
Housing Bore Max (Inch)	2.2500
Housing Bore Max (MM)	57.1500
Housing Bore Min (Inch)	2.2496
Housing Bore Min (MM)	57.1380
Oil Clearance Max (Inch)	0.0020
Oil Clearance Max (MM)	0.0520
Oil Clearance Min (Inch)	0.0004
Oil Clearance Min (MM)	0.0100
Overall Length Max (Inch)	0.7580
Overall Length Max (MM)	19.2500
Standard Shaft Max (Inch)	2.1245
Standard Shaft Max (MM)	53.9620
Standard Shaft Min (Inch)	2.1240
Standard Shaft Min (MM)	53.9480
Wall Thickness Max (Inch)	0.0621
Wall thickness Max (MM)	1.5770
Fits	Buick, Cadillac, Pontiac, and Oldsmobile · 83 vehicles

Standard size. Full set for a precise engine connecting rod bearing replacement.

ISO and QS certified. Manufactured to meet demanding modern engine requirements.

Leading-edge materials. Built with innovative designs for dependable bearing performance.

Cross-references CB1648P and CR8003SI for the same application. See all 2.

$272.23Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Engine Connecting Rod Bearing Set options

Standard Size Connecting Rod Bearing Set

Sealed Power 8-4825A is a standard size engine connecting rod bearing set for A-Series aluminum engines. It is built for precise housing bore and shaft dimensions, with controlled oil clearance to support proper bearing fit in performance and repair applications.

Compatible With Cadillac DeVille, Seville, Eldorado, Allante, SRX, STS, DTS, XLR, Buick Lucerne, Pontiac Bonneville, and Oldsmobile Aurora applications that call for standard size connecting rod bearings.

Key Features

Standard size design for A-Series aluminum engines
Full set configuration for connecting rod bearing service
Housing bore range: 2.2496-2.2500 in. (57.1380-57.1500 mm)
Standard shaft range: 2.1240-2.1245 in. (53.9480-53.9620 mm)
Oil clearance range: 0.0004-0.0020 in. (0.0100-0.0520 mm)
Wall thickness up to 0.0621 in. (1.5770 mm)

Detailed Description

Sealed Power 8-4825A connecting rod bearings are engineered for engines that require standard size fitment and consistent dimensional control. The listed housing bore, shaft, oil clearance, and wall thickness specifications help support accurate bearing selection during engine rebuilds and bottom-end service. This part cross-references CB1648P and CR8003SI for the same application. Sealed Power uses modern materials and ISO- and QS-certified manufacturing practices to produce engine components for demanding automotive service.

Fits 2011-2006 Buick Lucerne, N/A; 2011-2006 Cadillac DTS, N/A; 2010-2005 Cadillac STS, N/A; 2009-2004 Cadillac SRX, N/A; 2009-2004 Cadillac XLR, N/A; 2005-1994 Cadillac DeVille, N/A; 2005-2004 Pontiac Bonneville, N/A; 2004-1993 Cadillac Seville, N/A; 2003-2001 Oldsmobile Aurora, N/A; 1999-1995 Oldsmobile Aurora, N/A; 2002-1993 Cadillac Eldorado, N/A; 1993 Cadillac Allante, N/A.

What It Helps Address

Excessive connecting rod bearing wear
Low oil pressure caused by worn bearing surfaces
Rod knock from bearing clearance issues
Engine rebuilds requiring standard size bearing replacement
Bottom-end service on A-Series aluminum engines

Installation Notes and Tips

Verify crankshaft journal size, housing bore, and oil clearance before installation. Confirm that the engine calls for standard size connecting rod bearings and match the bearing set to the correct A-Series aluminum engine application. Clean all mating surfaces thoroughly and measure clearances during assembly to confirm proper fit.

Quality Assurance

Sealed Power manufactures engine parts using leading-edge materials and ISO- and QS-certified processes to support consistent quality and dimensional accuracy.

This part fits 83 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2011	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2011	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2010	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2010	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2010	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	STS	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2009	Cadillac	XLR	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	STS	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2008	Cadillac	XLR	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	STS	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2007	Cadillac	XLR	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Buick	Lucerne	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	DTS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	STS	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2006	Cadillac	XLR	4.4L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2005	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2005	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2005	Cadillac	STS	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2005	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2005	Pontiac	Bonneville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2004	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2004	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2004	Cadillac	SRX	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2004	Cadillac	XLR	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2004	Pontiac	Bonneville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2003	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2003	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2003	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2002	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2002	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2002	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2002	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2001	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2001	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2001	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2001	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2000	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2000	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
2000	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1999	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1999	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1999	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1999	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1998	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1998	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1998	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1998	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1997	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1997	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1997	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1997	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1996	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1996	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1996	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1996	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1995	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1995	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1995	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1995	Oldsmobile	Aurora	4.0L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1994	Cadillac	DeVille	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1994	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1994	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1993	Cadillac	Allante	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1993	Cadillac	Eldorado	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
1993	Cadillac	Seville	4.6L	V8	N/A	Fits standard size engine connecting rod bearings for A-Series aluminum engines.
No rows match your filter.

Directly replaces or cross-references 2 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

CB1648PCR8003SI
