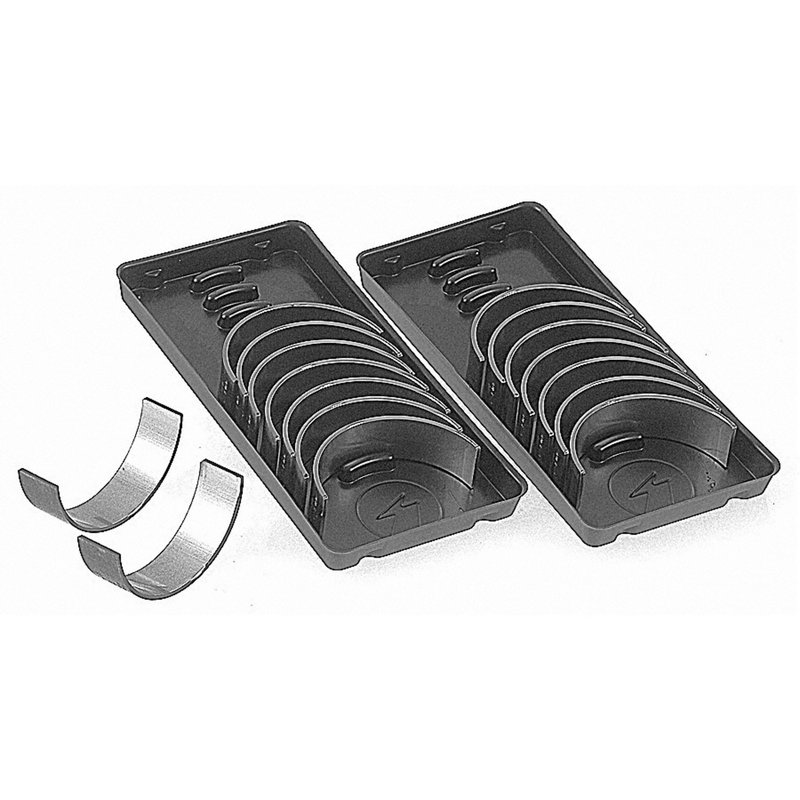

Sealed Power 8-4835A Engine Connecting Rod Bearing Set
OE Quality 60-Day Returns
Sealed Power

Sealed Power 8-4835A Engine Connecting Rod Bearing Set

Brand Sealed Power 8-4835A
Housing Bore Max (Inch) 2.1262
Housing Bore Max (MM) 54.0050
Housing Bore Min (Inch) 2.1257
Housing Bore Min (MM) 53.9930
Oil Clearance Max (Inch) 0.0018
Oil Clearance Max (MM) 0.0460
Oil Clearance Min (Inch) 0.0004
Oil Clearance Min (MM) 0.0100
Overall Length Max (Inch) 0.6550
Overall Length Max (MM) 16.6400
Standard Shaft Max (Inch) 2.0080
Standard Shaft Max (MM) 51.0030
Standard Shaft Min (Inch) 2.0077
Standard Shaft Min (MM) 50.9960
Wall Thickness Max (Inch) 0.0587
Wall thickness Max (MM) 1.4910
Fits Ram, Dodge, Chrysler, and Jeep · 50 vehicles

Standard size set. Fits standard dimensions for a straightforward replacement.

Full set. Supplies the complete bearing set needed for the job.

ISO and QS certified. Manufactured to rigorous quality standards for modern engines.

Cross-references 8B7210A, BB501J and CB1784P for the same application. See all 5.

$92.28Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $92.28
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Connecting Rod Bearing Set options

Sealed Power 8-4835A Engine Connecting Rod Bearing Set

Sealed Power 8-4835A is a standard-size engine connecting rod bearing set for A-Series aluminum engines. It is built for precise housing bore and shaft dimensions, controlled oil clearance, and consistent wall thickness to support proper rod bearing fit in service applications.

Key Features

  • Standard size connecting rod bearing set for A-Series aluminum engines
  • Full set configuration for engine rebuild and repair work
  • Housing bore range: 2.1257-2.1262 in. (53.9930-54.0050 mm)
  • Standard shaft range: 2.0077-2.0080 in. (50.9960-51.0030 mm)
  • Oil clearance range: 0.0004-0.0018 in. (0.0100-0.0460 mm)
  • Overall length max: 0.6550 in. (16.6400 mm)
  • Wall thickness max: 0.0587 in. (1.4910 mm)
  • Sealed Power manufacturing uses modern materials and ISO- and QS-certified processes

Detailed Description

This Sealed Power 8-4835A connecting rod bearing set is specified for standard-size applications in A-Series aluminum engines found in vehicles such as the Dodge Dakota, Dodge Ram 1500, Ram 1500, Chrysler Aspen, Dodge Durango, Jeep Commander, and Jeep Grand Cherokee. The bearing dimensions are listed to help match the rod journal and housing bore requirements during engine service, making it a direct-fit choice for rebuilders working on these engine families. This part cross-references BB501J and CB1784P for the same application.

What It Is Used For

  • Replacing worn connecting rod bearings during engine rebuilds
  • Restoring proper oil clearance in A-Series aluminum engines
  • Addressing rod bearing noise caused by wear or loss of clearance
  • Supporting correct crankshaft journal fit in standard-size applications
  • Repairing bottom-end engine wear in Dodge, Ram, Chrysler, and Jeep applications

Installation Notes and Tips

Verify rod journal size, housing bore, and oil clearance before installation. This part is for standard-size applications only, so confirm that the engine has not been machined for undersize or oversize bearings. Clean all bearing surfaces thoroughly, follow factory torque specifications, and measure clearances during assembly for accurate fitment. Fits 2011-2013 Ram 1500, N/A; Fits 2011 Ram Dakota, N/A; Fits 2000-2010 Dodge Dakota, N/A; Fits 2002-2010 Dodge Ram 1500, N/A; Fits 2007-2009 Chrysler Aspen, N/A; Fits 2000-2009 Dodge Durango, N/A; Fits 2007-2009 Jeep Commander, N/A; Fits 2007-2009 Jeep Grand Cherokee, N/A; Fits 1999-2005 Jeep Grand Cherokee, N/A.

Quality Assurance

Sealed Power states that its parts use innovative designs, advanced materials, and ISO- and QS-certified manufacturing to meet the demands of modern engines. Part number 8-4835A is built to those production standards for consistent engine service work.

Related reading

This part fits 50 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2013Ram15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2012Ram15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2011Ram15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2011RamDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2010DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2010DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009ChryslerAspen4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009JeepCommander4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2009JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008ChryslerAspen4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008JeepCommander4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2008JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007ChryslerAspen4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007JeepCommander4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2007JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2006DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2005JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2004JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2003JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002DodgeRam 15004.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2002JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2001JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000DodgeDakota4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000DodgeDurango4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
2000JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
1999JeepGrand Cherokee4.7LV8N/AFits standard size engine connecting rod bearings for A-Series aluminum engines.
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
8B7210ABB501JCB1784PCB1784P8CR8030SI
