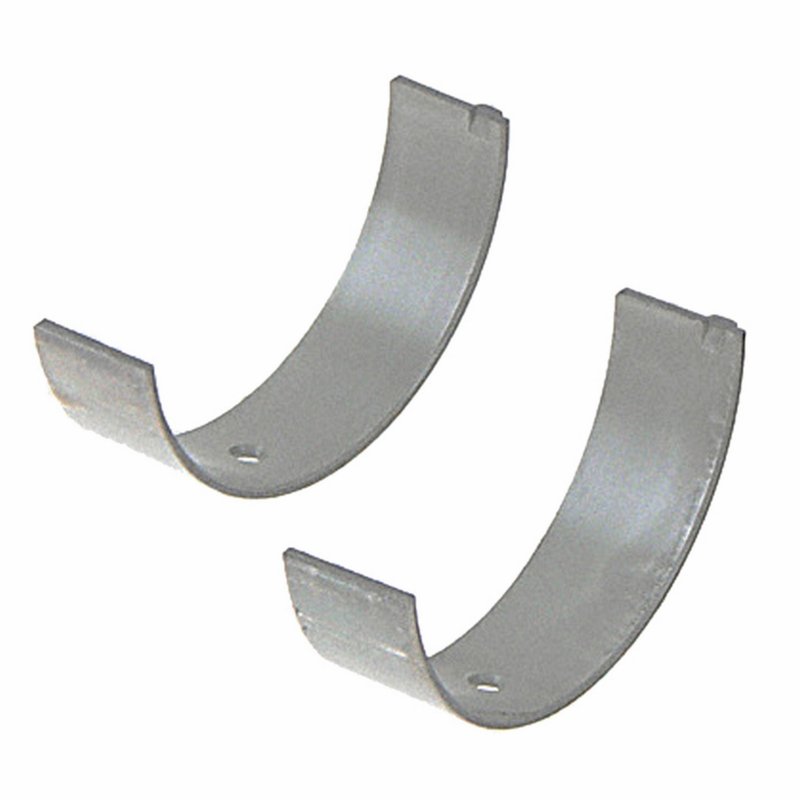

Sealed Power 9185CP Engine Connecting Rod Bearing

Overview of Sealed Power 9185CP Engine Connecting Rod Bearing

The Sealed Power 9185CP engine connecting rod bearing is engineered to meet precise specifications for reliable engine performance. Designed for applications requiring exact housing bore and oil clearance tolerances, this bearing supports smooth operation in various automotive engines, including select Chevrolet and Ford models.

• Housing Bore Max: 2.1680 inches (55.0670 mm)
• Housing Bore Min: 2.1675 inches (55.0550 mm)
• Oil Clearance Range: 0.0005 to 0.0021 inches (0.0130 to 0.0530 mm)
• Overall Length Max: 1.0000 inch (25.4000 mm)
• Wall Thickness Max: 0.0525 inches (1.3340 mm)
• Standard Shaft Diameter Range: 2.0615 to 2.0625 inches (52.3620 to 52.3880 mm)

Technical Specifications and Performance Details

The 9185CP connecting rod bearing from Sealed Power is manufactured to tight dimensional tolerances to ensure proper fit and function within the engine's connecting rod housing. The housing bore dimensions range narrowly between 2.1675 and 2.1680 inches, providing a precise fit that minimizes bearing movement and wear. Oil clearance is controlled between 0.0005 and 0.0021 inches, which is critical for maintaining an adequate lubricating film and preventing metal-to-metal contact under operating conditions. The bearing's wall thickness of up to 0.0525 inches contributes to durability while maintaining the necessary flexibility for engine dynamics. This part is compatible with engines requiring a standard shaft diameter between 2.0615 and 2.0625 inches, commonly found in Chevrolet small block and Ford V8 engines.

Applications and Problem Resolution

This engine connecting rod bearing is used primarily in the rotating assembly of internal combustion engines to reduce friction between the connecting rod and crankshaft. It addresses several common engine issues:

• Reduces wear caused by improper bearing clearance
• Prevents crankshaft scoring and damage
• Maintains oil film integrity under high load conditions
• Minimizes engine knocking related to bearing failure
• Supports consistent engine performance and longevity

Installation Notes and Tips

Proper installation of the Sealed Power 9185CP bearing is essential for optimal engine operation. Ensure the housing bore dimensions match the bearing specifications before installation. Use clean engine oil to lubricate the bearing surface during assembly. Verify oil clearance with plastigage or a micrometer to confirm it falls within the specified range of 0.0005 to 0.0021 inches. Avoid excessive force when seating the bearing to prevent deformation. Follow manufacturer torque specifications for connecting rod bolts to maintain proper bearing preload.

Quality Assurance and Warranty Information

Sealed Power bearings are manufactured under strict quality control standards to meet OEM specifications. The 9185CP bearing undergoes dimensional inspection and material testing to ensure durability and performance. While specific warranty details may vary, Sealed Power typically offers coverage against manufacturing defects. Consult product documentation or authorized distributors for warranty terms related to this engine connecting rod bearing.
