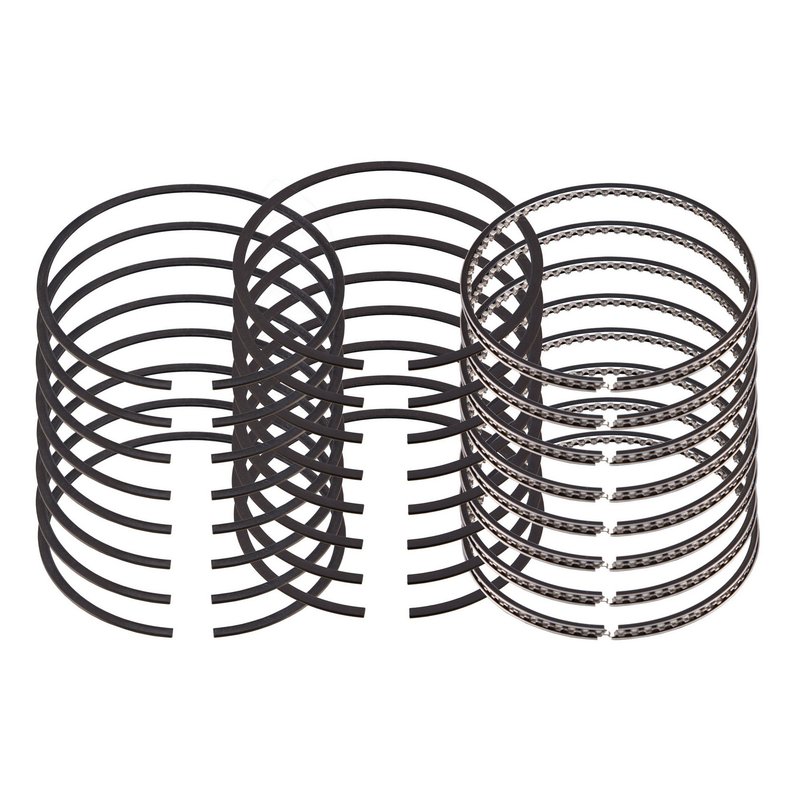

Sealed Power E-1005K Engine Piston Ring Set

Overview of Sealed Power E-1005K Engine Piston Ring Set

The Sealed Power E-1005K engine piston ring set is designed for reliable performance in Ford vehicles, specifically the F-150 and Mustang models. Engineered to meet standard bore size specifications, this set ensures proper sealing and oil control for eight-cylinder engines.

• Standard size piston ring set with 92.20 mm bore diameter
• Top ring made of steel with molybdenum coating for wear resistance
• Second ring constructed from grey iron with phosphate coating
• Reverse torsional face design on the second ring for improved sealing
• Barrel face design on the top ring to enhance ring-to-cylinder contact
• 3-piece flex vent oil ring design with 2.50 mm width for effective oil control
• Includes eight rings to accommodate 8-cylinder engines

Technical Details and Specifications

The E-1005K piston ring set features a precise 92.20 mm outside diameter and bore size, matching the standard size requirements for compatible Ford engines. The top ring has a 1.20 mm width and a radial wall thickness of 0.142 inches, crafted from steel with a molybdenum coating to reduce wear and friction. The second ring, also 1.20 mm wide, is made from grey iron with a phosphate coating and incorporates a reverse torsional face design to improve sealing efficiency. The oil ring is a 3-piece flex vent type with a 2.50 mm width, designed to maintain optimal oil control and reduce oil consumption. This set is not file fit, ensuring a precise factory fit without additional modification.

Compatible Vehicles and Applications

This piston ring set is compatible with Ford F-150 and Mustang models equipped with 8-cylinder engines requiring a 92.20 mm bore diameter. It is suitable for engine rebuilds or repairs where maintaining factory specifications is critical.

• Restores proper compression and sealing in worn or damaged cylinders
• Reduces oil consumption and blow-by gases
• Improves engine efficiency and performance consistency
• Addresses piston ring wear and cylinder scoring issues
• Supports engine rebuilds for Ford F-150 and Mustang V8 engines

Installation Notes and Tips

When installing the Sealed Power E-1005K piston ring set, ensure the cylinder bore is clean and within specification. Use proper ring gap measurement tools to verify clearances. The set is designed for direct replacement without filing or modification. Follow manufacturer torque specifications and installation procedures to avoid damage to the rings or cylinder walls.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-1005K set undergoes rigorous quality control to ensure consistent dimensions and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation for exact warranty terms.
