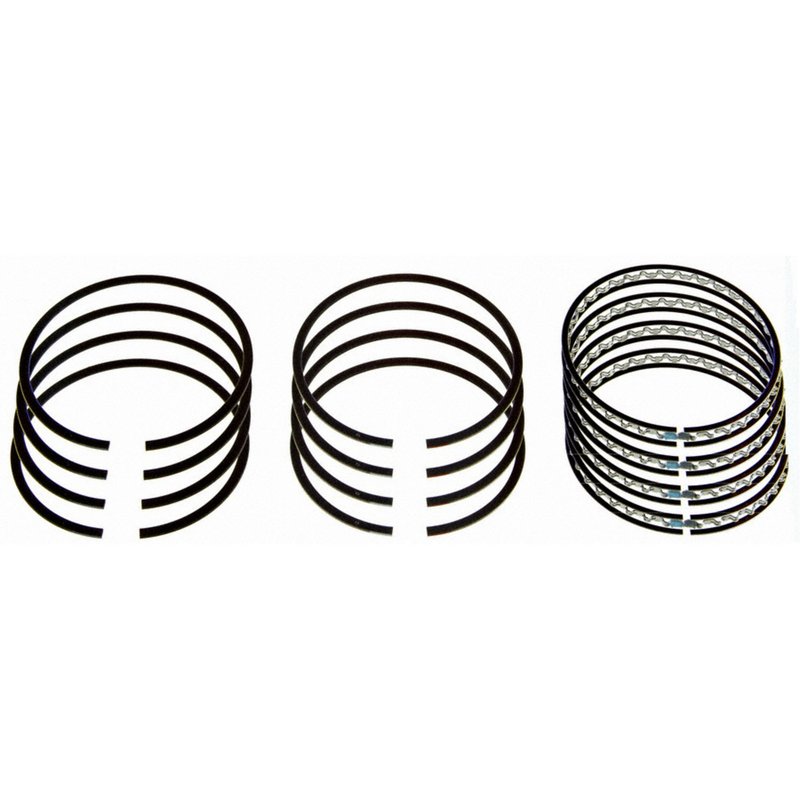

Sealed Power E-1008KC Engine Piston Ring Set

Sealed Power E-1008KC Piston Ring Set

Sealed Power E-1008KC is a standard-size engine piston ring set for 84.00 mm bores in select Nissan and Chevrolet 4-cylinder applications. It is built with a steel top ring with chrome, a grey iron second ring with phosphate coating, and a 3-piece flex vent oil ring for precise groove control and consistent sealing.

Key Features

• 84.00 mm bore diameter and outside diameter for standard-size applications
• Top ring material: steel with chrome face for wear resistance
• Second ring material: grey iron with phosphate coating and reverse torsional face design
• Oil ring design: 3-piece flex vent for oil control
• Ring groove widths: 1.2 mm top, 1.2 mm second, 2.0 mm oil
• Barrel-face top ring profile for improved cylinder wall contact
• File fit: No
• Fits 2007-2012 Nissan Sentra, N/A; 2007-2012 Nissan Versa, N/A; 2009-2014 Nissan Cube, N/A; 2013-2019 Nissan NV200, N/A; 2015-2016 Chevrolet City Express, N/A

Detailed Description

This Sealed Power piston ring set is engineered for 84.00 mm standard bores and 4-cylinder engines that use 1.2 x 1.2 x 2.0 mm ring groove widths. The chrome steel top ring, reverse torsional second ring, and flex vent oil ring are specified to support cylinder sealing, oil control, and stable ring operation in modern compact engines. This part number, E-1008KC, is listed for Nissan Sentra, Nissan Versa, Nissan Cube, Nissan NV200, and Chevrolet City Express applications with the confirmed fitment shown below.

Sealed Power parts are manufactured using advanced materials and ISO- and QS-certified processes to meet the demands of current engine designs. This part cross-references 2C5223 and 12033EN20D for the same application.

Common Uses

• Restoring compression loss caused by worn piston rings
• Addressing excessive oil consumption from ring wear or poor oil control
• Repairing blow-by that can affect idle quality and crankcase pressure
• Replacing damaged or stuck rings during an engine rebuild
• Returning proper sealing performance in 84.00 mm standard-bore engines

Installation Notes and Tips

Verify bore diameter, groove widths, and ring end gap before installation. Because this set is not file fit, confirm the cylinder bore and piston condition are within specification before assembly. Clean ring grooves thoroughly, follow the engine builder’s ring orientation and gap placement procedures, and use the vehicle service manual for final measurements and torque steps. Confirm fitment against the exact year, make, and model before ordering, especially for Nissan Sentra, Nissan Versa, Nissan Cube, Nissan NV200, and Chevrolet City Express applications.

Quality Assurance

Sealed Power uses leading-edge materials and ISO/QS-certified manufacturing methods to produce engine components that meet modern engine requirements. E-1008KC is a precision-engineered piston ring set built to support consistent sealing and oil control in the listed applications.
