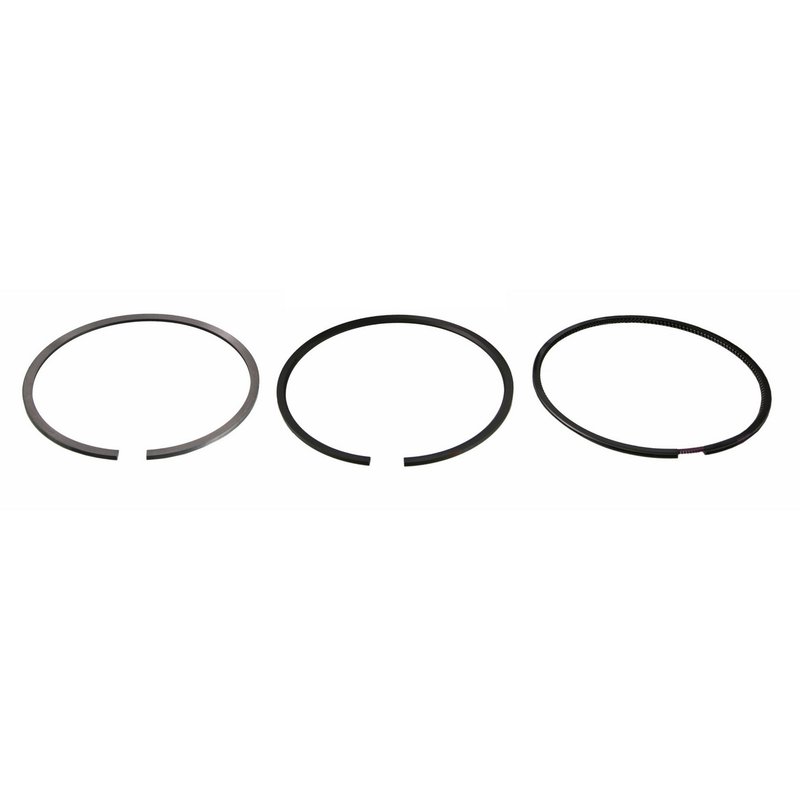

Sealed Power E-1026KC Engine Piston Ring Set

Sealed Power E-1026KC Piston Ring Set

Sealed Power E-1026KC is an engine piston ring set for 107.00 mm bore applications with a 0.50 mm oversize and groove widths of 3.0 x 2.5 x 3.5 mm. Built for 6-cylinder engines, it uses a steel top ring with chrome and ceramic face treatment, a cast iron second ring, and a beveled chrome oil ring for controlled sealing and oil management.

Compatible with Ram 2500 and Ram 3500 applications across 2007-2020 model years, this ring set matches the bore and groove dimensions used in listed 6.7L diesel engine configurations. The Sealed Power E-1026KC part number is also referenced by 2D5872, 2M5872, 4955366, 4955966, and MAHLE S42140 for the same application.

Key Features

• Part number: E-1026KC
• Oversize: 0.50 mm
• Bore diameter: 107.00 mm; outside diameter: 107.50 mm
• Ring groove widths: 3.0 x 2.5 x 3.5 mm
• Top ring: steel with chrome and ceramic face design
• Second ring: cast iron, tapered plain face design
• Oil ring: beveled chrome design
• File fit: No
• Fits 6-cylinder engine applications

Detailed Description

This Sealed Power piston ring set is engineered for precise cylinder sealing, combustion control, and oil control in Ram heavy-duty diesel applications. The ring package combines a chrome steel top ring, a cast iron second ring, and a beveled chrome oil ring to match the groove profile and bore size specified for the listed engines. Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce engine components that meet demanding service requirements.

Common Uses

• Restoring compression in worn cylinders
• Addressing oil consumption caused by ring wear
• Correcting blow-by and crankcase pressure issues
• Replacing rings during a rebuild on Ram 2500 and Ram 3500 engines
• Matching oversize bore service work at 107.00 mm

Installation Notes and Tips

Verify bore diameter, oversize, and ring groove widths before installation. This set is not file fit, so ring end gaps should be checked against the engine builder’s specifications rather than altered by filing. Clean piston ring grooves thoroughly and confirm the top, second, and oil ring orientations before assembly. Always confirm vehicle year, engine configuration, and bore size against the application listing for Ram 2500 and Ram 3500 models.

Quality Assurance

Sealed Power manufactures engine components with leading-edge materials and certified production processes to support consistent fit and performance. E-1026KC is built to the listed dimensional specifications for the confirmed Ram 2500 and Ram 3500 applications.
