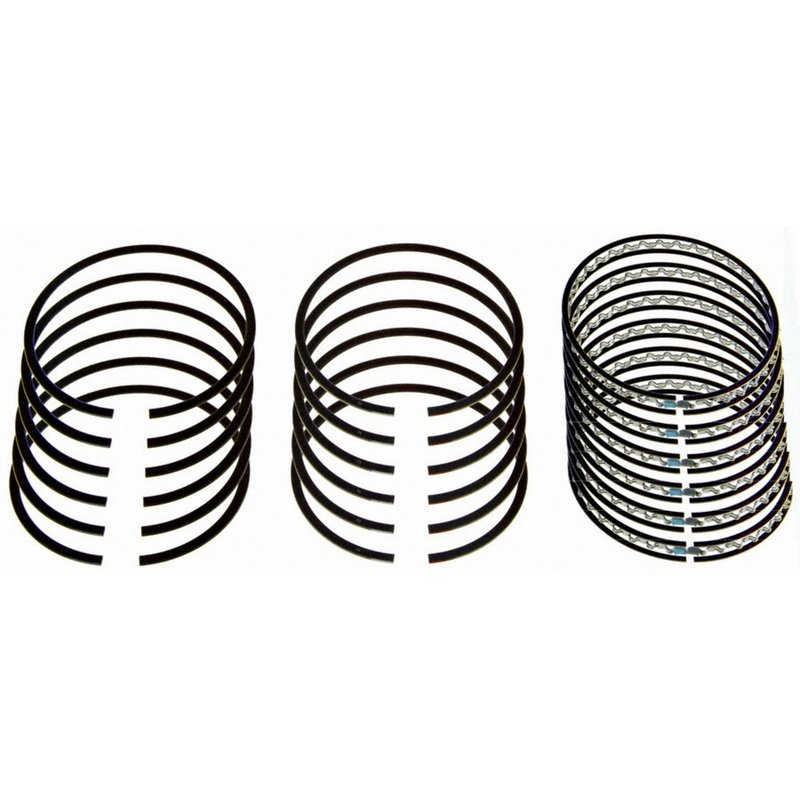

Sealed Power E-135X Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-135X

The Sealed Power Engine Piston Ring Set E-135X is designed for Chevrolet engines, specifically compatible with the Bel Air and Corvette models. This standard size piston ring set features precise dimensions and materials engineered to maintain optimal engine performance and durability.

• Outside diameter: 3.5625 inches
• Top ring width: 3/32 inch with reverse torsional face design
• Second ring width: 1/8 inch with taper face design
• Oil ring width: 3/16 inch, 3-piece flex vent design
• Top and second rings made from grey iron for durability
• Designed for 6-cylinder engines
• Standard bore diameter: 3.5625 inches

Detailed Product Description

The Sealed Power E-135X piston ring set is engineered to meet the specifications required for Chevrolet Bel Air and Corvette 6-cylinder engines. The set includes rings with a 3.5625-inch outside diameter and bore size, ensuring a precise fit for standard bore cylinders. The top ring features a reverse torsional face design, which helps reduce ring flutter and improve sealing under high load conditions. The second ring has a taper face design to assist in controlling oil consumption and maintaining compression. Both the top and second rings are constructed from grey iron, a material known for its wear resistance and strength.

The oil ring is a 3-piece flex vent design with a 3/16 inch width, optimized for effective oil control and distribution along the cylinder walls. The ring set groove widths measure 3/32 x 1/8 x 3/16 inches, matching the standard groove sizes for these engine types. This piston ring set is not file fit, meaning it is manufactured to standard dimensions for direct installation without additional fitting.

Applications and Problem Solving

• Restores proper compression in Chevrolet Bel Air and Corvette 6-cylinder engines
• Reduces oil consumption through effective oil ring design
• Minimizes ring flutter and improves sealing with reverse torsional top ring
• Addresses wear and tear on piston rings due to engine age or mileage
• Helps maintain engine efficiency and reduce blow-by gases

Installation Notes and Tips

Ensure the cylinder bore is clean and free of debris before installation. Verify that the groove widths match the ring set specifications (3/32 x 1/8 x 3/16 inches) for proper seating. Since this is a standard size, no file fitting is required. Carefully orient the rings according to the face design: the top ring with the reverse torsional face and the second ring with the taper face. Proper ring gap clearance should be checked to avoid engine damage.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-135X ring set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Sealed Power products typically come with a limited warranty against manufacturing defects.
