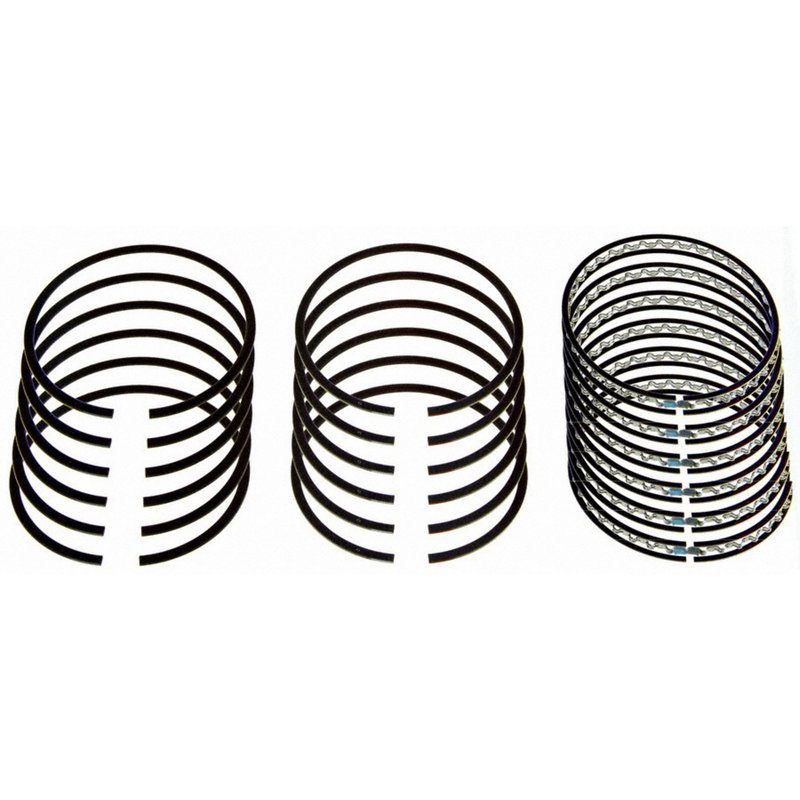

Sealed Power E-196X Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-196X

The Sealed Power Engine Piston Ring Set E-196X is designed for reliable performance in Chrysler, Dodge, and Plymouth vehicles. This set is engineered to meet standard size specifications with precise dimensions to ensure proper fit and function in compatible engines.

• Standard size piston ring set with 3.4000 inch outside diameter
• Includes 6-cylinder quantity rings for multi-cylinder engines
• Top and second rings made from durable grey iron material
• Reverse torsional face design on top and second rings for improved sealing
• 3-piece flex vent oil ring design with 3/16 inch width for effective oil control
• Ring groove widths of 5/64 x 5/64 x 3/16 inches for accurate fitment

Technical Specifications and Features

The E-196X piston ring set features a 3.4000 inch bore diameter and outside diameter, ensuring compatibility with engines requiring this standard size. The top and second rings utilize grey iron material, known for its wear resistance and durability under high temperatures. Both the top and second rings have a reverse torsional face design, which helps maintain optimal ring seal and reduces blow-by gases. The oil ring is a 3-piece flex vent design with a 3/16 inch width, providing efficient oil scraping and control to maintain proper lubrication without excessive oil consumption.

Compatible Vehicles and Applications

This piston ring set is compatible with a range of Chrysler, Dodge, and Plymouth models, including Aspen, B100 through B300 series, Challenger, Charger, D100 through D300 series, Dart, Fifth Avenue, Lancer, LeBaron, Monaco, Newport, New Yorker, PB150, PB250, Ramcharger, Town & Country, and W100 through W300 series trucks. The E-196X part number ensures correct fitment for engines with a 3.4000 inch bore diameter requiring a 6-cylinder piston ring set.

Common Engine Issues Addressed

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil ring sealing
• Increased blow-by gases leading to decreased engine efficiency
• Engine smoking from poor ring-to-cylinder wall contact
• Loss of power and performance related to ring wear

Installation Notes and Tips

Ensure the cylinder bore is clean and free of debris before installation. Verify the bore diameter matches the 3.4000 inch specification for proper ring fit. Use appropriate ring compressors and follow manufacturer torque specifications during piston installation. Avoid file fitting as this set is standard size and not designed for custom fitting. Proper ring end gap measurement is critical to prevent ring butting or excessive blow-by.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-196X set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation for exact warranty terms.
