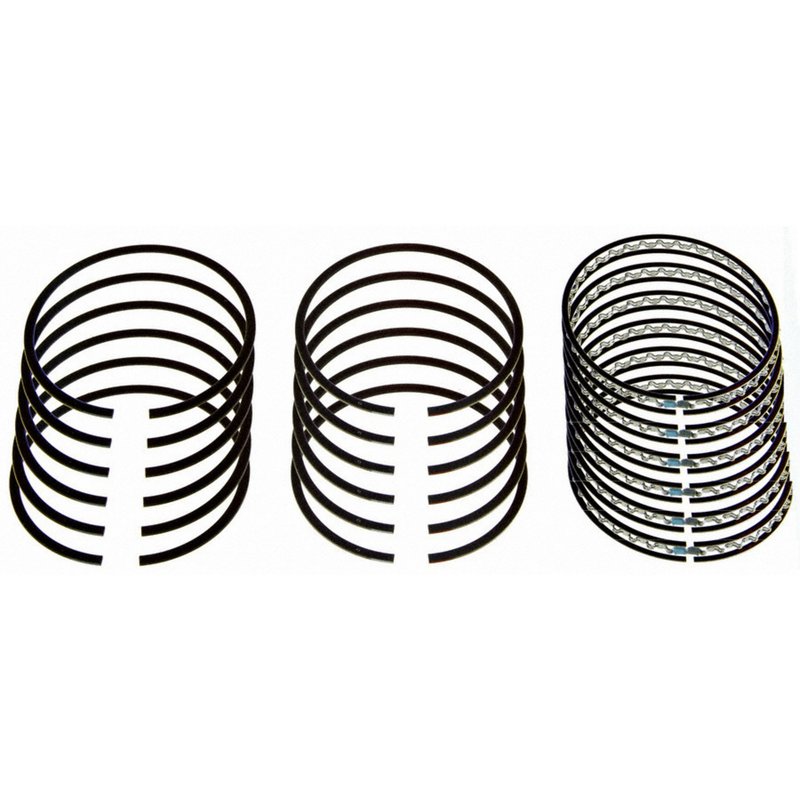

Sealed Power E-234X Engine Piston Ring Set

Sealed Power Engine Piston Ring Set Overview

The Sealed Power E-234X engine piston ring set is designed for reliable performance in a range of GM and Jeep vehicles. Engineered with precision, this set supports six-cylinder engines with a 3.8750 inch bore diameter, ensuring proper sealing and oil control for optimal engine function.

• Standard size piston ring set with 3.8750 inch outside diameter
• Top ring made of grey iron with phosphate coating and barrel face design
• Second ring features grey iron with phosphate coating and reverse torsional face
• Oil ring is a 3-piece flex vent design with 3/16 inch width
• Compatible with 6-cylinder engines from Buick, Chevrolet, GMC, Jeep, Oldsmobile, and Pontiac

Technical Specifications and Design Features

The E-234X piston ring set includes three rings per cylinder with groove widths of 5/64 inch for the top and second rings, and 3/16 inch for the oil ring. The top ring has a radial wall thickness of 0.182 inches and a barrel face design to improve sealing under combustion pressure. The second ring uses a reverse torsional face to reduce blow-by and maintain compression. The oil ring’s 3-piece flex vent design enhances oil control and reduces oil consumption. All rings are made from grey iron with phosphate coatings to resist wear and corrosion.

Compatible Vehicles and Applications

This piston ring set is compatible with a variety of six-cylinder engines found in popular models such as the Chevrolet Camaro, GMC Sierra C1500, Jeep Grand Cherokee, Buick Skylark, Pontiac Firebird, and Oldsmobile Cutlass Supreme. It is suitable for engines in trucks, SUVs, and passenger cars including the Chevrolet C10 Suburban, GMC K1500, Jeep Wrangler TJ, and Pontiac Catalina.

• Restores proper compression and reduces engine blow-by
• Improves oil control to prevent excessive oil consumption
• Addresses worn or damaged piston rings causing loss of power
• Helps reduce exhaust smoke related to ring failure
• Supports engine rebuilds and maintenance for 6-cylinder engines

Installation Notes and Tips

Installation of the Sealed Power E-234X piston ring set requires careful attention to ring orientation and proper gap setting. The top ring’s barrel face should be installed facing the combustion chamber, and the second ring’s reverse torsional face must be positioned correctly to ensure sealing efficiency. The oil ring’s three-piece flex vent design should be assembled according to manufacturer instructions. This set is standard size and does not require file fitting. Always verify bore diameter compatibility (3.8750 inches) before installation.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM specifications for durability and performance. The E-234X set undergoes strict quality control to ensure consistent dimensions and coating integrity. While specific warranty details are not provided, Sealed Power products typically come with limited warranties covering manufacturing defects. Using this piston ring set helps maintain engine reliability and longevity when installed correctly.
