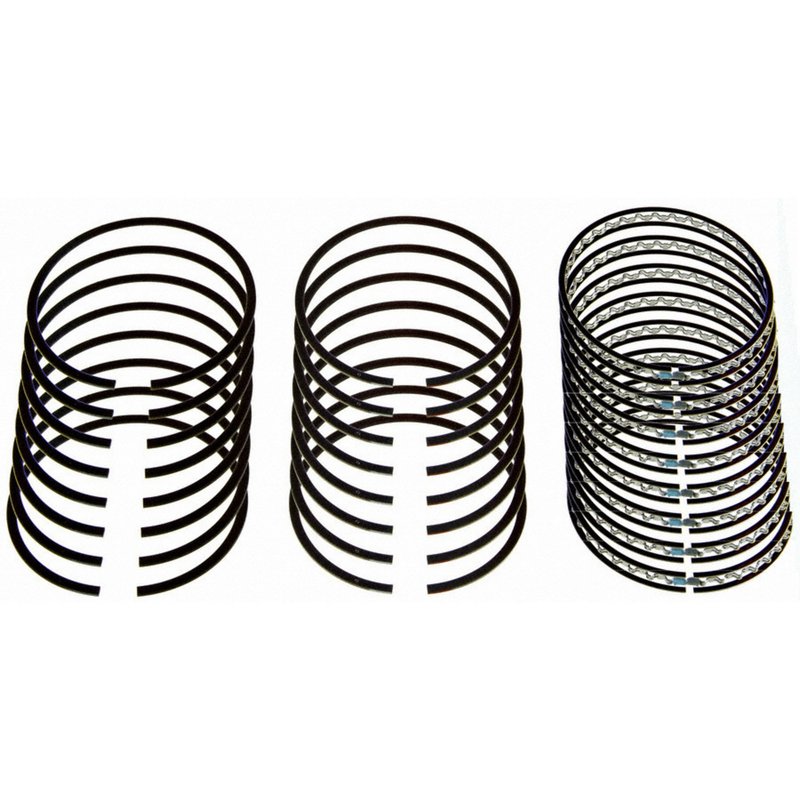

Sealed Power E-377X Engine Piston Ring Set
| Brand | Sealed Power E-377X |
|---|---|
| 2nd Ring Face Design | Reverse Torsional |
| 2nd Ring Material | Grey Iron w/Phosphate Coating |
| 2nd Ring Width | 5/64 |
| 2nd Ring Width (in) | 5/64 |
| Bore Diameter | 4.0000 |
| Bore Size (in) | 4.0000 |
| Cylinder Quantity | 8 |
| Oil Ring Width | 3/16 |
| Oil Ring Width (in) | 3/16 |
| Outside Diameter | 4.0000 |
| Outside Diameter (In) | 4.0000 |
| Radial Wall Thickness - Top (in) | 0.191 |
| Ring Set Groove Widths (in) | 5/64 x 5/64 x 3/16 |
| Short Circuit Protection | 3 Piece Flex Vent |
| Standard Size | Standard Size |
| Top Ring Face Design | Barrel Face |
| Top Ring Material | Grey Iron w/Phosphate |
| Top Ring Radial Wall Thickness | 0.191 |
| Top Ring Width | 5/64 |
| Top Ring Width (in) | 5/64 |
| Fits | Chevrolet, GMC, Pontiac, Cadillac, Buick, and Oldsmobile · 353 vehicles |
Standard size. Fits a 4.0000 bore for a straightforward piston ring set replacement.
Phosphate-coated grey iron. Top and second rings use durable materials for dependable sealing performance.
3-piece flex vent oil ring. Helps control oil with a design that promotes efficient ring function.
Cross-references Bosch BC1818, DENSO Auto Parts 5615 and Gates 51476 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Sealed Power E-377X Engine Piston Ring Set
Sealed Power E-377X is a standard-size engine piston ring set for 4.0000 in. bores and 8-cylinder applications. It uses a barrel-face top ring, reverse torsional second ring, and a 3-piece flex vent oil ring design to support consistent sealing in compatible Chevrolet, GMC, Pontiac, Buick, Cadillac, and Oldsmobile V8 engines.
Key Features
- Standard size piston ring set for 4.0000 in. bore diameter
- Top ring material: grey iron with phosphate coating
- Second ring material: grey iron with phosphate coating
- Top ring face design: barrel face
- Second ring face design: reverse torsional
- Oil ring design: 3-piece flex vent
- Ring groove widths: 5/64 x 5/64 x 3/16 in.
- File fit: No
- Built for 8-cylinder engine applications
Detailed Description
Sealed Power E-377X is an engine piston ring set engineered for standard 4.0000-inch bore applications that require 5/64-inch top and second ring grooves with a 3/16-inch oil ring groove. The grey iron ring construction with phosphate coating helps support wear resistance and stable seating during break-in, while the barrel-face top ring and reverse torsional second ring are specified for controlled cylinder sealing. This part cross-references MAHLE 51476CP and Bosch BC1818 for the same application. It is a direct fit for many Chevrolet C1500, GMC K1500, and Pontiac Firebird V8 engine combinations listed in the fitment data, along with additional Buick, Cadillac, Oldsmobile, and GMC truck applications.
What It Helps Address
- Low compression caused by worn piston rings
- Excessive oil consumption from ring wear or poor sealing
- Blow-by related to tired cylinder sealing surfaces
- Smoke from oil control issues in the ring pack
- Loss of engine efficiency in standard-bore rebuilds
Installation Notes and Tips
Verify bore diameter, ring groove widths, and piston specifications before installation. This set is not file fit, so ring end gaps should be checked against the engine builder’s specifications rather than altered by filing. Confirm the shallow oil ring groove requirement noted in the fitment data for Chevrolet and GMC V8 applications. For best results, inspect cylinder wall condition, piston ring lands, and groove cleanliness during engine assembly.
Quality Assurance
Sealed Power states that its parts are manufactured with advanced materials and produced in ISO- and QS-certified facilities to meet the demands of modern engines. The E-377X reflects that manufacturing approach with application-specific ring geometry and standard-size dimensions for rebuild work.
Fitment
- Fits 1988-1995 Chevrolet C1500, N/A
- Fits 1992-1995 Chevrolet C1500 Suburban, N/A
- Fits 1988-1995 Chevrolet C2500, N/A
- Fits 1992-1995 Chevrolet C2500 Suburban, N/A
- Fits 1988-1995 Chevrolet C3500, N/A
- Fits 1987-1995 Chevrolet G20, N/A
- Fits 1987-1995 Chevrolet G30, N/A
- Fits 1988-1995 Chevrolet K1500, N/A
- Fits 1992-1995 Chevrolet K1500 Suburban, N/A
- Fits 1988-1995 Chevrolet K2500, N/A
- Fits 1992-1995 Chevrolet K2500 Suburban, N/A
- Fits 1988-1995 Chevrolet K3500, N/A
- Fits 1987-1995 Chevrolet P30, N/A
- Fits 1995 Chevrolet Tahoe, N/A
- Fits 1988-1995 GMC C1500, N/A
- Fits 1992-1995 GMC C1500 Suburban, N/A
- Fits 1988-1995 GMC C2500, N/A
- Fits 1992-1995 GMC C2500 Suburban, N/A
- Fits 1988-1995 GMC C3500, N/A
- Fits 1987-1995 GMC G2500, N/A
- Fits 1987-1995 GMC G3500, N/A
- Fits 1988-1995 GMC K1500, N/A
- Fits 1992-1995 GMC K1500 Suburban, N/A
- Fits 1988-1995 GMC K2500, N/A
- Fits 1992-1995 GMC K2500 Suburban, N/A
- Fits 1988-1995 GMC K3500, N/A
- Fits 1987-1995 GMC P3500, N/A
- Fits 1992-1995 GMC Yukon, N/A
- Fits 1987-1994 Chevrolet Blazer, N/A
- Fits 1987-1993 Chevrolet G10, N/A
- Fits 1987-1993 GMC G1500, N/A
- Fits 1987-1992 Chevrolet Camaro, N/A
- Fits 1987-1992 Pontiac Firebird, N/A
- Fits 1979 Pontiac Firebird, N/A
- Fits 1977 Pontiac Firebird, N/A
- Fits 1986-1991 Chevrolet Corvette, N/A
- Fits 1989-1991 Chevrolet R1500 Suburban, N/A
- Fits 1989-1991 Chevrolet R2500 Suburban, N/A
- Fits 1989-1991 Chevrolet R3500, N/A
- Fits 1989-1991 Chevrolet V1500 Suburban, N/A
- Fits 1989-1991 Chevrolet V2500 Suburban, N/A
- Fits 1989-1991 Chevrolet V3500, N/A
- Fits 1987-1991 GMC Jimmy, N/A
- Fits 1987-1991 GMC R1500 Suburban, N/A
- Fits 1987-1991 GMC R2500 Suburban, N/A
- Fits 1987-1991 GMC R3500, N/A
- Fits 1987-1991 GMC V1500 Suburban, N/A
- Fits 1987-1991 GMC V2500 Suburban, N/A
- Fits 1987-1991 GMC V3500, N/A
- Fits 1990 Cadillac Brougham, N/A
- Fits 1986-1990 Chevrolet Caprice, N/A
- Fits 1987-1989 Chevrolet P20, N/A
- Fits 1989 Chevrolet R2500, N/A
- Fits 1987-1989 GMC P2500, N/A
- Fits 1987-1989 GMC R2500, N/A
- Fits 1987-1988 Chevrolet R10 Suburban, N/A
- Fits 1987-1988 Chevrolet R20, N/A
- Fits 1987-1988 Chevrolet R20 Suburban, N/A
- Fits 1987-1988 Chevrolet R30, N/A
- Fits 1987-1988 Chevrolet V10 Suburban, N/A
- Fits 1987-1988 Chevrolet V20 Suburban, N/A
- Fits 1987-1988 Chevrolet V30, N/A
- Fits 1987 Chevrolet R10, N/A
- Fits 1987 Chevrolet V10, N/A
- Fits 1987 Chevrolet V20, N/A
- Fits 1987 GMC R1500, N/A
- Fits 1987 GMC V1500, N/A
- Fits 1987 GMC V2500, N/A
- Fits 1980-1981 Pontiac Firebird, N/A
- Fits 1980-1981 Pontiac Grand LeMans, N/A
- Fits 1980-1981 Pontiac LeMans, N/A
- Fits 1980 Buick Century, N/A
- Fits 1980 Buick LeSabre, N/A
- Fits 1980 Buick Regal, N/A
- Fits 1980 Pontiac Bonneville, N/A
- Fits 1980 Pontiac Catalina, N/A
- Fits 1980 Pontiac Grand Am, N/A
- Fits 1980 Pontiac Grand Prix, N/A
- Fits 1979 Buick Century, N/A
- Fits 1977-1979 Buick LeSabre, N/A
- Fits 1979 Buick Regal, N/A
- Fits 1979 Oldsmobile Delta 88, N/A
- Fits 1977-1979 Pontiac Bonneville, N/A
- Fits 1977-1979 Pontiac Catalina, N/A
- Fits 1978-1979 Pontiac Grand Am, N/A
- Fits 1979 Pontiac Grand LeMans, N/A
- Fits 1977 Pontiac Grand LeMans, N/A
- Fits 1977-1979 Pontiac Grand Prix, N/A
- Fits 1979 Pontiac LeMans, N/A
- Fits 1977 Pontiac LeMans, N/A
- Fits 1977 Buick Skylark, N/A
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | Chevrolet | Tahoe | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1995 | GMC | Yukon | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1994 | GMC | Yukon | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1993 | GMC | Yukon | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | C1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | C2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | K1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | K2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | GMC | Yukon | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1992 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Chevrolet | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | Jimmy | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | GMC | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1991 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Cadillac | Brougham | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | Caprice | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Chevrolet | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | Jimmy | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | GMC | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1990 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | Caprice | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | P20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | R2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Chevrolet | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | Jimmy | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | P2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | R2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | GMC | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1989 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | Caprice | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | P20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | R10 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | R20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | R20 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | R30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | V10 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | V20 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Chevrolet | V30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | C1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | C2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | C3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | Jimmy | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | K1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | K2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | K3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | P2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | R2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | GMC | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1988 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | Blazer | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | Camaro | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | Caprice | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | G10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | G20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | G30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | P20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | P30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | R10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | R10 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | R20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | R20 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | R30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | V10 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | V10 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | V20 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | V20 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Chevrolet | V30 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | G1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | G2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | G3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | Jimmy | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | P2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | P3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | R1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | R1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | R2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | R2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | R3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | V1500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | V1500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | V2500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | V2500 Suburban | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | GMC | V3500 | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1987 | Pontiac | Firebird | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1986 | Chevrolet | Caprice | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1986 | Chevrolet | Corvette | 5.7L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1981 | Pontiac | Firebird | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1981 | Pontiac | Grand LeMans | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1981 | Pontiac | LeMans | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Buick | Century | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Buick | LeSabre | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Buick | Regal | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Bonneville | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Catalina | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Firebird | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Grand Am | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Grand LeMans | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | Grand Prix | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1980 | Pontiac | LeMans | 4.9L | V8 | N/A | Economy engine piston ring set with ductile top and second rings, groove widths of 5/64in and 3/16in, standard fitment. |
| 1979 | Buick | Century | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Buick | LeSabre | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Buick | Regal | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Oldsmobile | Delta 88 | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Bonneville | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Catalina | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Firebird | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Grand Am | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Grand LeMans | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | Grand Prix | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1979 | Pontiac | LeMans | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1978 | Buick | LeSabre | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1978 | Pontiac | Bonneville | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1978 | Pontiac | Catalina | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1978 | Pontiac | Grand Am | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1978 | Pontiac | Grand Prix | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Buick | LeSabre | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Buick | Skylark | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | Bonneville | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | Catalina | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | Firebird | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | Grand LeMans | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | Grand Prix | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| 1977 | Pontiac | LeMans | 4.9L | V8 | N/A | 0.165 (in) Shallow Oil Ring Groove, Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 5/64 (in), 5/64 (in), 3/16 (in), Standard |
| No rows match your filter. | ||||||
