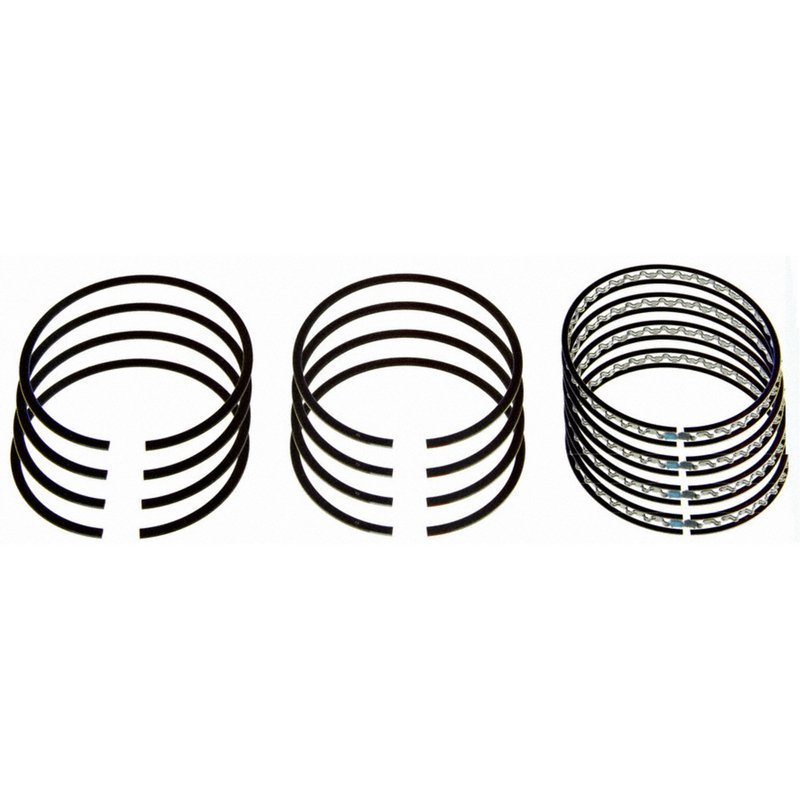

Sealed Power E-442X Engine Piston Ring Set

Brand Sealed Power E-442X
2nd Ring Face Design Reverse Torsional
2nd Ring Material Grey Iron
2nd Ring Width 1.50
2nd Ring Width (mm) 1.50
Bore Diameter 96.00
Bore Size (mm) 96.00
Cylinder Quantity 4
Oil Ring Width 4.00
Oil Ring Width (mm) 4.00
Outside Diameter 96.00
Outside Diameter (mm) 96.00
Ring Set Groove Widths (mm) 1.5 x 1.5 x 4.0
Short Circuit Protection 3 Piece Flex Vent
Standard Size Standard Size
Top Ring Face Design Reverse Torsional
Top Ring Material Grey Iron
Top Ring Width 1.50
Top Ring Width (mm) 1.50
Fits Ford and Mercury · 37 vehicles

Standard-size set. Sized for a 96 mm bore with 1.5 x 1.5 x 4.0 ring widths.

Reverse torsional faces. Helps the rings seal more effectively under demanding engine conditions.

Grey iron construction. Built with durable ring materials for modern engine use.

Cross-references Hastings Piston Rings 5761, 442X and 51495CP for the same application. See all 3.

$65.15Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $65.15
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Sealed Power E-442X Piston Ring Set

Sealed Power E-442X is an engine piston ring set built for 96.00 mm bore applications with standard sizing and reverse torsional ring faces. It is specified for a range of Ford and Mercury 4-cylinder applications, including Ford Ranger, Mustang, Aerostar, and LTD fitments where the groove widths match 1.5 x 1.5 x 4.0 mm.

Key Features

  • 96.00 mm bore diameter and outside diameter for standard-size engine builds
  • Top ring and second ring widths: 1.50 mm
  • Oil ring width: 4.00 mm with 3-piece Flex Vent design
  • Reverse torsional face design on both top and second rings
  • Grey iron construction for the top and second rings
  • File fit: No
  • Fits Ford Ranger, Mustang, Aerostar, LTD, and select Mercury Capri, Marquis, Fairmont, and Zephyr applications
  • Part number E-442X for catalog and cross-reference lookup

Detailed Description

Sealed Power E-442X piston rings are engineered for engines that require a 96.00 mm bore and standard ring dimensions. The reverse torsional face design helps the rings seat properly against the cylinder wall, while the grey iron top and second rings provide the material profile commonly used in service and rebuild applications. The 3-piece Flex Vent oil ring design supports oil control in compatible cylinder block setups with 1.5 x 1.5 x 4.0 mm groove widths.

This part cross-references Monroe Shocks & Struts (e.g., 5761) for the same application. Sealed Power E-442X is a direct catalog match for long-tail searches such as Ford Ranger 96mm piston ring set, Mustang standard bore ring set, and Mercury Capri 1.5mm ring groove replacement.

What It Helps Address

  • Excessive oil consumption from worn ring sealing surfaces
  • Low compression caused by ring wear or loss of cylinder sealing
  • Blow-by related to tired piston rings
  • Oil control issues in standard-bore rebuilds
  • Restoration work on Ford and Mercury engines with matching groove widths

Installation Notes and Tips

Confirm bore diameter, ring groove widths, and cylinder count before installation. This set is not file fit, so ring end gaps should be checked against the engine builder’s specifications rather than trimmed for fit. Verify that the engine uses 1.5 mm top and second ring grooves with a 4.0 mm oil ring groove, and match the application to the listed Ford Ranger, Mustang, Aerostar, LTD, Capri, Marquis, Fairmont, or Zephyr fitment data.

  • Fits 1985-1994 Ford Ranger, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983-1993 Ford Mustang, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1986-1987 Ford Aerostar, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983-1986 Ford LTD, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983-1986 Mercury Capri, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983-1986 Mercury Marquis, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983 Ford Fairmont, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
  • Fits 1983 Mercury Zephyr, N/A β€” Ductile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard

Quality Assurance

Sealed Power states that its parts use modern designs, advanced materials, and ISO- and QS-certified manufacturing processes to meet the demands of current engine service standards. E-442X follows that manufacturing approach for rebuilders and technicians seeking a standard-size piston ring set with defined bore and groove specifications.

This part fits 37 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
1994FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1993FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1993FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1992FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1992FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1991FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1991FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1990FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1990FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1989FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1989FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1988FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1988FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1987FordAerostar2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1987FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1987FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986FordAerostar2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986FordLTD2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986MercuryCapri2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1986MercuryMarquis2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1985FordLTD2.3LL4GASN/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1985FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1985FordRanger2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1985MercuryCapri2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1985MercuryMarquis2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1984FordLTD2.3LL4GASN/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1984FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1984MercuryCapri2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1984MercuryMarquis2.3LL4GASN/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983FordFairmont2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983FordLTD2.3LL4GASN/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983FordMustang2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983MercuryCapri2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983MercuryMarquis2.3LL4GASN/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
1983MercuryZephyr2.3LL4—N/ADuctile 2nd Ring, Economy, Ductile Top Ring, Ring Groove Widths: 1.5mm, 1.5mm, 4.0mm, Standard
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Hastings Piston Rings — 5761442X51495CP
