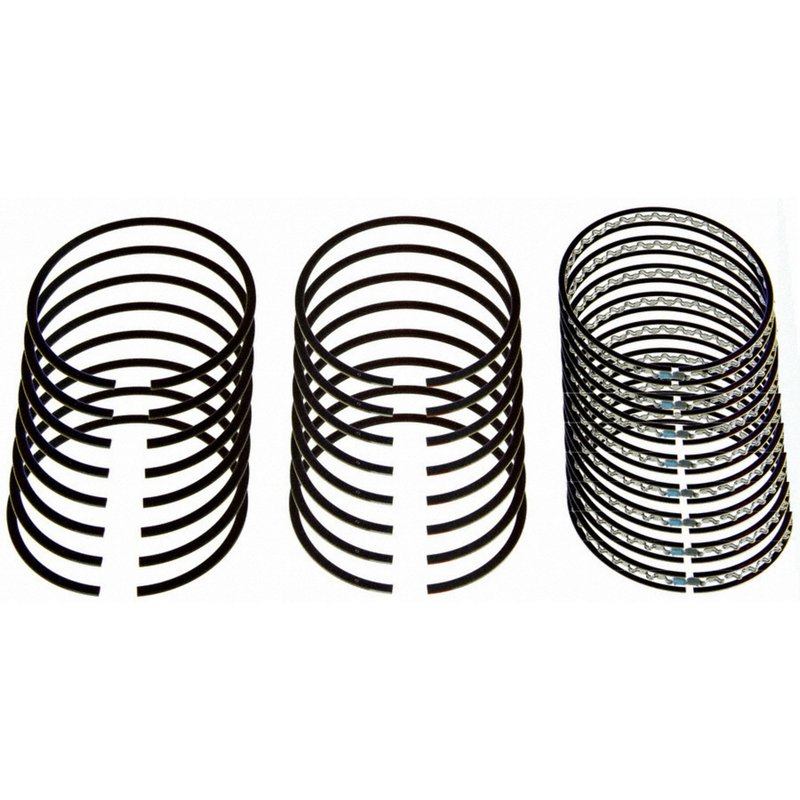

Sealed Power E-509K Engine Piston Ring Set
| Brand | Sealed Power E-509K |
|---|---|
| 2nd Ring Face Design | Reverse Torsional |
| 2nd Ring Material | Grey Iron |
| 2nd Ring Width | 2.00 |
| 2nd Ring Width (mm) | 2.00 |
| Bore Diameter | 104.40 |
| Bore Size (mm) | 104.40 |
| Cylinder Quantity | 8 |
| Oil Ring Width | 3.50 |
| Oil Ring Width (mm) | 3.50 |
| Outside Diameter | 104.40 |
| Outside Diameter (mm) | 104.40 |
| Ring Set Groove Widths (mm) | 3.0 x 2.0 x 3.5 |
| Short Circuit Protection | 2 Piece Conformatic |
| Standard Size | Standard Size |
| Top Ring Face Design | Barrel Face |
| Top Ring Material | Steel w/Moly |
| Top Ring Width | 3.00 |
| Top Ring Width (mm) | 3.00 |
| Fits | Ford · 32 vehicles |
Standard size. Direct-fit piston ring set for a precise engine rebuild.
Moly-faced top ring. Improves wear resistance and helps maintain a strong seal.
Conformatic oil ring. Two-piece design helps control oil for cleaner operation.
Cross-references Hastings Piston Rings 2M4741, MAHLE 41548 and 509K for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Sealed Power E-509K Piston Ring Set
Sealed Power E-509K is a standard-size engine piston ring set for 104.40 mm bores with a 3.0 x 2.0 x 3.5 mm groove width layout. It uses a steel top ring with moly, a grey iron second ring, and a 2-piece Conformatic oil ring design for Ford V8 applications that require precise ring groove matching.
Compatible With 1988-1994 Ford E-250 Econoline Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, F-250, and F-350 applications listed below. This part cross-references MAHLE 41548 for the same application.
Key Features
- Part number: E-509K
- Engine piston ring set for 8-cylinder applications
- 104.40 mm bore diameter and outside diameter
- Top ring: steel with moly face for wear resistance
- Second ring: grey iron with reverse torsional face design
- Oil ring: 2-piece Conformatic design
- Standard size, non-file-fit configuration
- Ring groove widths: 3.0 x 2.0 x 3.5 mm
Detailed Description
Sealed Power E-509K is built for Ford truck and van engines that use a 104.40 mm bore and standard ring sizing. The ring package combines a barrel-face top ring, reverse torsional second ring, and a 2-piece Conformatic oil ring to match the groove dimensions and sealing requirements called out for these applications. For rebuild work on a Ford E-350 Econoline, F-250, or F-350, the correct ring profile and groove width are critical to compression control and oil management.
Sealed Power uses modern materials and ISO- and QS-certified manufacturing processes to produce engine components that meet demanding engine service requirements. The E-509K is a direct-fit ring set for the listed Ford E-250 Econoline Club Wagon, E-350 Econoline Club Wagon, and related 1988-1994 Ford V8 applications, with serial-number-specific coverage noted for some 1988 models.
What It Helps Fix
- Low compression caused by worn piston rings
- Excessive oil consumption from ring wear or poor sealing
- Blow-by and crankcase pressure buildup
- Smoke from worn oil control rings
- Compression loss after engine wear in high-mileage Ford truck and van engines
Installation Notes and Tips
- Verify piston groove widths before installing the ring set.
- Confirm bore diameter is 104.40 mm and that the engine uses standard-size rings.
- Check the 1988 engine serial number note before ordering for early-production applications.
- Follow the listed groove width stack: 3.0 mm top, 2.0 mm second, 3.5 mm oil.
- Measure ring end gap and piston groove clearance during engine assembly.
Quality Assurance
Sealed Power manufactures engine parts using leading-edge materials and certified production systems to support consistent fit and performance. The E-509K is engineered for the specified Ford applications and ring dimensions, with OE-style construction details that align with rebuild requirements for 1988-1994 Ford E-250 Econoline Club Wagon, E-350 Econoline, F-250, and F-350 engines.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1994 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1994 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1994 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1994 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1993 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1993 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1993 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1993 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1992 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1992 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1992 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1992 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1991 | Ford | E-250 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1991 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1991 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1991 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1991 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1990 | Ford | E-250 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1990 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1990 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1990 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1990 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1989 | Ford | E-250 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1989 | Ford | E-350 Econoline | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1989 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1989 | Ford | F-250 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1989 | Ford | F-350 | 7.3L | V8 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1988 | Ford | E-250 Econoline Club Wagon | 7.3L | V8 | N/A | From Engine Serial Number 598754; Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1988 | Ford | E-350 Econoline | 7.3L | V8 | N/A | From Engine Serial Number 598754; Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1988 | Ford | E-350 Econoline Club Wagon | 7.3L | V8 | N/A | From Engine Serial Number 598754; Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1988 | Ford | F-250 | 7.3L | V8 | N/A | From Engine Serial Number 598754; Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
| 1988 | Ford | F-350 | 7.3L | V8 | N/A | From Engine Serial Number 598754; Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 3.0 (mm) , 2.0 (mm) , 3.5 (mm); Check Piston Grooving Before Supplying Ring Set; 2nd Ring gap is 0.060 (in) 0.075 like OE Ring; Standard |
