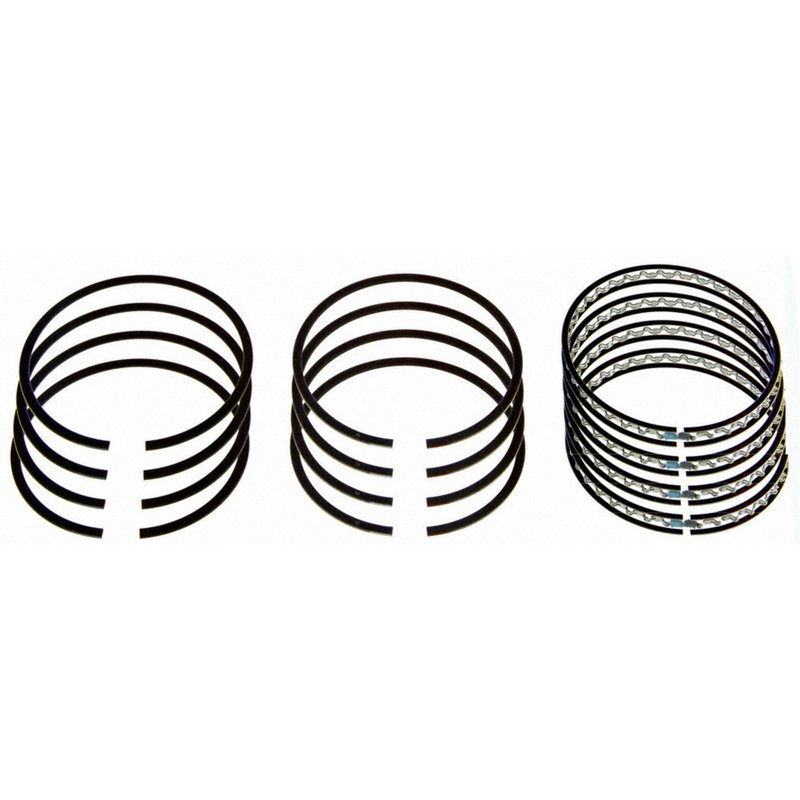

Sealed Power E-510X Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-510X

The Sealed Power E-510X engine piston ring set is designed for reliable performance in select Mazda and Toyota vehicles. Engineered to meet standard bore size specifications, this set supports efficient engine operation in models such as the Mazda B2600 and Toyota 4Runner.

• Standard size piston ring set with 92.00 mm bore diameter
• Includes 4 rings for 4-cylinder engines
• Top and second rings made of durable grey iron
• Reverse torsional face design on top and second rings for improved sealing
• 3-piece flex vent oil ring design with 4.00 mm width for effective oil control
• Ring groove widths of 1.5 mm (top and second) and 4.0 mm (oil ring)

Technical Specifications and Features

The E-510X piston ring set features a precise 92.00 mm outside and bore diameter, suitable for standard size cylinder bores. The set includes four rings designed for 4-cylinder engines, making it compatible with various Mazda and Toyota models including the Celica, MPV, and Pickup. Both the top and second rings utilize grey iron material, known for its wear resistance and durability under high temperatures. The reverse torsional face design on the top and second rings enhances sealing efficiency by maintaining ring tension and reducing blow-by gases.

The oil ring is a 3-piece flex vent design with a 4.00 mm width, engineered to provide effective oil scraping and control, reducing oil consumption and maintaining optimal lubrication. Groove widths are precisely matched to ring widths (1.5 mm for top and second rings, 4.0 mm for oil ring) to ensure proper fit and function without the need for file fitting.

Compatible Vehicles and Applications

This piston ring set is compatible with the following makes and models:

• Mazda B2600
• Toyota 4Runner
• Toyota Celica
• Toyota MPV
• Toyota Pickup

It is designed for use in 4-cylinder engines with a 92 mm bore size, making it suitable for engine rebuilds or repairs requiring standard size piston rings.

Common Engine Issues Addressed

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil ring sealing
• Blow-by gases leading to decreased engine performance
• Increased emissions from poor ring sealing
• Engine noise related to piston ring wear

Installation Notes and Tips

• Verify engine bore diameter is 92.00 mm before installation
• Ensure cylinder walls are properly honed and cleaned
• Install rings carefully to avoid damage, following manufacturer orientation
• Check ring end gaps and clearances according to engine specifications
• Use proper tools to compress rings during piston installation

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-510X set is produced with precision materials and design features to ensure consistent engine sealing and longevity. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
