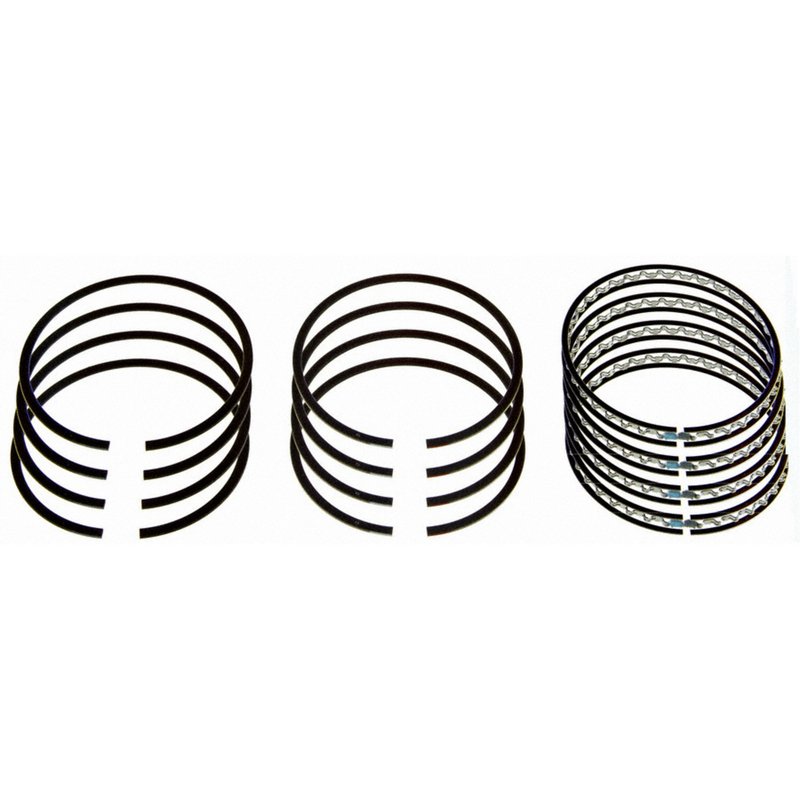

Sealed Power E-531K Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-531K

The Sealed Power Engine Piston Ring Set E-531K is designed for reliable performance in select GM vehicles. Engineered to meet OEM specifications, this piston ring set supports efficient combustion and oil control for engines with an 89.00 mm bore diameter.

• Standard size piston ring set with 89.00 mm outside diameter
• Includes 4 rings for 4-cylinder engines
• Top ring made of grey iron with a barrel face design
• Second ring features a reverse torsional face design and 1.50 mm width
• Oil ring is a 3-piece flex vent design with 3.00 mm width
• Ring groove widths: 1.5 mm (top), 1.5 mm (second), and 3.0 mm (oil ring)

Technical Details and Specifications

This Sealed Power piston ring set (part number E-531K) is engineered for engines with a bore size of 89.00 mm, commonly found in various Buick, Chevrolet, GMC, Oldsmobile, and Pontiac models. The top ring’s barrel face design and grey iron material provide a balance of durability and sealing efficiency. The second ring’s reverse torsional face helps reduce blow-by and improve compression control. The 3-piece flex vent oil ring design ensures effective oil scraping and distribution, minimizing oil consumption and maintaining proper lubrication.

Compatible Vehicles and Applications

This piston ring set is compatible with 4-cylinder engines in the following vehicles:

• Buick Century
• Chevrolet Cavalier, Corsica, Lumina, S10, Sonoma, Sunfire
• GMC S10, Sonoma
• Oldsmobile Cutlass Ciera, Tempest
• Pontiac Sunfire, Tempest

Common Engine Issues Addressed

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption from ineffective oil ring sealing
• Increased blow-by causing engine performance loss
• Uneven wear on cylinder walls affecting engine efficiency
• Engine smoking related to poor ring sealing

Installation Notes and Tips

• Ensure cylinder bore diameter matches 89.00 mm specification before installation
• Check ring groove widths to confirm compatibility with 1.5 mm top and second rings, and 3.0 mm oil ring
• Do not file fit; this set is standard size and ready for installation
• Use proper ring compressors and follow manufacturer torque specifications during assembly
• Inspect cylinder walls for wear or damage prior to installation

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet industry standards for durability and performance. The E-531K piston ring set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation or authorized sources for warranty terms.
