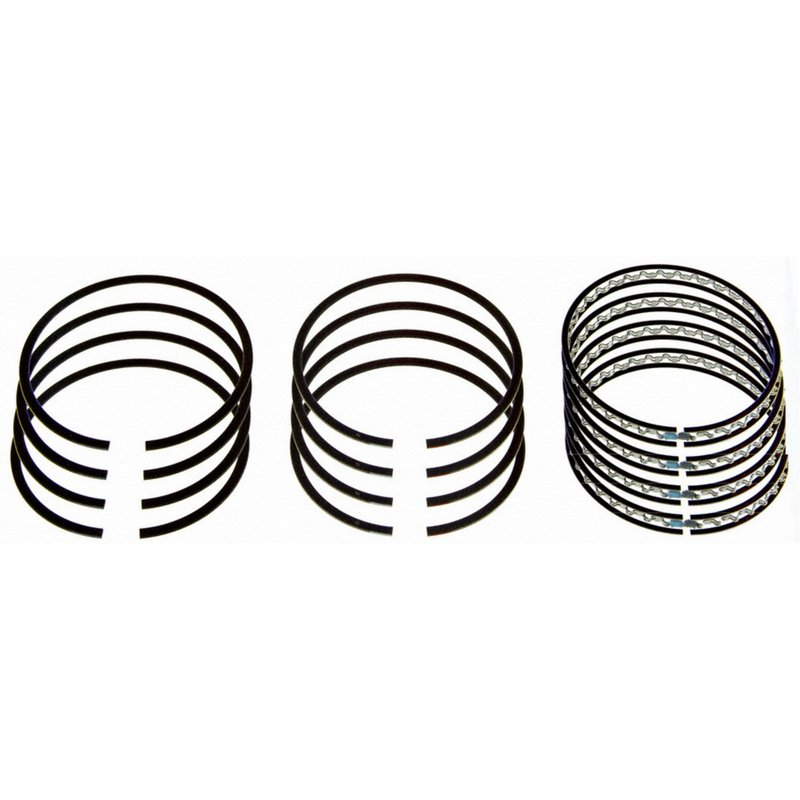

Sealed Power E-535K Engine Piston Ring Set
| Brand | Sealed Power E-535K |
|---|---|
| 2nd Ring Face Design | Reverse Torsional |
| 2nd Ring Material | Grey Iron |
| 2nd Ring Width | 1.50 |
| 2nd Ring Width (mm) | 1.50 |
| Bore Diameter | 92.00 |
| Bore Size (mm) | 92.00 |
| Cylinder Quantity | 4 |
| Oil Ring Width | 3.00 |
| Oil Ring Width (mm) | 3.00 |
| Outside Diameter | 92.00 |
| Outside Diameter (mm) | 92.00 |
| Ring Set Groove Widths (mm) | 1.5 x 1.5 x 3.0 |
| Short Circuit Protection | 3 Piece Flex Vent |
| Standard Size | Standard Size |
| Top Ring Face Design | Barrel Face |
| Top Ring Material | Steel w/Moly |
| Top Ring Width | 1.50 |
| Top Ring Width (mm) | 1.50 |
| Fits | Buick, Chevrolet, Oldsmobile, and Pontiac · 31 vehicles |
Standard-size ring set. Sized for a 92 mm bore with a 4-cylinder application.
Steel with moly top ring. Adds durable wear resistance for dependable sealing.
3-piece flex vent oil ring. Promotes efficient oil control and smoother operation.
Cross-references 2M4468, 535K and 41555 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Sealed Power E-535K Piston Ring Set
Sealed Power E-535K is a standard-size engine piston ring set built for 92.00 mm bore applications with 1.50 mm top and second ring widths and a 3.00 mm oil ring width. It is engineered for 4-cylinder engines and matches the groove width layout of 1.5 x 1.5 x 3.0 mm for accurate ring-to-groove fit.
For drivers and rebuilders working on Buick Skylark, Pontiac Grand Am, or Oldsmobile Achieva applications, this ring set provides the ring face and material combination needed for a proper engine refresh. The Sealed Power E-535K part number is also commonly searched as a direct replacement reference during engine overhaul work.
Key Features
- 92.00 mm bore diameter and outside diameter
- Standard size piston ring set for 4-cylinder engines
- Top ring material: steel with moly
- Top ring face design: barrel face
- Second ring material: grey iron
- Second ring face design: reverse torsional
- Oil ring design: 3-piece flex vent
- Ring groove widths: 1.5 x 1.5 x 3.0 mm
- Sealed Power E-535K for engine rebuild and overhaul use
Product Details
Sealed Power designs engine components with modern materials and controlled manufacturing processes to meet the demands of current engine service work. This E-535K piston ring set uses a steel moly top ring for wear resistance, a grey iron second ring for stable sealing characteristics, and a 3-piece flex vent oil ring design to support oil control in standard 92.00 mm bores. It is a direct-fit ring set for listed Buick Skylark, Pontiac Grand Am, Oldsmobile Achieva, and related applications, including 1988-1995 Buick Skylark and 1988-1995 Pontiac Grand Am.
This part cross-references 535K and PS1714 for the same application.
Common Repair Uses
- Restores cylinder sealing after engine wear
- Addresses oil consumption caused by worn rings
- Helps correct low compression from ring fatigue
- Supports rebuilds with standard 92.00 mm bore sizing
- Helps reduce blow-by in high-mileage 4-cylinder engines
Installation Notes
Verify bore diameter, ring groove widths, and piston specifications before assembly. Confirm the engine uses 1.50 mm top and second ring grooves with a 3.00 mm oil ring groove, and check cylinder wall condition during rebuild. Proper ring end gap measurement and piston-to-cylinder inspection are essential for final fitment. Fits 1988-1995 Buick Skylark, N/A; Fits 1995 Chevrolet Cavalier, N/A; Fits 1992-1995 Oldsmobile Achieva, N/A; Fits 1988-1995 Pontiac Grand Am, N/A; Fits 1995 Pontiac Sunfire, N/A; Fits 1988-1991 Oldsmobile Cutlass Calais, N/A; Fits 1990-1991 Oldsmobile Cutlass Supreme, N/A; Fits 1990-1991 Pontiac Grand Prix, N/A; Fits 1987 Oldsmobile Calais, N/A.
Quality Assurance
Sealed Power states that its parts are manufactured using leading-edge materials and ISO- and QS-certified production methods to support consistent quality for engine service applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1995 | Chevrolet | Cavalier | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1995 | Oldsmobile | Achieva | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1995 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1995 | Pontiac | Sunfire | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1994 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1994 | Oldsmobile | Achieva | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1994 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1993 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1993 | Oldsmobile | Achieva | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1993 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1992 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1992 | Oldsmobile | Achieva | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1992 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1991 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1991 | Oldsmobile | Cutlass Calais | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1991 | Oldsmobile | Cutlass Supreme | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1991 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1991 | Pontiac | Grand Prix | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1990 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1990 | Oldsmobile | Cutlass Calais | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1990 | Oldsmobile | Cutlass Supreme | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1990 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1990 | Pontiac | Grand Prix | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1989 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1989 | Oldsmobile | Cutlass Calais | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1989 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1988 | Buick | Skylark | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1988 | Oldsmobile | Cutlass Calais | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1988 | Pontiac | Grand Am | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1987 | Oldsmobile | Calais | 2.3L | L4 | N/A | Ductile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
