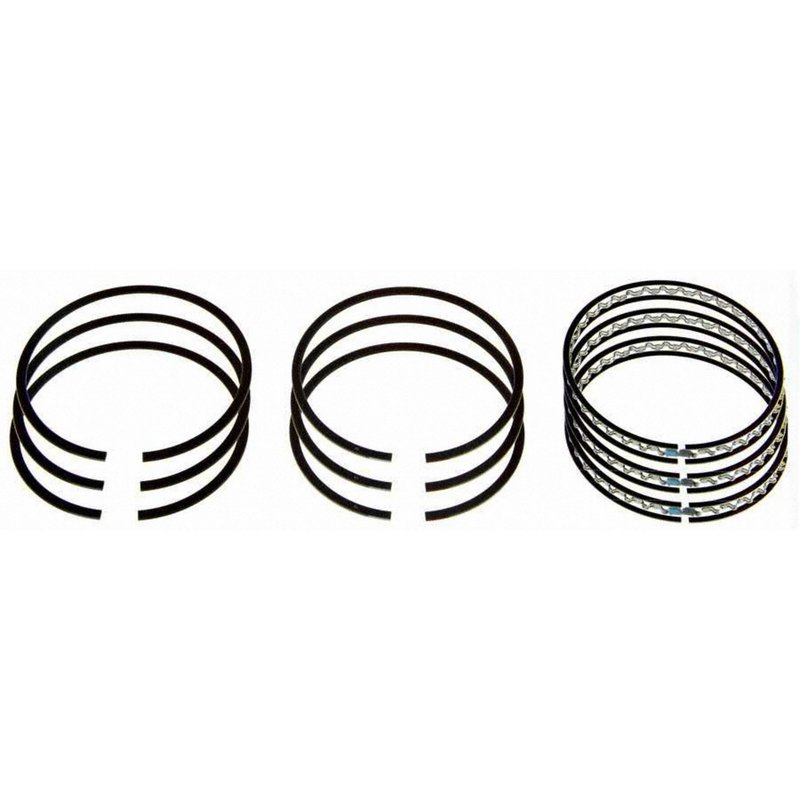

Sealed Power E-549KC Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-549KC

The Sealed Power Engine Piston Ring Set E-549KC is designed for reliable performance in Chevrolet, Geo, and Suzuki vehicles, including models like the Forsa, Metro, and Sprint. This standard size piston ring set features precise dimensions and materials engineered to maintain optimal engine compression and oil control.

• Outside diameter: 74.00 mm
• Top ring width: 1.20 mm with steel and chrome construction
• Second ring width: 1.50 mm made of grey iron
• Oil ring width: 2.80 mm with a 3-piece flex vent design
• Top ring face design: Barrel face for improved sealing
• Second ring face design: Reverse torsional for enhanced ring stability
• Compatible with 3-cylinder engines
• Standard bore diameter: 74.00 mm

Technical Details and Material Specifications

The E-549KC piston ring set includes three rings per cylinder, engineered to fit a 74 mm bore diameter. The top ring is constructed from steel with a chrome coating, providing durability and resistance to wear. Its barrel face design helps maintain a tight seal under varying engine conditions. The second ring, made from grey iron, features a reverse torsional face design that reduces ring flutter and improves oil scraping efficiency. The oil ring is a 3-piece flex vent type, 2.80 mm wide, designed to control oil consumption effectively while maintaining proper lubrication.

Compatible Vehicles and Applications

This piston ring set is compatible with Chevrolet, Geo, and Suzuki vehicles, specifically models such as the Forsa, Metro, and Sprint equipped with 3-cylinder engines. The standard size and precise fitment ensure proper sealing and engine performance in these applications.

• Restores engine compression and reduces blow-by
• Controls oil consumption and prevents oil burning
• Improves overall engine efficiency and performance
• Reduces piston ring flutter and wear
• Maintains proper lubrication and engine longevity

Installation Notes and Tips

Installation of the Sealed Power E-549KC piston ring set requires careful attention to ring orientation and proper gap setting. The top ring’s barrel face should be installed facing the combustion chamber. The second ring’s reverse torsional face must be positioned correctly to maximize sealing and oil control. Ensure the oil ring’s 3-piece flex vent assembly is installed without distortion. It is recommended to check bore diameter and ring end gaps before installation to confirm compatibility and optimal performance.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet strict OEM specifications, ensuring consistent quality and durability. The E-549KC set undergoes rigorous testing for material integrity and dimensional accuracy. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against manufacturing defects, providing confidence in product reliability.
