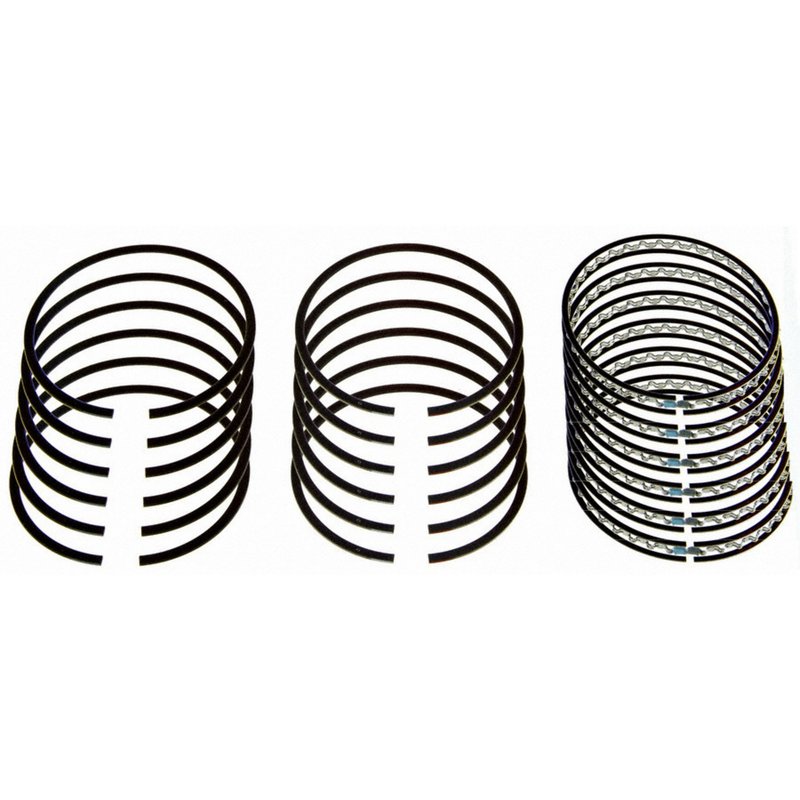

Sealed Power E-562KC Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-562KC

The Sealed Power Engine Piston Ring Set E-562KC is designed for reliable performance in select Lexus and Toyota vehicles. Engineered to meet standard bore size specifications, this piston ring set supports efficient engine operation and durability.

• Standard size piston ring set with 87.50 mm bore diameter
• Includes 6-cylinder quantity rings suitable for multiple engine applications
• Top ring made of steel with chrome coating featuring a barrel face design
• Second ring constructed from grey iron with a reverse torsional face design
• Oil ring designed as a 3-piece flex vent with 4.00 mm width for effective oil control
• Ring groove widths of 1.5 x 1.5 x 4.0 mm for precise fitment

Technical Details and Specifications

This Sealed Power piston ring set (part number E-562KC) is manufactured to standard size specifications with an outside diameter and bore diameter of 87.50 mm. The set includes rings for six cylinders, making it compatible with engines in Lexus and Toyota models such as the 4Runner, Camry, ES300, Pickup, and T100. The top ring features a barrel face design and is made from steel with a chrome coating to provide wear resistance and maintain compression. The second ring uses grey iron material with a reverse torsional face design to enhance sealing and reduce blow-by. The oil ring is a 3-piece flex vent design with a 4.00 mm width, engineered to optimize oil control and reduce oil consumption. Groove widths are precisely 1.5 mm for the top and second rings and 4.0 mm for the oil ring, ensuring proper seating and function.

Compatible Vehicles and Applications

This piston ring set is compatible with the following makes and models:

• Lexus 4Runner
• Toyota Camry
• Toyota ES300
• Toyota Pickup
• Toyota T100

It is designed for engines requiring a standard bore size of 87.50 mm and is not a file fit part, simplifying installation.

Common Engine Issues Addressed

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil ring sealing
• Blow-by gases leading to decreased engine efficiency
• Engine smoking from oil leakage past piston rings
• Loss of power and increased emissions from poor ring sealing

Installation Notes and Tips

• Ensure cylinder bore diameter matches the 87.50 mm specification before installation
• Use proper ring compressors and tools to avoid ring damage during installation
• Verify ring orientation: top ring with barrel face outward, second ring with reverse torsional face
• Check oil ring assembly carefully as it is a 3-piece flex vent design
• Do not file or modify rings as this set is standard size and not a file fit

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-562KC piston ring set undergoes strict quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation or authorized sources for warranty terms.
