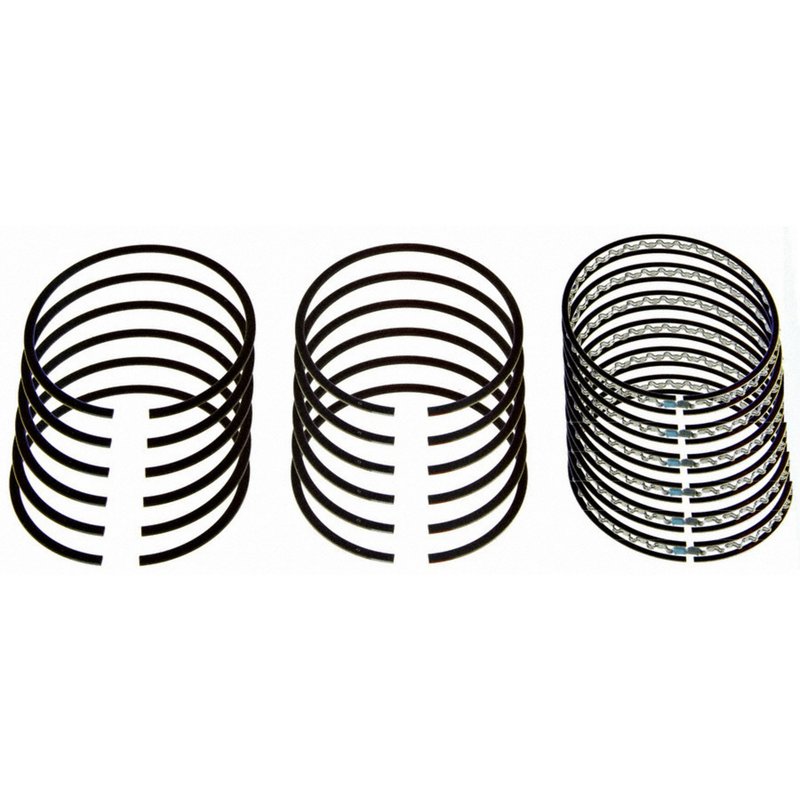

Sealed Power E-907K Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-907K

The Sealed Power Engine Piston Ring Set E-907K is designed for reliable performance in a range of Chrysler, Dodge, Jeep, and Plymouth vehicles. This standard size piston ring set features precise dimensions and durable materials to maintain engine efficiency and reduce wear.

• Outside diameter and bore size: 96.00 mm
• Top ring made of steel with chrome coating, 1.20 mm width, barrel face design
• Second ring constructed from grey iron with phosphate coating, 1.50 mm width, reverse torsional face
• Oil ring is a 3-piece flex vent design, 3.00 mm width
• Compatible with 6-cylinder engines
• Standard size, no file fit required

Technical Details and Material Specifications

The E-907K piston ring set includes three rings per cylinder designed to optimize sealing and oil control. The top ring features a barrel face design and is made from steel with a chrome coating to resist wear and maintain a tight seal under high temperatures. The second ring uses grey iron with a phosphate coating and a reverse torsional face design to improve ring stability and reduce blow-by gases. The oil ring is a 3-piece flex vent type, 3.00 mm wide, engineered to efficiently scrape excess oil from the cylinder walls while maintaining lubrication.

Each ring set is manufactured to a precise 96.00 mm bore diameter and outside diameter, suitable for standard size cylinder bores. The groove widths for the ring set are 1.2 mm for the top ring, 1.5 mm for the second ring, and 3.0 mm for the oil ring, ensuring proper fit and function without the need for file fitting.

Compatible Vehicles and Applications

This piston ring set is compatible with a variety of Chrysler, Dodge, Jeep, and Plymouth models equipped with 6-cylinder engines and a 96 mm bore size. Compatible vehicles include the Chrysler 300, 300M, Concorde, Intrepid, LHS, Magnum, New Yorker, Pacifica, and Town & Country; Dodge Avenger, Challenger, Charger, Journey, Nitro, and Sebring; Jeep Grand Caravan and Wrangler; Plymouth Prowler.

Common Engine Issues Addressed by E-907K Piston Ring Set

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by poor oil ring sealing
• Increased blow-by gases affecting engine performance
• Uneven wear on cylinder walls leading to loss of power
• Engine smoking from oil leakage past piston rings

Installation Notes and Tips

• Ensure cylinder bore is clean and within specification before installation
• Use proper ring compressors and tools to avoid ring damage
• Check ring end gaps and adjust if necessary according to manufacturer guidelines
• Install rings in correct orientation: top ring with barrel face up, second ring with reverse torsional face
• Follow torque specifications for piston and connecting rod assembly

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-907K ring set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. This product is backed by Sealed Power's limited warranty against defects in materials and workmanship, providing confidence in long-term engine reliability.
