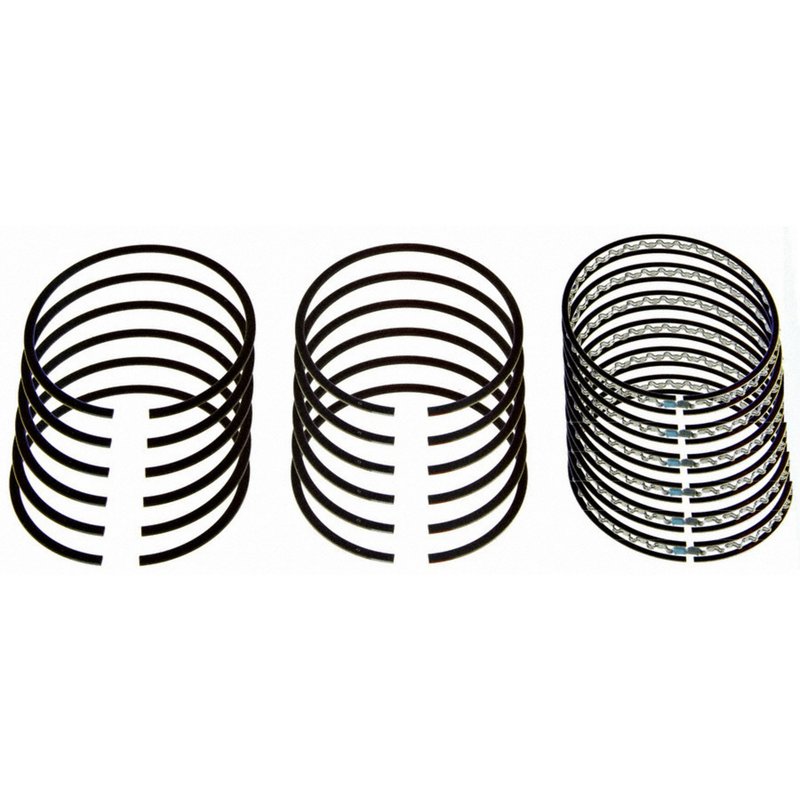

Sealed Power E-915K Engine Piston Ring Set

Brand Sealed Power E-915K
2nd Ring Face Design Reverse Torsional
2nd Ring Material Grey Iron
2nd Ring Width 2.00
2nd Ring Width (mm) 2.00
Bore Diameter 4.0000
Bore Size (in) 4.0000
Cylinder Quantity 6
Oil Ring Width 4.00
Oil Ring Width (mm) 4.00
Outside Diameter 4.0000
Outside Diameter (In) 4.0000
Ring Set Groove Widths (mm) 2.0 x 2.0 x 4.0
Short Circuit Protection 3 Piece Flex Vent
Standard Size Standard Size
Top Ring Face Design Barrel Face
Top Ring Material Steel w/Moly
Top Ring Width 2.00
Top Ring Width (mm) 2.00
Fits Ford · 8 vehicles

Standard size. Fits a 4.0000-inch bore with no file fitting required.

Steel with moly top ring. Adds durable wear resistance for demanding engine use.

3-piece flex vent oil ring. Helps control oil while keeping the ring pack responsive.

Cross-references 2M4879 and 41741 for the same application. See all 2.

$83.23Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $83.23
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Sealed Power E-915K Piston Ring Set

Sealed Power E-915K is a standard-size engine piston ring set built for 4.0000-inch bore applications with 2.0 mm top and second ring grooves and a 4.0 mm oil ring groove. It is engineered for 1996 Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, E-350 Econoline Club Wagon, F-150, F-250, and F-350 4.0-inch bore engines.

Key Features

  • 4.0000-inch bore diameter for standard-size rebuild applications
  • Top ring material: steel with moly face for wear resistance
  • Second ring material: grey iron with reverse torsional face design
  • Oil ring design: 3-piece flex vent for oil control
  • Ring groove widths: 2.0 x 2.0 x 4.0 mm
  • Fits 1996 Ford E-150 Econoline, E-250 Econoline, E-350 Econoline, and F-Series trucks with matching bore and groove dimensions
  • Interchanges with 2M4879 and 41741

Detailed Description

The Sealed Power E-915K piston ring set is built for engine rebuilds that require precise bore and groove matching. With a 4.0000-inch outside diameter and standard-size configuration, it suits 1996 Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, E-350 Econoline, E-350 Econoline Club Wagon, F-150, F-250, and F-350 applications listed for this part. The steel moly top ring, grey iron second ring, and 3-piece flex vent oil ring are selected to support compression sealing and oil control in service.

This part cross-references 2M4879 and 41741 for the same application. Sealed Power E-915K is a direct-fit option for rebuilders looking for a standard-size piston ring set with the specified 2.0 mm / 2.0 mm / 4.0 mm groove widths.

What It Helps Address

  • Low compression caused by worn piston rings
  • Excessive oil consumption from worn oil control rings
  • Blow-by related to poor cylinder sealing
  • Smoke from ring wear or oil control loss
  • Loss of engine efficiency during a rebuild

Installation Notes and Tips

Verify bore diameter, ring groove widths, and standard-size requirements before installation. Confirm the cylinder count and ring face design match the engine specification, and check ring end gap during assembly. Clean piston ring grooves thoroughly and follow the engine builder’s service procedures for ring orientation and break-in.

Quality Assurance

Sealed Power states that its parts use modern designs, advanced materials, and ISO- and QS-certified manufacturing processes to meet the demands of current engines. That manufacturing approach supports consistent fit and finish for rebuild work on 1996 Ford E-Series vans and Ford F-Series trucks.

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1996FordE-150 Econoline4.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordE-150 Econoline Club Wagon4.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordE-250 Econoline4.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordE-350 Econoline4.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordE-350 Econoline Club Wagon4.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordF-1504.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordF-2504.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
1996FordF-3504.9LL6N/ADuctile 2nd Ring; Moly Steel Top Ring; Premium; Ring Groove Widths: 2.0 (mm) , 2.0 (mm) , 4.0 (mm); Standard
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
2M487941741
