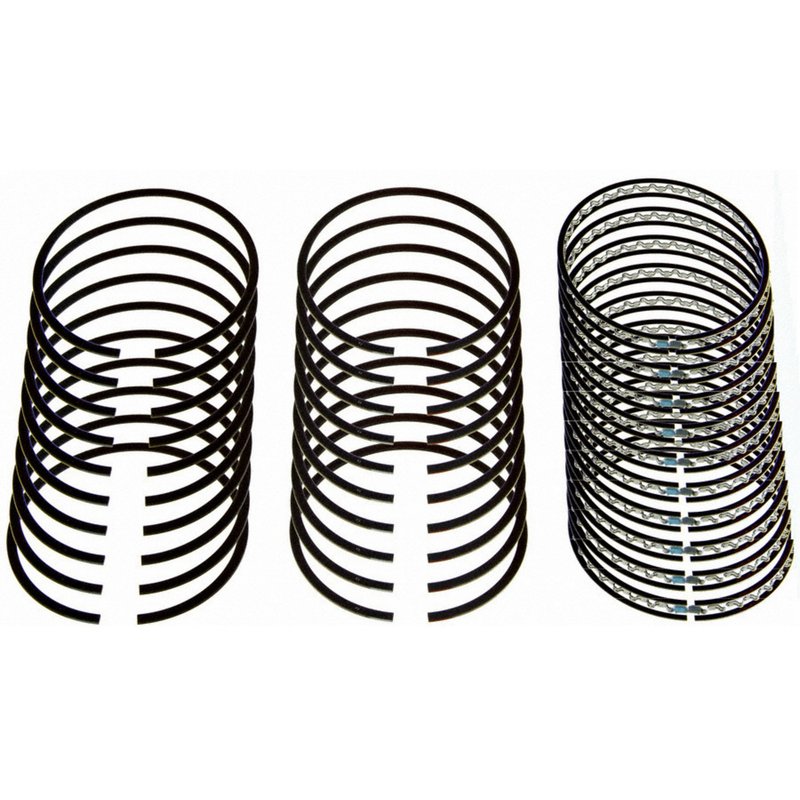

Sealed Power E-917K Engine Piston Ring Set
| Brand | Sealed Power E-917K |
|---|---|
| 2nd Ring Face Design | Reverse Torsional |
| 2nd Ring Material | Grey Iron |
| 2nd Ring Width | 1.50 |
| 2nd Ring Width (mm) | 1.50 |
| Bore Diameter | 90.20 |
| Bore Size (mm) | 90.20 |
| Cylinder Quantity | 10 |
| Oil Ring Width | 3.00 |
| Oil Ring Width (mm) | 3.00 |
| Outside Diameter | 90.20 |
| Outside Diameter (mm) | 90.20 |
| Ring Set Groove Widths (mm) | 1.5 x 1.5 x 3.0 |
| Short Circuit Protection | 3 Piece Flex Vent |
| Standard Size | Standard Size |
| Top Ring Face Design | Barrel Face |
| Top Ring Material | Steel w/Chrome |
| Top Ring Width | 1.50 |
| Top Ring Width (mm) | 1.50 |
| Fits | Ford · 61 vehicles |
Standard size. Fits a standard bore without extra machining.
Barrel-face top ring. Promotes smoother sealing and more consistent contact.
3-piece flex vent oil ring. Helps control oil while improving ring flexibility.
Cross-references Hastings Piston Rings 2M4814, MAHLE 41788 and 2L3Z6148AA for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Sealed Power E-917K Piston Ring Set
Sealed Power E-917K is an engine piston ring set built for 90.20 mm bore applications with standard sizing and a 1.5 x 1.5 x 3.0 mm groove width layout. It uses a steel top ring with chrome face, a reverse torsional second ring, and a 3-piece flex vent oil ring design for Ford Super Duty and E-Series gas engine rebuilds.
Key Features
- Part number E-917K for 90.20 mm bore engines
- Standard size ring set with 1.5 mm top and second ring widths
- 3.0 mm oil ring width with 3-piece flex vent design
- Steel top ring with chrome face for wear resistance
- Grey iron second ring with reverse torsional face design
- Built for Ford E-350 Super Duty, F-250 Super Duty, F-350 Super Duty, Excursion, and related E-Series applications
Product Details
This Sealed Power piston ring set is engineered for engines that require a 90.20 mm bore diameter and standard groove widths. The top ring uses steel with a chrome face, while the second ring is grey iron with a reverse torsional profile to support ring sealing and oil control. Sealed Power uses modern materials and ISO- and QS-certified manufacturing practices to produce engine components for demanding service conditions. This part cross-references MAHLE 41788 for the same application.
Common Repair Uses
- Restoring compression loss caused by worn piston rings
- Reducing oil consumption from ring wear or poor sealing
- Addressing blow-by and crankcase pressure issues
- Supporting engine rebuilds on Ford E-350 Super Duty and F-250 Super Duty platforms
- Replacing worn rings during service on Ford Excursion and E-Series engines
Installation Notes
Verify bore diameter, groove widths, and standard-size requirements before assembly. Confirm the cylinder head and piston condition during rebuild work, and measure ring end gap according to the engine builder’s specifications. Fits 1999-2019 Ford E-350 Super Duty, N/A; Fits 1999-2010 Ford F-250 Super Duty, N/A; Fits 1999-2010 Ford F-350 Super Duty, N/A; Fits 2005 Ford E-350 Club Wagon, N/A; Fits 2003 Ford E-350 Club Wagon, N/A; Fits 2000-2005 Ford Excursion, N/A; Fits 1997-2002 Ford E-350 Econoline Club Wagon, N/A; Fits 1997-1998 Ford E-350 Econoline, N/A.
Quality Assurance
Sealed Power manufactures engine components using leading-edge materials and certified production processes to help maintain consistent fit and performance. The E-917K is a standard-size piston ring set for confirmed Ford applications listed above, including Ford E-350 Super Duty and F-250 Super Duty rebuilds.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2018 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2017 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2016 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2015 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2014 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2013 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2012 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2011 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2010 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2010 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2010 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2009 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2009 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2009 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2008 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2008 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2008 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2007 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2007 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2007 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2006 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2006 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2006 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2005 | Ford | E-350 Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2005 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2005 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2005 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2005 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2004 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2004 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2004 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2004 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2003 | Ford | E-350 Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2003 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2003 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2003 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2003 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2002 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2002 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2002 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2002 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2002 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2001 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2001 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2001 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2001 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2001 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2000 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2000 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2000 | Ford | Excursion | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2000 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 2000 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1999 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1999 | Ford | E-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1999 | Ford | F-250 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1999 | Ford | F-350 Super Duty | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1998 | Ford | E-350 Econoline | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1998 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1997 | Ford | E-350 Econoline | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
| 1997 | Ford | E-350 Econoline Club Wagon | 6.8L | V10 | N/A | Chrome Steel Top Ring; Ductile 2nd Ring; Premium; Ring Groove Widths: 1.5 (mm) , 1.5 (mm) , 3.0 (mm); Standard |
