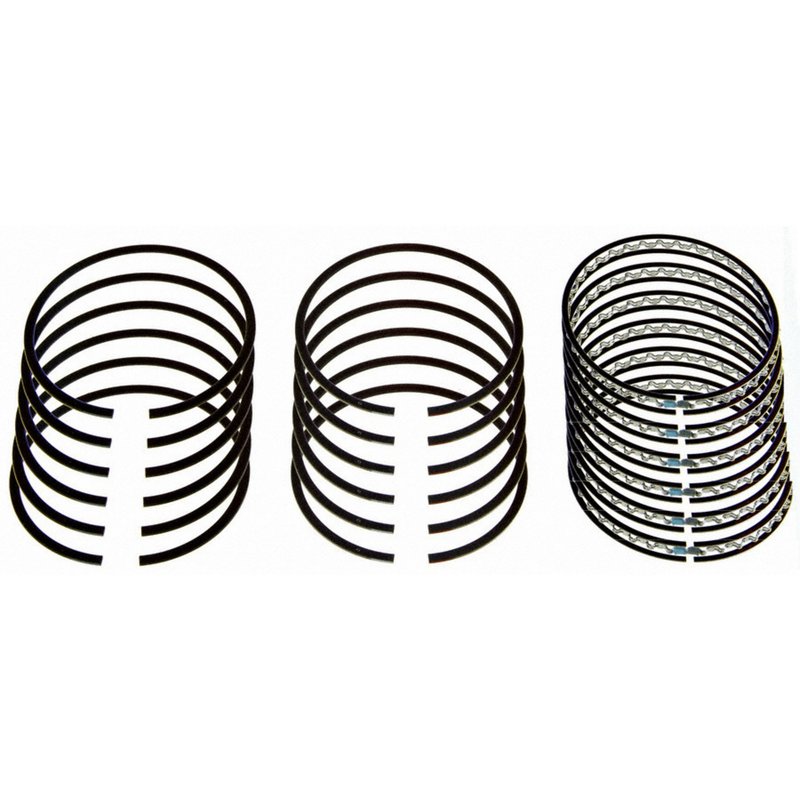

Sealed Power E-930KC Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-930KC

The Sealed Power Engine Piston Ring Set E-930KC is designed for reliable performance in a range of 6-cylinder engines. This piston ring set is compatible with various Chrysler, Dodge, Hyundai, Mitsubishi, and Plymouth models, including the 3000GT, Eclipse, Grand Caravan, and Sonata.

• Standard size piston ring set with 91.10 mm bore diameter
• Top ring made of steel with chrome coating for durability
• Grey iron 2nd ring with reverse torsional face design
• 3-piece flex vent oil ring design with 3.00 mm width
• Ring groove widths of 1.2 mm (top), 1.5 mm (2nd), and 3.0 mm (oil ring)
• Compatible with 6-cylinder engines requiring precise fitment

Technical Specifications and Design Features

The E-930KC piston ring set features a 91.10 mm outside and bore diameter, ensuring a precise fit for engines requiring this standard size. The top ring has a barrel face design and is constructed from steel with a chrome coating to resist wear and maintain sealing integrity. The second ring is made from grey iron and features a reverse torsional face design, which helps control combustion gases and improve ring sealing. The oil ring is a 3-piece flex vent design with a 3.00 mm width, optimized for effective oil control and reduced oil consumption.

Compatible Vehicles and Applications

This piston ring set is compatible with a variety of 6-cylinder engines found in Chrysler, Dodge, Hyundai, Mitsubishi, and Plymouth vehicles. Notable compatible models include the Chrysler 3000GT, Dodge Caravan, Eclipse, Grand Caravan, and Plymouth Sundance. It is designed to meet the specifications required for these vehicles, ensuring proper engine performance and longevity.

Common Engine Issues Addressed by This Piston Ring Set

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil control rings
• Blow-by gases leading to decreased engine efficiency
• Engine smoking resulting from poor ring sealing
• Loss of power and increased emissions from ring wear

Installation Notes and Tips

Installation of the Sealed Power E-930KC piston ring set requires careful attention to ring orientation and proper gap settings. The top ring’s barrel face and the second ring’s reverse torsional design must be installed according to manufacturer specifications to ensure optimal sealing. The 3-piece flex vent oil ring should be assembled carefully to maintain its flexibility and function. This set is not a file-fit type, so it is designed for direct installation without additional fitting.

Quality Assurance and Warranty Information

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-930KC set undergoes rigorous quality control to ensure consistent dimensions and material integrity. While specific warranty details are not provided, Sealed Power products typically come with a limited warranty against manufacturing defects, supporting reliability in automotive engine repairs.
