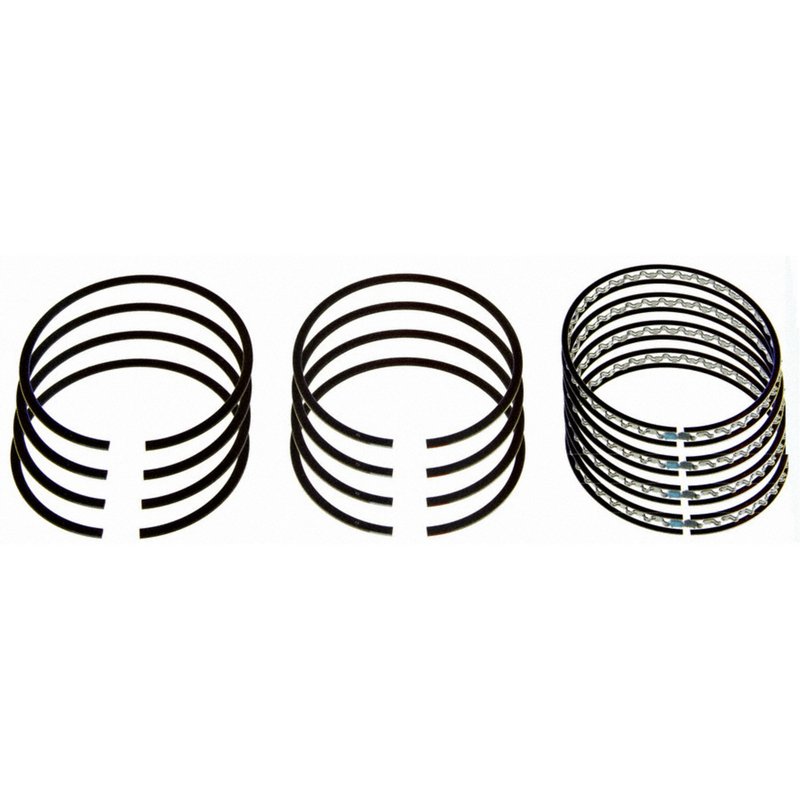

Sealed Power E-933K Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-933K

The Sealed Power Engine Piston Ring Set E-933K is designed specifically for Saturn vehicles including SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. This set features precision-engineered components to maintain optimal engine performance and durability.

• Standard size piston ring set with an 82.00 mm outside diameter
• Top ring made of steel with molybdenum coating for wear resistance
• Second ring constructed from grey iron with a reverse torsional face design
• Oil ring features a 3-piece flex vent design with a 3.00 mm width
• Ring groove widths measure 1.2 mm (top), 1.5 mm (second), and 3.0 mm (oil ring)
• Compatible with 4-cylinder engines with an 82.00 mm bore diameter

Technical Details and Material Specifications

The E-933K piston ring set includes three rings per cylinder designed to fit a standard 82.00 mm bore diameter engine. The top ring has a barrel face design and is made from steel with a molybdenum coating to reduce friction and improve wear resistance. The second ring is made from grey iron and features a reverse torsional face design to help control combustion gases and oil consumption. The oil ring is a 3-piece flex vent type with a 3.00 mm width, engineered to provide effective oil scraping and distribution. This set is intended for use in 4-cylinder Saturn engines, ensuring precise fitment and reliable sealing performance.

Compatible Saturn Models and Applications

This piston ring set is compatible with the following Saturn models: SC1, SC2, SL, SL1, SL2, SW1, and SW2. It is designed to meet the specifications required for these vehicles’ 4-cylinder engines with an 82.00 mm bore diameter. The part number E-933K ensures correct fitment and performance for these applications.

• Restores proper compression and reduces blow-by
• Controls oil consumption and prevents oil burning
• Improves engine efficiency and reduces emissions
• Addresses piston ring wear and cylinder wall scoring
• Helps maintain engine power and smooth operation

Installation Notes and Tips

When installing the Sealed Power E-933K piston ring set, ensure the cylinder bore is clean and within specification. Use proper ring compressors and follow manufacturer torque specifications for piston installation. Avoid file fitting as this set is standard size and does not require modification. Verify ring end gaps and orientation according to Saturn engine service manuals to ensure optimal sealing and performance.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-933K set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically come with a limited warranty against defects in materials and workmanship, providing confidence in long-term engine reliability.
