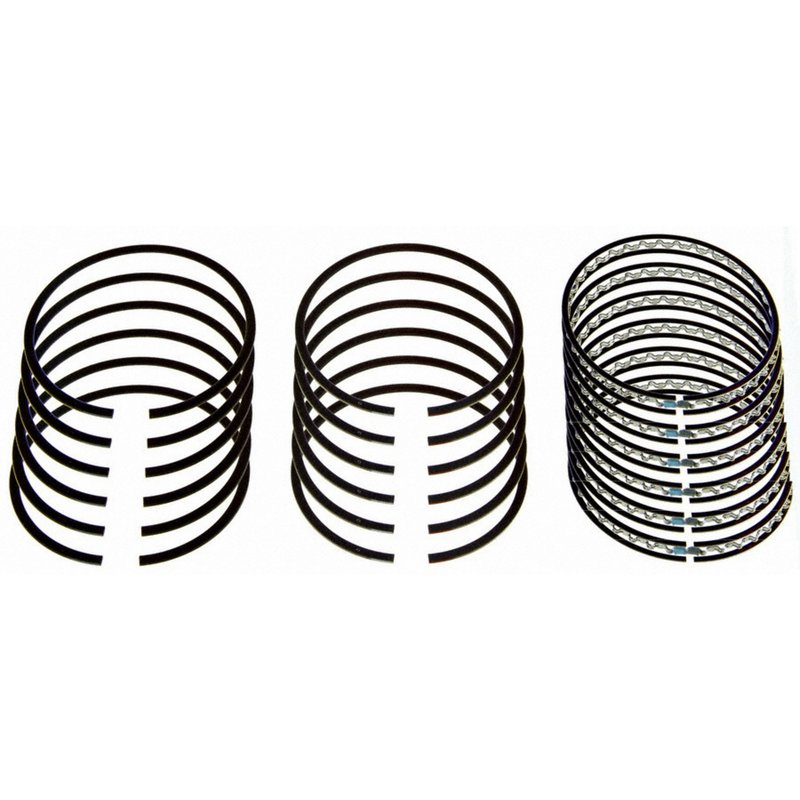

Sealed Power E-961KC Engine Piston Ring Set

Sealed Power E-961KC Piston Ring Set

Sealed Power E-961KC is a standard-size engine piston ring set for 6-cylinder applications that require a chrome steel top ring and ductile second ring. Built for Toyota, Lexus, and related 3.0L V6 applications, it supports precise cylinder sealing for engines in Camry, Avalon, ES300, RX300, Highlander, Sienna, and Solara fitments.

Key Features

• Standard size piston ring set for 6-cylinder engines
• Chrome steel top ring for wear resistance
• Ductile second ring for consistent sealing performance
• File fit: No
• Sealed Power part number E-961KC
• Cross-reference: MAHLE 41912CP

Product Details

Sealed Power E-961KC is an engine piston ring set engineered for standard bore service in select Toyota and Lexus V6 engines. The ring package uses a chrome steel top ring and a ductile second ring, a combination commonly specified for dependable compression control and oil control in everyday driving and rebuild work. This part number, E-961KC, is listed for 1995-2006 Toyota Camry, 1995-2004 Toyota Avalon, 1995-2003 Lexus ES300, 1999-2003 Lexus RX300, 2001-2003 Toyota Highlander, 1998-2003 Toyota Sienna, and 1999-2003 Toyota Solara applications.

Sealed Power parts are manufactured with modern materials and ISO- and QS-certified processes to meet the demands of current engine service standards. If you are rebuilding a Toyota Camry or Lexus ES300 engine and need a standard-size piston ring set, E-961KC provides a direct-fit option for the listed applications.

What This Part Helps Address

• Low compression caused by worn piston rings
• Excessive oil consumption from ring wear
• Blow-by related to poor cylinder sealing
• Smoke from worn or damaged ring packs
• Engine rebuilds requiring standard-size rings

Installation Notes and Tips

Confirm cylinder bore condition and piston groove measurements before assembly. Because this is not a file-fit ring set, ring end gaps should be checked against the engine builder’s specifications rather than adjusted by filing. Match the ring set to the exact engine code and verify the vehicle application before installation. For best results, follow the service manual for ring orientation, gap placement, and break-in procedure.

Quality Assurance

Sealed Power manufactures engine components using leading-edge materials and certified production processes to support consistent fit and performance in modern engines. E-961KC is a standard-size piston ring set built for the listed Toyota and Lexus applications.
