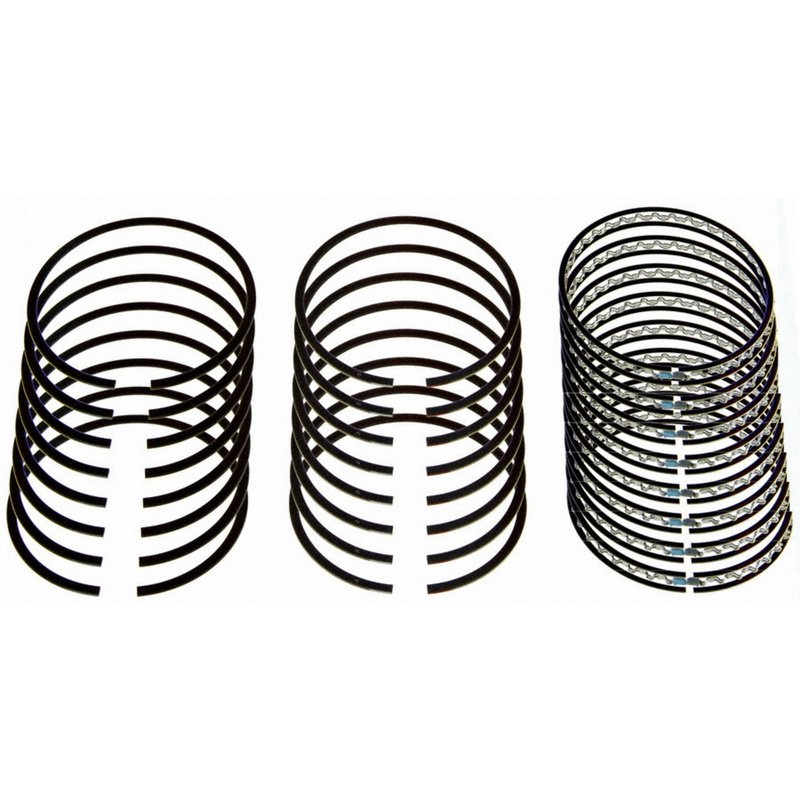

Sealed Power E-968K Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-968K

The Sealed Power Engine Piston Ring Set E-968K is designed for reliable performance in a range of vehicles including Cadillac, Chrysler, Dodge, Jeep, and Mitsubishi models. This set is engineered to meet standard bore size specifications and is ideal for engines requiring precise piston ring dimensions.

• Compatible with 8-cylinder engines featuring a 93.00 mm bore diameter
• Includes a 3-piece flex vent oil ring design for effective oil control
• Top ring width of 1.50 mm and second ring width of 1.50 mm for optimal sealing
• Oil ring width measures 3.00 mm to maintain proper lubrication
• Standard size piston ring set, no file fitting required

Technical Specifications and Features

The E-968K piston ring set is manufactured to fit engines with a bore diameter of 93.00 mm, commonly found in vehicles such as the Cadillac DeVille, Chrysler Aspen, Dodge Ram 1500, Jeep Grand Cherokee, and Mitsubishi Raider. The set includes rings with a top ring width of 1.50 mm and a second ring width of 1.50 mm, ensuring effective compression and combustion chamber sealing. The 3-piece flex vent oil ring design, with a 3.00 mm oil ring width, provides efficient oil control to reduce consumption and maintain engine cleanliness. This set is supplied in a standard size configuration, eliminating the need for file fitting during installation.

Applications and Problem Solving

• Restores proper compression in engines experiencing low power or misfires
• Reduces excessive oil consumption caused by worn or damaged piston rings
• Helps prevent blow-by gases that can contaminate engine oil
• Improves overall engine efficiency and performance in compatible vehicles
• Addresses piston ring wear in 8-cylinder engines with 93 mm bore size

Installation Notes and Tips

Installation of the Sealed Power E-968K piston ring set requires careful attention to ring orientation and proper gap spacing. Since this set is standard size and does not require file fitting, verify bore measurements before installation. Use appropriate piston ring compressors and follow manufacturer torque specifications for cylinder head bolts. Ensure the cylinder walls are properly honed and cleaned to promote ring seating and longevity.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM specifications and undergo rigorous quality control to ensure durability and performance. The E-968K set is backed by Sealed Power's standard warranty coverage, providing assurance of material and workmanship quality. For detailed warranty terms, refer to Sealed Power's official documentation.
