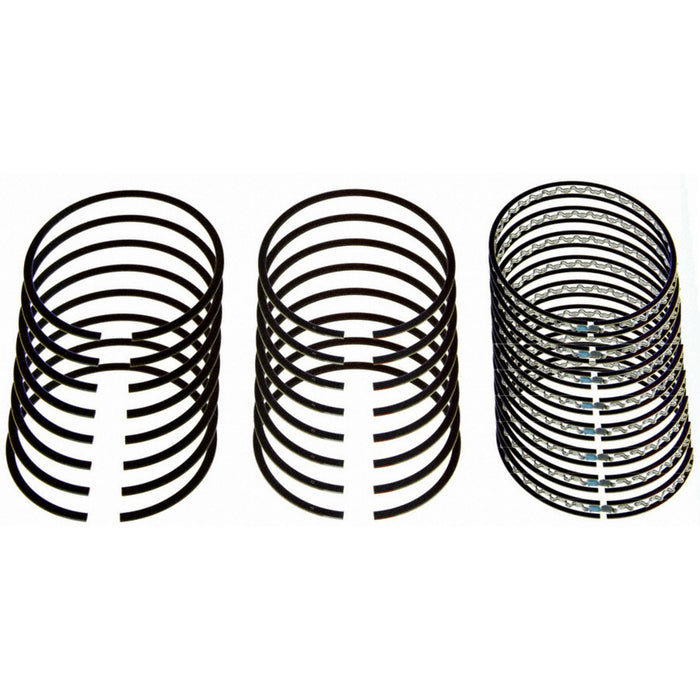

Sealed Power E-979K Engine Piston Ring Set

Vehicle Compatibility Chart

Part Attributes

• 2nd Ring Face Design:
  Reverse Torsional
• 2nd Ring Material:
  Grey Iron w/Phosphate Coating
• 2nd Ring Width:
  1.50
• 2nd Ring Width (mm):
  1.50
• Bore Diameter:
  101.60
• Bore Size (mm):
  101.60
• Cylinder Quantity:
  8
• Oil Ring Width:
  2.50
• Oil Ring Width (mm):
  2.50
• Outside Diameter:
  4.0000
• Outside Diameter:
  101.60
• Outside Diameter (In):
  4.0000
• Outside Diameter (mm):
  101.60
• Radial Wall Thickness - Top (mm):
  3.660
• Ring Set Groove Widths (mm):
  1.2 x 1.5 x 2.5
• Short Circuit Protection:
  3 Piece Flex Vent
• Standard Size:
  Standard Size

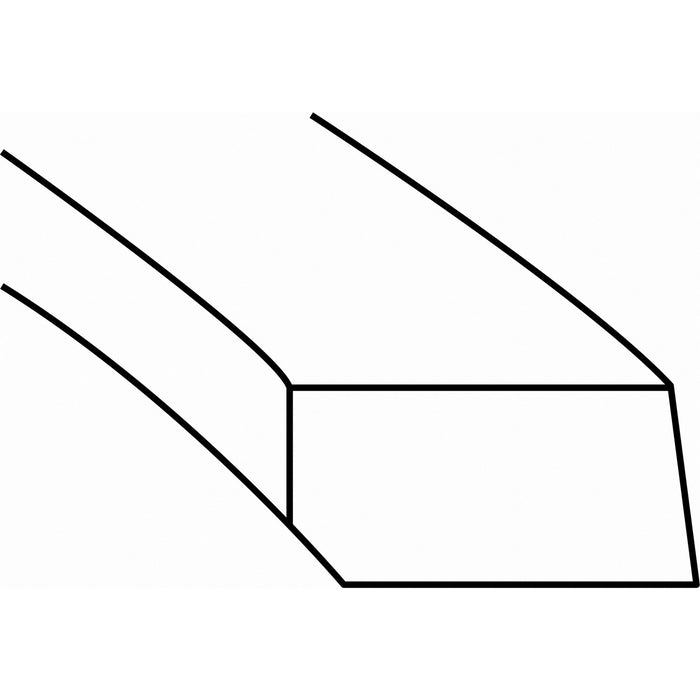

• Top Ring Face Design:
  Barrel Face
• Top Ring Material:
  Steel w/Moly
• Top Ring Radial Wall Thickness:
  3.660
• Top Ring Width:
  1.20
• Top Ring Width (mm):
  1.20
