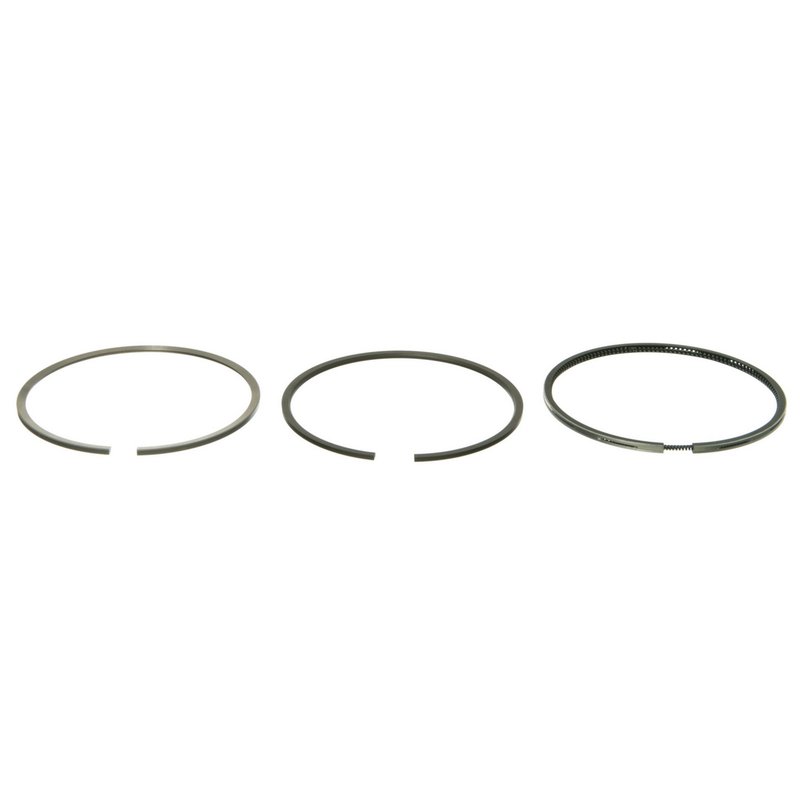

Sealed Power E-983KC Engine Piston Ring Set

Overview of Sealed Power Engine Piston Ring Set E-983KC

The Sealed Power Engine Piston Ring Set E-983KC is designed for reliable performance in Dodge Ram 2500 and Ram 3500 models. This standard size piston ring set features precise dimensions to ensure optimal sealing and engine efficiency.

• Compatible with Dodge Ram 2500 and Ram 3500
• Standard size with 102.00 mm bore diameter and outside diameter
• Includes 6 cylinder piston rings
• Oil ring design: 2 piece conformatic for effective oil control
• Top ring face design: Key stone for improved sealing
• Ring groove widths: 3.0 mm (top), 2.4 mm (second), and 4.0 mm (oil ring)
• Top ring radial wall thickness: 2.990 mm

Technical Specifications and Features

The E-983KC piston ring set is engineered with a 102.00 mm bore size, matching the bore diameter for precise fitment in the cylinder block. The set includes six piston rings, suitable for six-cylinder engines found in Dodge Ram 2500 and Ram 3500 trucks. The top ring features a key stone face design, which enhances the sealing capability against combustion gases. The second ring has a width of 2.40 mm, while the oil ring is a 2 piece conformatic design with a 4.00 mm width, providing effective oil scraping and control to reduce oil consumption and maintain engine cleanliness.

Application and Problem Solving

This piston ring set is intended for use in engine rebuilds or repairs where piston ring replacement is necessary. It addresses common engine issues such as:

• Loss of compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil control rings
• Blow-by gases entering the crankcase, reducing engine efficiency
• Engine smoking resulting from poor ring sealing
• Reduced engine power and performance from ring wear

Installation Notes and Tips

When installing the Sealed Power E-983KC piston ring set, ensure the cylinder bore is clean and properly honed to the specified 102.00 mm diameter. The rings are standard size and do not require filing or fitting. Carefully orient the key stone top ring face as per manufacturer instructions to maximize sealing. Use proper ring compressors and avoid over-expanding the rings during installation to prevent damage.

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM specifications, ensuring consistent quality and durability. The E-983KC set undergoes rigorous quality control to maintain dimensional accuracy and material integrity. While specific warranty details are not provided, Sealed Power products typically come with a limited warranty against manufacturing defects. Consult product documentation for exact warranty terms.
