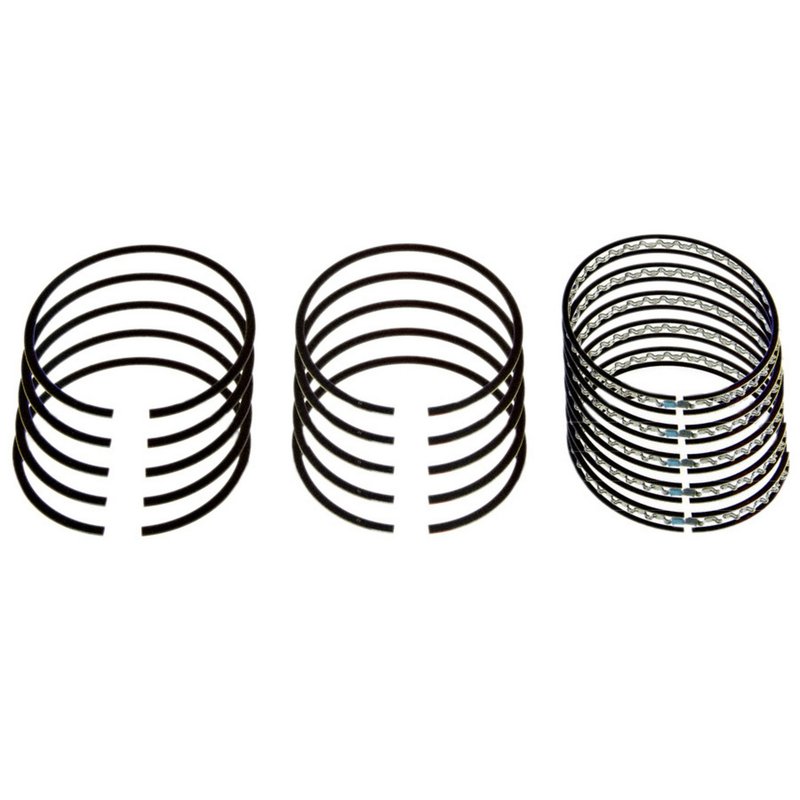

Sealed Power E-989K Engine Piston Ring Set

Sealed Power Engine Piston Ring Set Overview

The Sealed Power E-989K engine piston ring set is designed for reliable performance in Chevrolet, GMC, and Hummer vehicles. Engineered to meet standard size specifications, this set supports 5-cylinder engines with a 93.00 mm bore diameter, ensuring precise fit and function.

• Standard size piston ring set with 93.00 mm outside diameter
• Top ring made of steel with molybdenum coating for wear resistance
• Second ring constructed from grey iron with phosphate coating
• 3-piece flex vent oil ring design for effective oil control
• Reverse torsional face design on the second ring for improved sealing
• Barrel face design on the top ring to enhance ring-to-cylinder contact
• Ring widths: Top ring 1.20 mm, second ring 1.50 mm, oil ring 2.50 mm
• Radial wall thickness of top ring is 3.610 mm for durability

Technical Details and Specifications

The E-989K piston ring set features a precise 93.00 mm bore diameter compatible with Chevrolet Canyon, GMC Colorado, and Hummer H3 models. The top ring utilizes a steel base with a molybdenum coating to reduce friction and wear, while the second ring is made from grey iron with a phosphate coating to resist corrosion and maintain sealing integrity. The reverse torsional face design on the second ring helps maintain ring tension and reduces blow-by gases. The oil ring is a 3-piece flex vent design, providing efficient oil scraping and control to prevent excessive oil consumption. Ring groove widths are optimized at 1.2 mm for the top ring, 1.5 mm for the second ring, and 2.5 mm for the oil ring, ensuring proper seating and performance.

Compatible Vehicles and Applications

• Chevrolet Canyon with 5-cylinder 93.00 mm bore engines
• GMC Colorado equipped with compatible 5-cylinder engines
• Hummer H3 models requiring standard size piston ring sets

Common Engine Issues Addressed

• Reduced compression due to worn or damaged piston rings
• Excessive oil consumption caused by ineffective oil ring sealing
• Blow-by gases leading to decreased engine efficiency
• Engine smoking from poor ring-to-cylinder contact
• Loss of power and increased emissions from ring failure

Installation Notes and Tips

• Ensure cylinder bore is clean and within specification before installation
• Check ring end gaps and adjust if necessary, although this set is standard size and does not require file fitting
• Install rings carefully to avoid damage to coatings and ring faces
• Follow manufacturer torque specifications for piston and ring assembly
• Rotate rings properly according to engine service manual to optimize sealing

Quality Assurance and Warranty

Sealed Power piston rings are manufactured to meet OEM standards for durability and performance. The E-989K set undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details may vary, Sealed Power products typically include coverage against manufacturing defects. Consult product documentation or authorized sources for warranty terms.
