Sealed Power WE-251K Engine Piston Ring Set

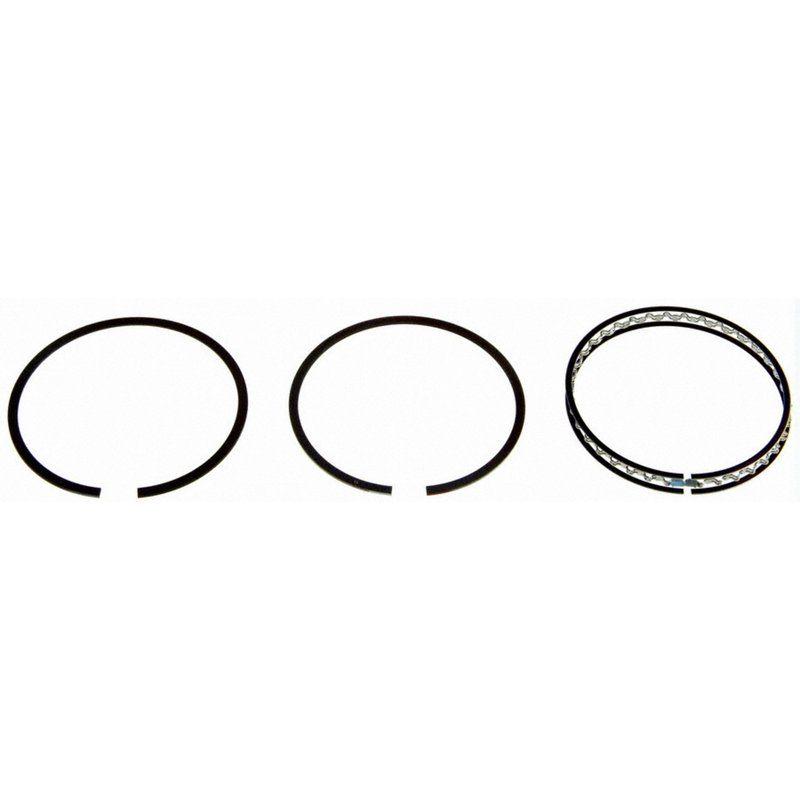

Sealed Power WE-251K Piston Ring Set

Sealed Power WE-251K is a standard-size engine piston ring set built for 8-cylinder applications that require precise ring groove matching and dependable cylinder sealing. It is engineered with a moly steel top ring and a ductile second ring to support compression control and oil management in a wide range of Ford, Chevrolet, GMC, Dodge, and other classic V8 engines.

Fits broad 1958-1997 applications, including Ford F-150, Chevrolet C10, and Dodge D150 engine rebuilds where standard-size piston ring fitment is required.

Key Features

• Standard-size piston ring set for engine rebuild and overhaul work
• Moly steel top ring for wear-resistant sealing performance
• Ductile second ring for consistent cylinder wall contact
• Designed for 8-cylinder engines
• File fit: No
• Built by Sealed Power using ISO- and QS-certified manufacturing practices

Detailed Description

The Sealed Power WE-251K piston ring set is intended for engine builders and repair technicians who need accurate ring fitment in standard bore applications. The ring package is listed with groove widths of 5/64 in., 5/64 in., and 3/16 in., making it a direct match for many vintage and late-model V8 combinations. This part cross-references MAHLE S40564CP for the same application. Common fitment includes Ford Bronco, Ford Mustang, Chevrolet Camaro, and GMC Jimmy engine rebuilds, along with many truck and van platforms from the 1950s through the 1990s.

What It Helps Address

• Low compression caused by worn or tired piston rings
• Excessive oil consumption from ring wear
• Blow-by from poor cylinder sealing
• Loss of ring tension during engine rebuilds
• Mismatch between piston groove dimensions and replacement rings

Installation Notes and Tips

• Verify piston groove widths before installation: 5/64 in., 5/64 in., and 3/16 in.
• Confirm whether your application uses WH-653P, WH654P, or WL-2403NF piston references listed in fitment notes.
• Because this set is not file fit, do not assume end-gap adjustment is required without measuring the cylinder and ring specification.
• Clean ring grooves thoroughly and inspect cylinder walls before assembly.
• Follow the engine builder’s service manual for ring orientation and end-gap checks.

Quality Assurance

Sealed Power parts are manufactured with leading-edge materials and controlled production processes to meet the demands of modern engine service and rebuild work. WE-251K is a standard-size replacement option for confirmed applications across Ford, Chevrolet, GMC, Dodge, Mercury, Lincoln, Buick, Pontiac, and related platforms.
