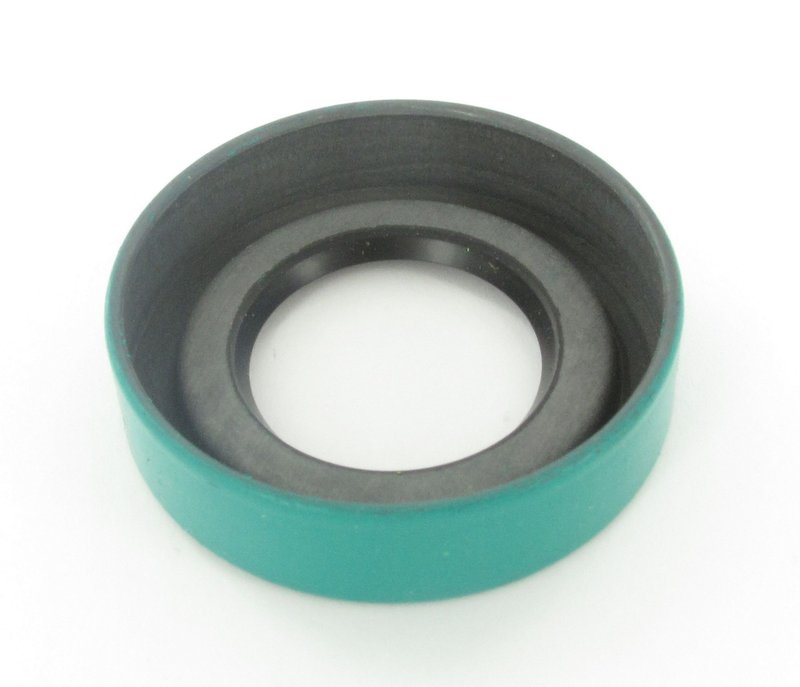

SKF 10035 Steering Knuckle Seal - Front
| Brand | SKF 10035 |
|---|---|
| Position | Front |
| Fits | Ford · 11 vehicles |
Precision seal design. Keeps lubricants in and contaminants out.
Nitrile sealing surface. Built with premium material for the right application environment.
Steering knuckle seal. Provides dependable sealing performance for steering components.
Cross-references 253-111, 11492G1 and 33776 for the same application. See all 12.
SKF 10035 Steering Knuckle Seal for Ford F-100
SKF 10035 is a steering knuckle seal built for front suspension service on 1966-1972 Ford F-100 trucks. It is designed with a nitrile sealing surface and precise dimensions to help retain lubricant and block road contaminants at the knuckle.
- Brand: SKF
- Part number: 10035
- Steering knuckle seal for front application
- Nitrile sealing surface type
- Width: 0.469 in.
- Outside diameter: 1.785 in.
- Shaft diameter: 1.000 in.
Application Details
Compatible with 1966-1972 Ford F-100, front. This SKF 10035 seal is specified for the front steering knuckle area on Ford F-100 models from 1966 through 1972. It is also cross-referenced to Monroe Shocks & Struts 172286 for the same application.
Product Description
SKF has a long history in seal engineering, and this part reflects that experience with a design focused on fit, material selection, and sealing performance. The nitrile sealing surface is selected for service in demanding automotive environments where lubricant retention and contamination control are critical. With a 1.000-inch shaft diameter, 1.785-inch outside diameter, and 0.469-inch width, SKF 10035 is built to match the dimensional requirements of the steering knuckle assembly.
What This Seal Helps Address
- Lubricant leakage at the steering knuckle
- Dirt and moisture intrusion into the sealed area
- Wear caused by contaminated grease or lubricant
- Service issues related to deteriorated front knuckle sealing
- Restoration work on 1966-1972 Ford F-100 front suspension components
Installation Notes and Tips
Verify shaft diameter, outside diameter, and width before installation to confirm proper seating in the steering knuckle assembly. Inspect the mating surfaces for wear, corrosion, or damage that could affect sealing performance. Clean the housing thoroughly and install the seal squarely to avoid distortion of the nitrile sealing surface.
Quality Assurance
SKF designs and manufactures seals to specific application requirements using premium materials and established bonding techniques. The brand’s seal engineering heritage dates back to the first integrated shaft seal, and its products are built to support long service life and dependable sealing in automotive use.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1972 | Ford | F-100 | 4WD | Front | — |
| 1971 | Ford | F-100 | 4WD | Front | — |
| 1970 | Ford | F-100 | 4WD | Front | — |
| 1969 | Ford | F-100 | 4WD | Front | — |
| 1969 | Ford | F-100 | AWD | Front | — |
| 1968 | Ford | F-100 | 4WD | Front | — |
| 1968 | Ford | F-100 | AWD | Front | — |
| 1967 | Ford | F-100 | 4WD | Front | — |
| 1967 | Ford | F-100 | AWD | Front | — |
| 1966 | Ford | F-100 | 4WD | Front | — |
| 1966 | Ford | F-100 | AWD | Front | — |
| No rows match your filter. | |||||
