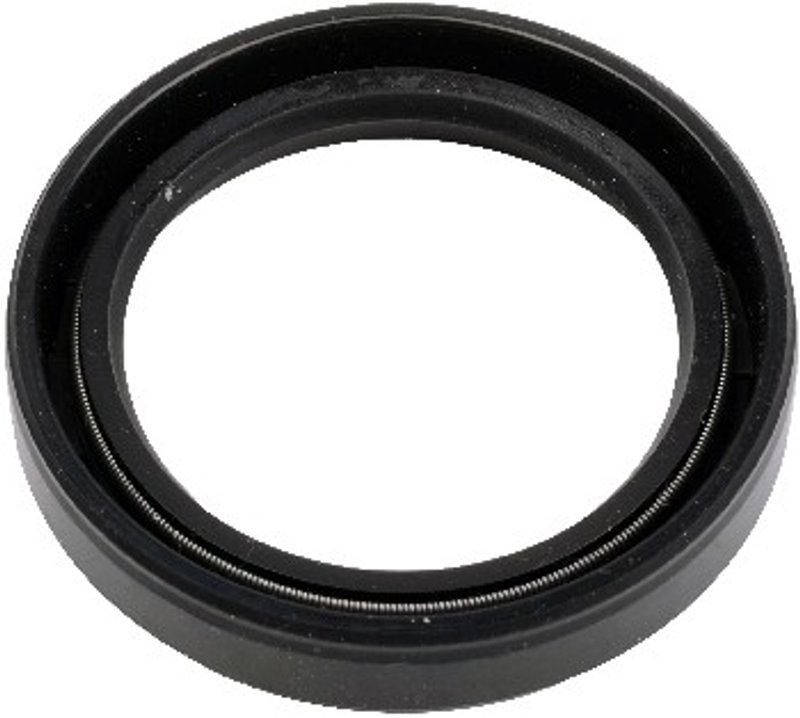

SKF 10924 Steering Gear Pitman Shaft Seal

SKF 10924 Steering Gear Pitman Shaft Seal

SKF 10924 is a steering gear pitman shaft seal built for sealing performance in the steering system. It is designed with a nitrile sealing surface and precise dimensions to help maintain proper sealing at the pitman shaft interface. This seal fits 1970-1974 Toyota Corolla applications, including standard models from 5/70.

Key Features

• Part number: SKF 10924
• Steering gear pitman shaft seal for the steering system
• Nitrile sealing surface type for sealing performance
• Outside diameter: 1.505 in.
• Shaft diameter: 1.102 in.
• Width: 0.276 in.
• Fits 1970-1974 Toyota Corolla, N/A

Detailed Description

SKF 10924 is a steering gear pitman shaft seal engineered for the sealing demands of classic Toyota steering gear applications. SKF has a long history in seal design and uses application-specific materials and construction methods to help the seal match the operating environment. With its nitrile sealing surface, 1.505-inch outside diameter, 1.102-inch shaft diameter, and 0.276-inch width, this seal is sized for the specified steering gear interface on 1970-1974 Toyota Corolla models. The part number 10924 is also referenced in interchange listings for related applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Steering gear lubricant leakage at the pitman shaft
• Contamination entering the steering gear housing
• Wear-related sealing loss in older steering components
• Fluid loss that can affect steering gear operation
• Service issues on 1970-1974 Toyota Corolla steering gear assemblies

Installation Notes and Tips

Confirm shaft diameter, outside diameter, and seal width before installation. Inspect the pitman shaft and sealing bore for wear, scoring, or corrosion, since surface damage can shorten seal life. Clean the sealing area thoroughly and verify the seal seats evenly in the housing. For best results, match the replacement seal to the exact steering gear application listed for your Toyota Corolla.

Quality Assurance

SKF manufactures seals to specific designs using premium materials and established sealing methods developed over decades of seal engineering. The brand’s focus on dimensional accuracy and application-specific construction supports long service life in steering system use.
