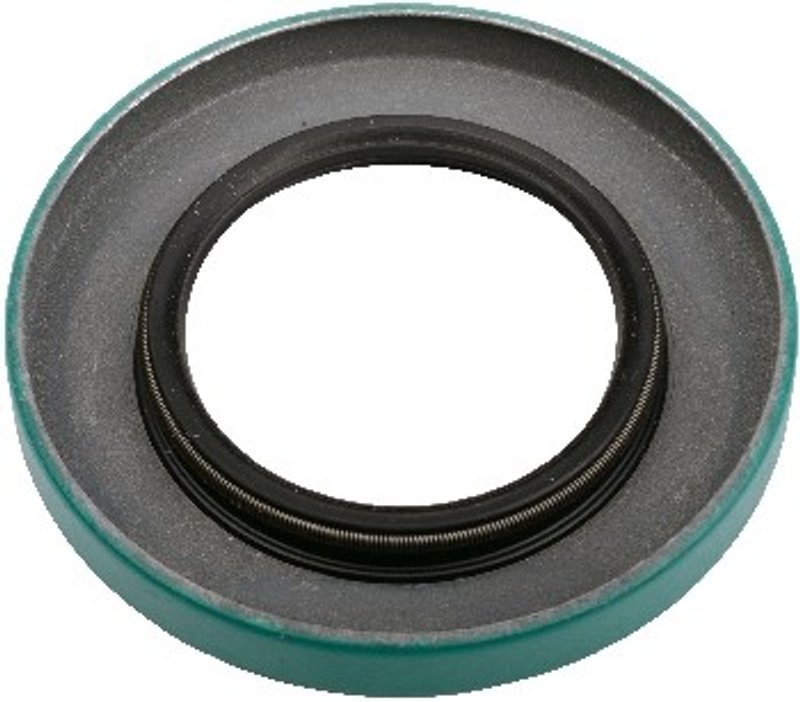

SKF 13537 Steering Gear Pitman Shaft Seal - Inner
| Brand | SKF 13537 |
|---|---|
| Position | Inner |
| Width | 0.313 |
| Outside Diameter | 1.832 |
| Sealing Surface Type | Nitrile |
| Shaft Diameter | 1.375 |
| Fits | Chrysler and Ford · 30 vehicles |
Nitrile sealing surface. Helps keep lubricants in and contaminants out.
Precision seal design. Made to specific designs for the right application and environment.
SKF seal heritage. Built on more than a century of sealing innovation.
Cross-references Febi-Bilstein 18924, 2H3915 and 26-86819 for the same application. See all 9.
SKF Steering Gear Pitman Shaft Seal 13537
SKF 13537 is a steering gear pitman shaft seal built for applications that need reliable fluid retention at the steering gear. With a nitrile sealing surface, it is designed to maintain a tight seal where the pitman shaft passes through the steering gear housing.
Use this SKF steering gear pitman shaft seal for Ford F-100, Ford F-250, Ford F-350, and select Chrysler steering applications that call for part number 13537.
Key Features
- Nitrile sealing surface for steering gear sealing applications
- Outside diameter: 1.832 in.
- Shaft diameter: 1.375 in.
- Width: 0.313 in.
- Designed for steering gear pitman shaft service
- SKF part number 13537
Application Details
SKF 13537 is a steering gear pitman shaft seal used to help maintain proper sealing at the steering gear housing. It is listed for 1963-1977 Ford F-250, 1963-1966 Ford F-350, 1964-1965 Ford F-100, and 1951-1953 Chrysler Imperial, New Yorker, Newport, and Town & Country inner steering applications shown in the fitment data. This part cross-references Febi-Bilstein 18924 for the same application.
What It Helps Fix
- Steering gear fluid leakage at the pitman shaft
- Contamination entering the steering gear housing
- Wear-related sealing loss around the shaft interface
- Service issues on older Ford truck and Chrysler steering systems
Installation Notes
Confirm shaft diameter, outside diameter, and width before installation. Clean the sealing bore and shaft surface thoroughly, and inspect the pitman shaft and steering gear housing for wear or scoring that could affect seal performance. Match the seal to the exact steering gear application and position listed in the fitment data.
Quality Assurance
SKF has a long history in seal design and manufacturing, with engineering focused on material selection and application-specific sealing performance. SKF seals are produced to high quality standards for durability and dependable steering system service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1977 | Ford | F-250 | 4WD | N/A | Std. |
| 1976 | Ford | F-250 | 4WD | N/A | Std. |
| 1975 | Ford | F-250 | 4WD | N/A | Std. |
| 1974 | Ford | F-250 | 4WD | N/A | Std. |
| 1973 | Ford | F-250 | 4WD | N/A | Std. |
| 1972 | Ford | F-250 | 4WD | N/A | Std. |
| 1971 | Ford | F-250 | 4WD | N/A | Std. |
| 1970 | Ford | F-250 | 4WD | N/A | Std. |
| 1969 | Ford | F-250 | 4WD | N/A | Std. |
| 1968 | Ford | F-250 | 4WD | N/A | Std. |
| 1967 | Ford | F-250 | 4WD | N/A | Std. |
| 1966 | Ford | F-250 | 4WD | N/A | Std. |
| 1966 | Ford | F-350 | — | N/A | Std.; From Ser. 380001 |
| 1965 | Ford | F-100 | 4WD | N/A | Std. |
| 1965 | Ford | F-250 | 4WD | N/A | Std. |
| 1965 | Ford | F-350 | — | N/A | Std.; From Ser. 380001 |
| 1964 | Ford | F-100 | 4WD | N/A | Std. |
| 1964 | Ford | F-250 | 4WD | N/A | Std. |
| 1964 | Ford | F-350 | — | N/A | Std.; From Ser. 380001 |
| 1963 | Ford | F-100 | 4WD | N/A | Std.; From Ser. 380001 |
| 1963 | Ford | F-250 | RWD | N/A | Std. |
| 1963 | Ford | F-350 | — | N/A | Std.; From Ser. 380001 |
| 1953 | Chrysler | Imperial | — | Inner | — |
| 1952 | Chrysler | Imperial | — | Inner | Late |
| 1952 | Chrysler | New Yorker | — | Inner | w/o Co-Axial Type |
| 1952 | Chrysler | Newport | — | Inner | w/o Co-Axial Type |
| 1952 | Chrysler | Town & Country | — | Inner | w/o Co-Axial Type |
| 1951 | Chrysler | New Yorker | — | Inner | w/o Co-Axial Type |
| 1951 | Chrysler | Newport | — | Inner | w/o Co-Axial Type |
| 1951 | Chrysler | Town & Country | — | Inner | w/o Co-Axial Type |
