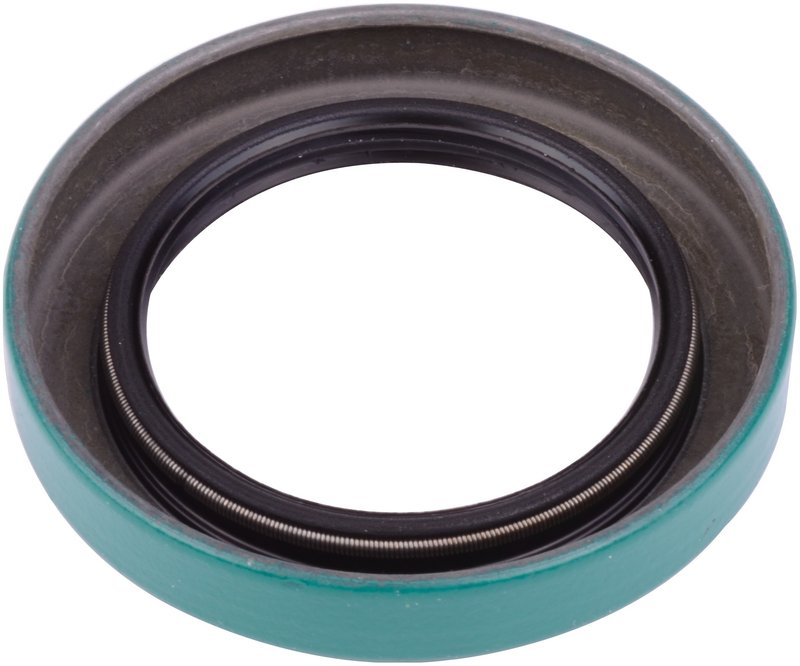

SKF 13569 Manual Transmission Seal - Rear
| Brand | SKF 13569 |
|---|---|
| Position | Rear |
| Fits | Chevrolet and MG · 17 vehicles |
Nitrile sealing surface. Helps keep lubricants in and contaminants out.
Precision-made seal. Built to specific designs with premium materials.
Manual transmission seal. A sealing solution for transmission applications.
Cross-references 111512K11 and F39Z3254A for the same application. See all 2.
SKF Manual Transmission Seal for Corvette
SKF Part Number 13569 is a manual transmission seal built for rear applications on select Chevrolet Corvette models from 1963-1979. It uses a nitrile sealing surface and precise dimensions to help maintain a proper seal at the shaft and housing interface.
Key Features
- Manual transmission seal for rear placement
- Nitrile sealing surface type for transmission sealing applications
- Shaft diameter: 1.375 in.
- Outside diameter: 2.004 in.
- Width: 0.313 in.
- SKF Part Number 13569 for catalog matching and service lookup
Detailed Description
SKF 13569 is engineered for manual transmission sealing where accurate fit and material selection matter. The seal is specified with a 1.375-inch shaft diameter, 2.004-inch outside diameter, and 0.313-inch width, making it a direct-reference service part for rear transmission sealing on Chevrolet Corvette applications. SKF has a long history of seal design and manufacturing, and this part reflects that focus with premium materials selected for the operating environment.
Compatible With 1963-1979 Chevrolet Corvette, rear. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Seal Can Address
- Transmission fluid seepage at the rear seal area
- Contamination entering the transmission through a worn seal
- Leak-related fluid loss around the shaft opening
- Seal wear from age, heat, and drivetrain use
- Service replacement during manual transmission maintenance
Installation Notes and Tips
Verify shaft diameter, outside diameter, and width before installation to confirm proper fit. Inspect the sealing surface and surrounding housing for wear, scoring, or debris before installing the new seal. Clean the bore and shaft area thoroughly so the nitrile sealing lip can seat evenly. For Chevrolet Corvette rear manual transmission service, confirm the application against the vehicle year and transmission configuration before assembly.
Quality Assurance
SKF designs and manufactures seals to high quality standards, using application-specific materials and construction methods developed from decades of sealing expertise. SKF Part Number 13569 is built for long service life in transmission sealing use.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1979 | Chevrolet | Corvette | Rear | — |
| 1978 | Chevrolet | Corvette | Rear | — |
| 1977 | Chevrolet | Corvette | Rear | — |
| 1976 | Chevrolet | Corvette | Rear | — |
| 1975 | Chevrolet | Corvette | Rear | — |
| 1974 | Chevrolet | Corvette | Rear | — |
| 1973 | Chevrolet | Corvette | Rear | — |
| 1972 | Chevrolet | Corvette | Rear | — |
| 1971 | Chevrolet | Corvette | Rear | — |
| 1970 | Chevrolet | Corvette | Rear | — |
| 1969 | Chevrolet | Corvette | Rear | — |
| 1968 | Chevrolet | Corvette | Rear | — |
| 1967 | Chevrolet | Corvette | Rear | — |
| 1966 | Chevrolet | Corvette | Rear | — |
| 1965 | Chevrolet | Corvette | Rear | — |
| 1964 | Chevrolet | Corvette | Rear | — |
| 1963 | Chevrolet | Corvette | Rear | — |
