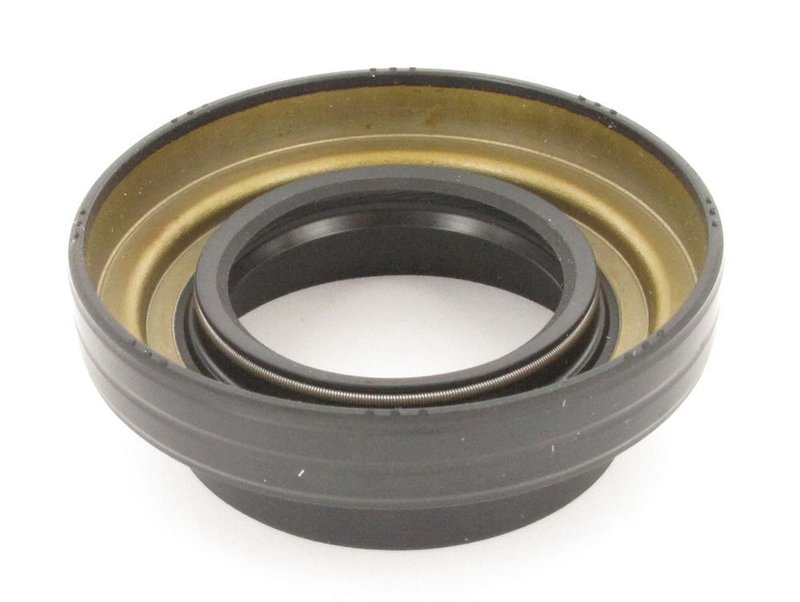

SKF 13616 Manual Transmission Output Shaft Seal - Left

SKF Manual Transaxle Output Shaft Seal

SKF 13616 is a left-side manual transmission output shaft seal for select Toyota, Scion, and Pontiac applications. Built for the transaxle output shaft, it helps maintain proper lubricant retention at the shaft exit point while keeping road contaminants out.

Compatible with 2003-2016 Toyota Corolla, 2008-2014 Scion xD, 2009-2013 Toyota Matrix, 2003-2008 Toyota Matrix, 2000-2005 Toyota Celica, and 2003 Pontiac Vibe, left.

Key Features

• Manual transmission output shaft seal for the left side
• Polyacrylate sealing surface type for application-specific sealing performance
• Outside diameter: 2.493 in.
• Shaft diameter: 1.378 in.
• Width: 0.394 in.
• SKF part number 13616

Product Details

SKF has a long history in shaft seal engineering, beginning with the first integrated shaft seal design in 1928. This manual transaxle output shaft seal is manufactured to specific design requirements using premium materials selected for the operating environment of the transmission. For drivers and technicians servicing a Toyota Corolla, Toyota Matrix, Scion xD, Toyota Celica, or Pontiac Vibe, SKF 13616 provides a direct-fit sealing solution for the left output shaft location.

This part cross-references 88974654 and 9031135044 for the same application.

What It Helps Address

• Transmission fluid seepage at the left output shaft
• Contamination entering the transaxle through a worn seal
• Leak-related low lubricant level concerns
• Seal wear from age, heat, and normal driveline movement
• Service replacement during manual transaxle repair

Installation Notes and Tips

Confirm the left-side application and match the shaft diameter, outside diameter, and width before installation. Inspect the shaft surface and seal bore for wear, scoring, or debris, and clean the sealing area thoroughly before fitting the new seal. Verify the transmission fluid level after service and check for leaks during a road test.

Quality Assurance

SKF manufactures seals to high quality standards with an emphasis on long service life and dependable sealing performance. The brand’s seal engineering experience and material selection support consistent operation in manual transaxle service.
