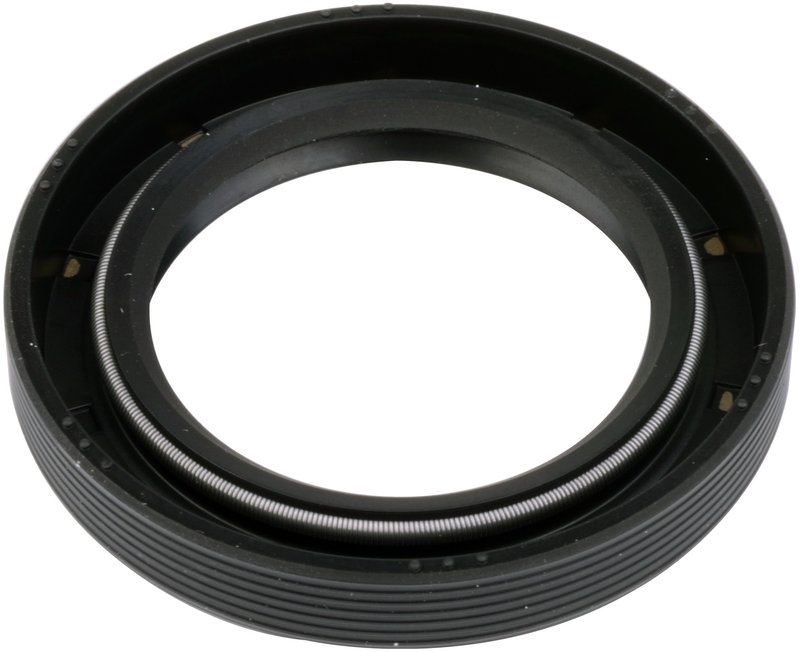

SKF 13624 Manual Transmission Seal - Front, Front Forward, Rear or Right

Overview of the SKF 13624 Manual Transmission Seal

The SKF 13624 manual transmission seal is engineered to provide reliable sealing performance for a range of manual transmissions. Designed with precision dimensions and a nitrile sealing surface, this seal is compatible with various BMW, Chevrolet, Chrysler, Dodge, Ford, Geo, Mitsubishi, Plymouth, Suzuki, and Toyota models.

• Width: 0.315 inches for optimal fit
• Outside Diameter: 2.058 inches ensuring proper housing compatibility
• Shaft Diameter: 1.378 inches tailored for specific transmission shafts
• Sealing Surface Type: Durable nitrile material for effective fluid retention
• Compatible with multiple manual transmission applications across popular vehicle makes and models

Technical Details and Specifications

The SKF 13624 manual transmission seal features a nitrile sealing surface, known for its resistance to oil, heat, and wear, making it suitable for demanding transmission environments. The seal’s precise dimensions—0.315 inches in width, 2.058 inches outside diameter, and 1.378 inches shaft diameter—ensure a secure fit that minimizes leakage and maintains transmission integrity. This part number 13624 is designed to meet OEM standards, providing a dependable sealing solution for manual transmissions in vehicles such as the BMW 318i, 325i, 535i, Ford F-150, Chevrolet Caravan, and Toyota Avalon.

Compatible Vehicles and Applications

This manual transmission seal is compatible with a broad range of vehicles, including but not limited to:

• BMW models: 318i, 320i, 325i, 525i, 535i, 635CSi, M3, M5, M6
• Chevrolet models: Caravan, Grand Caravan, Silverado
• Chrysler and Dodge models: LeBaron, Charger, Dakota, Ram
• Ford models: F-150, E-150 Econoline, Explorer
• Other makes: Mitsubishi Lancer, Toyota Avalon, Suzuki Swift, Plymouth Sundance

Common Issues Addressed by the SKF 13624 Seal

• Prevents manual transmission fluid leaks that can cause shifting problems
• Reduces contamination ingress to protect transmission components
• Maintains proper lubrication within the transmission system
• Helps avoid premature wear of transmission shafts and bearings
• Ensures consistent transmission performance and longevity

Installation Notes and Tips

When installing the SKF 13624 manual transmission seal, ensure the shaft and housing surfaces are clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the original part to maintain proper sealing function. Lubricate the sealing surface lightly with transmission fluid before installation to facilitate a smooth fit and prevent damage. Always consult the vehicle’s service manual for torque specifications and installation procedures specific to the make and model.

Quality Assurance and Warranty

SKF manufactures the 13624 manual transmission seal to meet stringent quality standards, ensuring durability and reliable performance. The nitrile sealing surface is tested for resistance to heat, oil, and wear under typical operating conditions. While specific warranty terms may vary, SKF products generally come with a limited warranty against manufacturing defects. For detailed warranty information, refer to SKF’s official documentation or contact authorized distributors.
