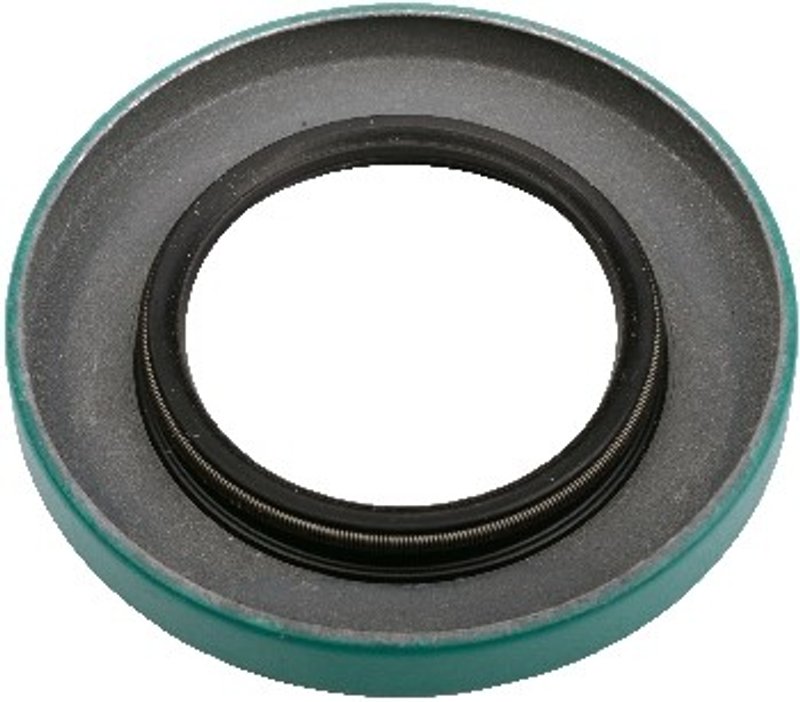

SKF 13972 Differential Pinion Seal - Rear
| Brand | SKF 13972 |
|---|---|
| Position | Rear |
| Width | 0.315 |
| Outside Diameter | 2.526 |
| Sealing Surface Type | Nitrile |
| Shaft Diameter | 1.378 |
| Fits | Nissan · 31 vehicles |
OE-style sealing design. Made to specific dimensions for the application and environment.
Nitrile sealing surface. Provides durable contact where the shaft and seal meet.
SKF sealing heritage. Built by a brand with long experience in shaft seal engineering.
Cross-references 38189A6100, 145813972 and 975913972 for the same application. See all 4.
SKF differential pinion seal for Nissan
This SKF differential pinion seal is built for rear axle sealing applications on classic Nissan driveline setups. It uses a nitrile sealing surface and application-specific dimensions to help maintain proper lubricant retention at the pinion area.
- Fits rear differential pinion applications on select Nissan models.
- Nitrile sealing surface for dependable contact with the shaft.
- Application-specific outside diameter and shaft diameter for proper sealing fit.
- SKF seal engineering backed by long-running sealing design expertise.
Fitment details
Compatible with rear applications on Nissan 210, Nissan 510, Nissan 200SX, Nissan B210, Nissan 710, Nissan 610, Nissan 620 Pickup, Nissan 521 Pickup, and Nissan 520 Pickup. Fits 1982-1981 Nissan 210, rear; 1981-1978 Nissan 510, rear; 1980-1977 Nissan 200SX, rear; 1978-1975 Nissan B210, rear; 1977-1974 Nissan 710, rear; 1973 Nissan 610, rear; 1973-1972 Nissan 620 Pickup, rear; 1972-1969 Nissan 521 Pickup, rear; 1968-1965 Nissan 520 Pickup, rear. This part cross-references 38189A6100 and 145813972 for the same application.
Used to address
- Gear oil seepage at the differential pinion area
- Contamination entering the sealed driveline housing
- Wear-related sealing loss from an aged pinion seal
- Improper sealing after service on the rear differential
Installation notes
Verify shaft diameter, outside diameter, and seal width before installation. Clean the sealing bore and shaft surface thoroughly, and inspect the pinion area for wear or damage that could affect seal performance. Confirm the seal orientation matches the differential design before pressing it into place.
Quality assurance
SKF seals are manufactured to specific designs using premium materials and are built to meet high quality standards for long service life and safety. Part number 13972 is supported by SKF’s long history in sealing technology.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1982 | Nissan | 210 | — | Rear | — |
| 1981 | Nissan | 210 | — | Rear | — |
| 1981 | Nissan | 510 | — | Rear | — |
| 1980 | Nissan | 200SX | — | Rear | — |
| 1980 | Nissan | 210 | — | Rear | — |
| 1980 | Nissan | 510 | — | Rear | — |
| 1979 | Nissan | 200SX | — | Rear | — |
| 1979 | Nissan | 210 | — | Rear | — |
| 1979 | Nissan | 510 | — | Rear | — |
| 1978 | Nissan | 200SX | — | Rear | — |
| 1978 | Nissan | 510 | — | Rear | — |
| 1978 | Nissan | B210 | — | Rear | — |
| 1977 | Nissan | 200SX | — | Rear | — |
| 1977 | Nissan | 710 | — | Rear | — |
| 1977 | Nissan | B210 | — | Rear | — |
| 1976 | Nissan | 710 | — | Rear | — |
| 1976 | Nissan | B210 | — | Rear | — |
| 1975 | Nissan | 710 | — | Rear | — |
| 1975 | Nissan | B210 | — | Rear | — |
| 1974 | Nissan | 710 | — | Rear | — |
| 1973 | Nissan | 610 | Wagon | Rear | — |
| 1973 | Nissan | 620 Pickup | — | Rear | — |
| 1972 | Nissan | 521 Pickup | — | Rear | — |
| 1972 | Nissan | 620 Pickup | — | Rear | — |
| 1971 | Nissan | 521 Pickup | — | Rear | — |
| 1970 | Nissan | 521 Pickup | — | Rear | — |
| 1969 | Nissan | 521 Pickup | — | Rear | — |
| 1968 | Nissan | 520 Pickup | — | Rear | — |
| 1967 | Nissan | 520 Pickup | — | Rear | — |
| 1966 | Nissan | 520 Pickup | — | Rear | — |
| 1965 | Nissan | 520 Pickup | — | Rear | — |
