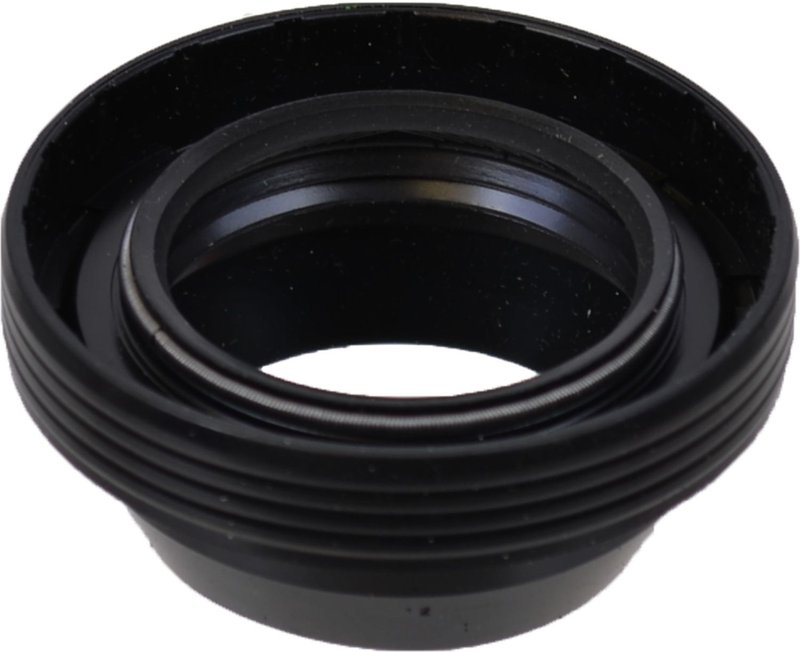

SKF 14569 Manual Transmission Seal - Rear

SKF 14569 Manual Transmission Seal

SKF 14569 is a manual transmission seal built for rear applications that need controlled fluid retention and contamination resistance. It uses a polyacrylate sealing surface and precise dimensions for the shaft and housing interface, making it a direct-fit service part for select Pontiac GTO, Chevrolet Camaro, and Pontiac Firebird applications.

Key Features

• Manual transmission seal for rear position service
• Polyacrylate sealing surface type for consistent sealing performance
• Shaft diameter: 1.457 in.
• Outside diameter: 2.384 in.
• Width: 0.433 in.
• SKF part number 14569 for catalog and service matching

Application Details

Compatible with rear manual transmission service on 2004-2006 Pontiac GTO, 1994-2002 Chevrolet Camaro, and 1993-2002 Pontiac Firebird. This SKF 14569 seal is also referenced by part number 14569 in service and replacement searches, and it cross-references 12530278 for the same application.

What It Helps Address

• Transmission fluid seepage at the rear seal area
• Contamination entering the transmission through a worn seal
• Leak-related low fluid condition during manual transmission operation
• Seal wear from age, heat, and driveline use

Installation Notes

Verify shaft diameter, outside diameter, and width before installation to confirm the seal matches the transmission housing and shaft dimensions. Clean the sealing surface and inspect the shaft for grooves or damage before installing the new seal. For best results, follow the vehicle service procedure for rear manual transmission seal replacement on the specific Pontiac GTO, Chevrolet Camaro, or Pontiac Firebird application.

Quality Assurance

SKF has a long history in seal engineering, including the development of the first integrated shaft seal in 1928. SKF designs seals to application-specific dimensions and manufactures them to high quality standards for durability and safe operation. Part number 14569 reflects that engineering focus for rear manual transmission service.
