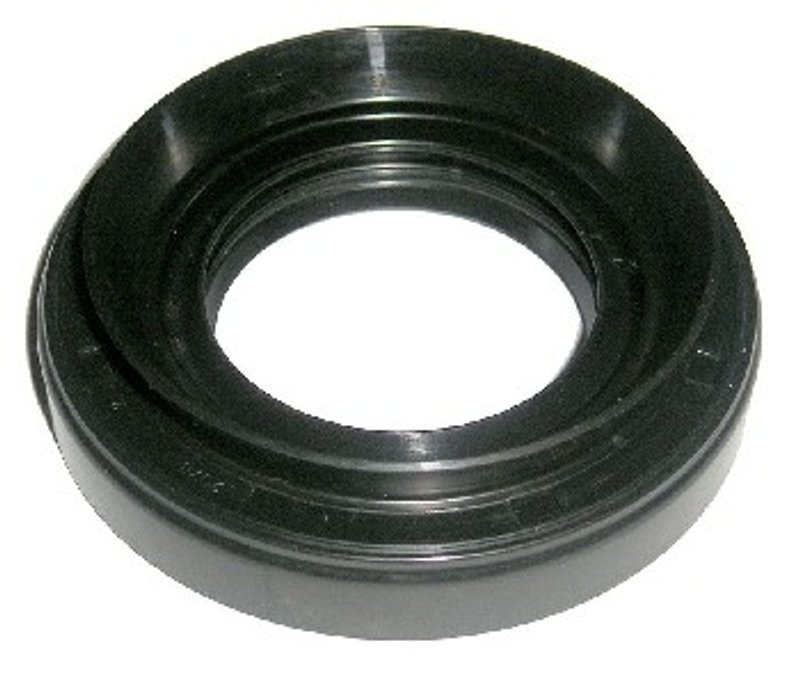

SKF 14762 Differential Pinion Seal - Front or Rear
OE Quality 60-Day Returns
SKF

SKF 14762 Differential Pinion Seal - Front or Rear

Brand SKF 14762
Position Front and Rear
Width 0.433
Outside Diameter 2.844
Sealing Surface Type Nitrile
Shaft Diameter 1.575
Fits Chevrolet, Geo, and Suzuki · 107 vehicles

Nitrile sealing surface. Built for dependable contact and lubricant retention in driveline sealing.

Application-specific sizing. 0.433 width, 2.844 outside diameter, and 1.575 shaft diameter.

SKF seal engineering. Backed by a long history of seal development and premium materials.

Cross-references 09283-40022, 96061234 and 145814762 for the same application. See all 5.

$22.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $22.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Differential Pinion Seal options

SKF differential pinion seal for driveline sealing

The SKF 14762 differential pinion seal is built for applications that need reliable lubricant retention and contamination control at the pinion shaft. It uses a nitrile sealing surface and application-specific dimensions to match the required shaft and housing interface.

Fits a wide range of Suzuki, Chevrolet, and Geo driveline applications, including Suzuki Grand Vitara, Suzuki XL-7, Suzuki Vitara, Chevrolet Tracker, Suzuki Sidekick, Geo Tracker, and Suzuki Samurai. The SKF 14762 is a direct-fit sealing component for front and rear differential service where the pinion seal is specified.

Key features

  • Nitrile sealing surface for dependable contact at the shaft interface
  • Application-specific dimensions: 0.433 width, 2.844 outside diameter, and 1.575 shaft diameter
  • Designed for differential pinion sealing in driveline and axle service
  • SKF engineering backed by a long history in seal development
  • Fits multiple Suzuki, Chevrolet, and Geo applications across front and rear positions

Detailed description

SKF 14762 is a differential pinion seal made for vehicles that require a precise seal at the pinion shaft to keep gear lubricant contained and road contaminants out. The nitrile sealing surface is selected for the operating environment of driveline sealing, while the listed dimensions support correct fitment in the specified applications. This part cross-references Monroe Shocks & Struts (e.g., 09283-40022, 96061234) for the same application.

Compatible applications include Suzuki Grand Vitara, Suzuki XL-7, Suzuki Vitara, Chevrolet Tracker, Suzuki Sidekick, Geo Tracker, and Suzuki Samurai. Use SKF 14762 when servicing a differential pinion seal on these vehicles and the original seal dimensions match the listed specifications.

What it is used for

  • Stopping gear oil seepage at the pinion shaft
  • Reducing contamination entry into the differential housing
  • Replacing a worn or hardened seal surface
  • Restoring proper sealing after driveline service
  • Addressing leaks around the differential pinion area

Installation notes and tips

Confirm shaft diameter, outside diameter, and width against the original seal before installation. Inspect the pinion yoke and sealing surface for wear, scoring, or corrosion, since surface damage can shorten seal life. Clean the housing bore thoroughly and install the seal squarely to avoid distortion.

Quality assurance

SKF has a long history in seal design and manufacturing, including early integrated shaft seal development. SKF seals are produced to specific designs with premium materials and quality standards intended to support long service life and safe operation.

This part fits 107 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2013SuzukiGrand Vitara——Rear—
2012SuzukiGrand Vitara——Rear—
2011SuzukiGrand Vitara——Rear—
2010SuzukiGrand Vitara——Rear—
2009SuzukiGrand Vitara——Rear—
2008SuzukiGrand Vitara——Rear—
2007SuzukiGrand Vitara——Rear—
2006SuzukiGrand Vitara——Rear—
2006SuzukiXL-7——Front—
2006SuzukiXL-7——Rear—
2005SuzukiGrand Vitara——Front—
2005SuzukiGrand Vitara——Rear—
2005SuzukiXL-7——Front—
2005SuzukiXL-7——Rear—
2004SuzukiGrand Vitara——Front—
2004SuzukiGrand Vitara——Rear—
2004SuzukiVitara——Front—
2004SuzukiVitara——Rear—
2004SuzukiXL-7——Front—
2004SuzukiXL-7——Rear—
2003ChevroletTracker——Front—
2003ChevroletTracker——Rear—
2003SuzukiGrand Vitara——Front—
2003SuzukiGrand Vitara——Rear—
2003SuzukiVitara——Front—
2003SuzukiVitara——Rear—
2003SuzukiXL-7——Front—
2003SuzukiXL-7——Rear—
2002ChevroletTracker——Front—
2002ChevroletTracker——Rear—
2002SuzukiGrand Vitara——Front—
2002SuzukiGrand Vitara——Rear—
2002SuzukiVitara——Front—
2002SuzukiVitara——Rear—
2002SuzukiXL-7——Front—
2002SuzukiXL-7——Rear—
2001ChevroletTracker——Front—
2001ChevroletTracker——Rear—
2001SuzukiGrand Vitara2.5LV6Front—
2001SuzukiGrand Vitara2.5LV6Rear—
2001SuzukiVitara——Front—
2001SuzukiVitara——Rear—
2000ChevroletTracker——Front—
2000ChevroletTracker——Rear—
2000SuzukiGrand Vitara——Front—
2000SuzukiGrand Vitara——Rear—
2000SuzukiVitara——Front—
2000SuzukiVitara——Rear—
1999ChevroletTracker——Front—
1999ChevroletTracker——Rear—
1999SuzukiGrand Vitara——Front—
1999SuzukiGrand Vitara——Rear—
1999SuzukiVitara——Front—
1999SuzukiVitara——Rear—
1998ChevroletTracker——Front—
1998ChevroletTracker——Rear—
1998SuzukiSidekick——Front—
1997GeoTracker——Front—
1997GeoTracker——Rear—
1997SuzukiSidekick——Front—
1996GeoTracker——Front—
1996GeoTracker——Rear—
1996SuzukiSidekick——Front—
1995GeoTracker——Front—
1995GeoTracker——Rear—
1995SuzukiSamurai——Front—
1995SuzukiSamurai——Rear—
1995SuzukiSidekick——Front—
1994GeoTracker——Front—
1994GeoTracker——Rear—
1994SuzukiSamurai——Front—
1994SuzukiSamurai——Rear—
1994SuzukiSidekick——Front—
1993GeoTracker——Front—
1993GeoTracker——Rear—
1993SuzukiSamurai——Front—
1993SuzukiSamurai——Rear—
1993SuzukiSidekick——Front—
1993SuzukiSidekick——Rear—
1992GeoTracker——Front—
1992GeoTracker——Rear—
1992SuzukiSamurai——Front—
1992SuzukiSamurai——Rear—
1992SuzukiSidekick——Front—
1992SuzukiSidekick——Rear—
1991GeoTracker——Front—
1991GeoTracker——Rear—
1991SuzukiSamurai——Front—
1991SuzukiSamurai——Rear—
1991SuzukiSidekick——Front—
1991SuzukiSidekick——Rear—
1990GeoTracker——Front—
1990GeoTracker——Rear—
1990SuzukiSamurai——Front—
1990SuzukiSamurai——Rear—
1990SuzukiSidekick——Front—
1990SuzukiSidekick——Rear—
1989GeoTracker——Front—
1989GeoTracker——Rear—
1989SuzukiSamurai——Front—
1989SuzukiSamurai——Rear—
1989SuzukiSidekick——Front—
1989SuzukiSidekick——Rear—
1988SuzukiSamurai——Front—
1988SuzukiSamurai——Rear—
1987SuzukiSamurai——Rear—
1986SuzukiSamurai——Rear—
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
09283-4002296061234145814762975914762CHR 14762
