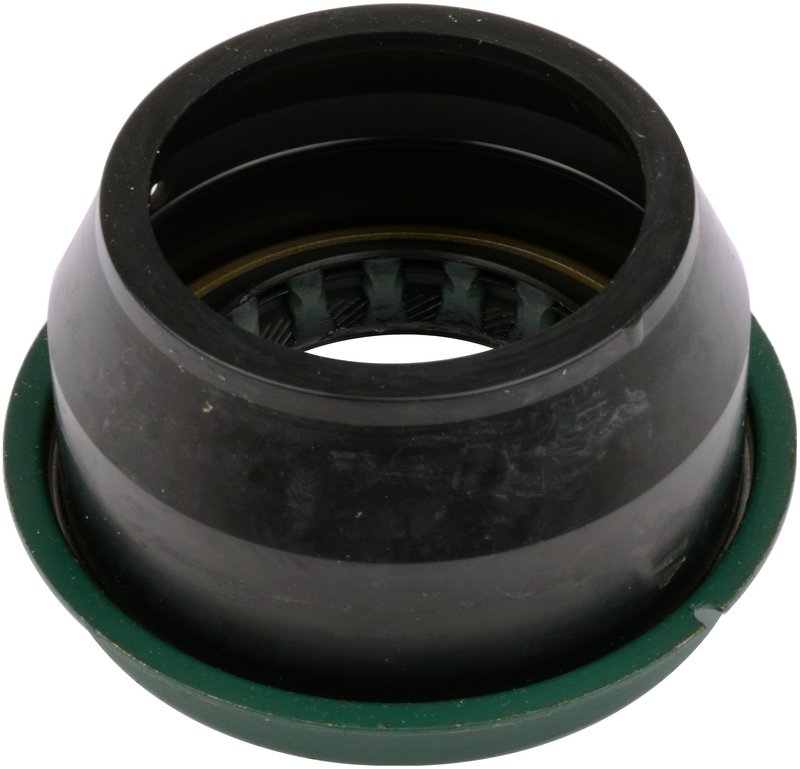

SKF 15535 Manual Transmission Seal - Rear

Overview of SKF Manual Transmission Seal 15535

The SKF Manual Transmission Seal 15535 is designed for reliable sealing performance in manual transmissions of select Chrysler and Dodge vehicles. Engineered with nitrile sealing surfaces, this seal ensures durability and effective protection against leaks in demanding automotive applications.

• Width: 1.520 inches for precise fitment
• Outside Diameter: 2.254 inches to match transmission housing
• Shaft Diameter: 1.563 inches for accurate shaft sealing
• Sealing Surface Type: Nitrile material for resistance to oil and wear
• Compatible with multiple Chrysler and Dodge models including 300, Challenger, Charger, Dart, and more

Technical Details and Specifications

This manual transmission seal from SKF features a nitrile sealing surface, known for its resistance to petroleum-based fluids and mechanical wear. The seal’s dimensions—1.520 inches in width, 2.254 inches outside diameter, and 1.563 inches shaft diameter—are engineered to provide a secure fit and maintain transmission integrity. The part number 15535 corresponds specifically to this configuration, ensuring compatibility with manual transmissions in Chrysler and Dodge vehicles such as the 300, Challenger, Charger, Dart, Imperial, Monaco, Newport, New Yorker, and Town & Country models.

Applications and Problem Solving

• Prevents transmission fluid leaks in manual transmissions
• Reduces contamination from dirt and debris entering the transmission
• Maintains proper lubrication by sealing the shaft interface
• Helps avoid premature wear of transmission components
• Addresses common seal failure issues in Chrysler and Dodge manual transmissions

Installation Notes and Tips

When installing the SKF Manual Transmission Seal 15535, ensure the transmission housing and shaft are clean and free of debris. Use appropriate tools to press the seal evenly into place without distortion. Verify the seal’s orientation matches the original part to maintain proper sealing function. Lubricate the sealing surface lightly with transmission fluid before installation to reduce initial wear.

Quality Assurance and Warranty

SKF is a recognized manufacturer of automotive sealing solutions, adhering to industry standards for material quality and dimensional accuracy. The Manual Transmission Seal 15535 is manufactured to meet OEM specifications for Chrysler and Dodge vehicles. While specific warranty details may vary, SKF products typically come with a limited warranty against manufacturing defects, providing confidence in product reliability.
