Home› Transfer Case > Gaskets and Sealing Systems› SKF 15635 Transfer Case Output Shaft Seal - Front or Rear

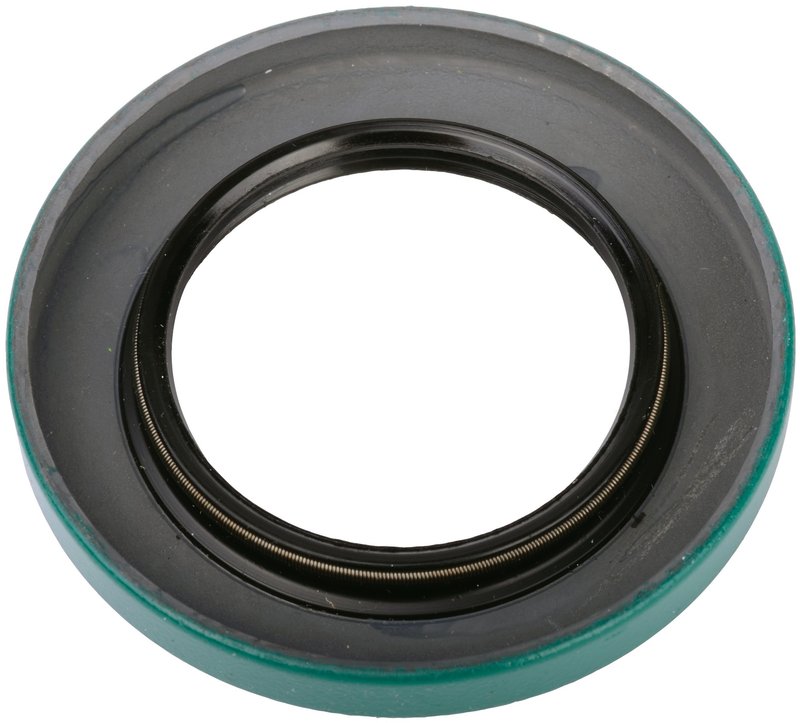

SKF 15635 Transfer Case Output Shaft Seal - Front or RearOE Quality 60-Day Returns
Part #: 15635

SKF 15635 Transfer Case Output Shaft Seal - Front or Rear

Front
35 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$25.02Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Jeep, International, and Ford, CJ7, Scrambler, CJ5, Scout II, Bronco, and Scout
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Transfer Case Output Shaft Seal options

SKF Transfer Case Output Shaft Seal 15635

SKF 15635 is a transfer case output shaft seal built for applications that need reliable fluid retention at the output shaft. It uses a nitrile sealing surface and precise dimensions to match the shaft and housing requirements found in select Jeep and Ford transfer case setups.

  • Transfer case output shaft seal for front or rear positions, depending on application
  • Nitrile sealing surface for fluid control at the shaft interface
  • Outside diameter: 2.506 in.
  • Shaft diameter: 1.563 in.
  • Width: 0.313 in.
  • SKF part number 15635

Application Details

This SKF transfer case output shaft seal is specified for 1980-1986 Jeep CJ7, 1981-1985 Jeep Scrambler, 1980-1983 Jeep CJ5, and 1975-1977 Ford Bronco applications listed with New Process 300 or Spicer 20 transfer cases. It is a direct-fit sealing component for transfer case service where the output shaft seal must retain lubricant and keep external contamination out. This part number 15635 also cross-references 18-463-9 for the same application.

What It Helps Address

  • Transfer case fluid seepage at the output shaft
  • Contamination entering the transfer case through a worn seal
  • Wet housing or residue around the transfer case output area
  • Seal wear from age, heat, and drivetrain movement
  • Service replacement on Jeep CJ7, Jeep Scrambler, Jeep CJ5, and Ford Bronco transfer cases

Installation Notes

Verify shaft diameter, outside diameter, and seal width before installation. Inspect the output shaft surface and seal bore for wear, scoring, or corrosion, and clean the sealing area thoroughly before assembly. Confirm the transfer case position and model listed for your vehicle before ordering SKF 15635.

Quality Assurance

SKF has a long history in seal engineering and manufactures seals to specific designs using premium materials selected for the application and operating environment. The brand’s sealing products are built to meet high quality standards for durability and safe operation.

This part fits 35 vehicles. Search below:

YearMakeModelPositionNotes
1986JeepCJ7FrontNew Process 300
1986JeepCJ7RearNew Process 300
1985JeepCJ7FrontNew Process 300
1985JeepCJ7RearNew Process 300
1985JeepScramblerFrontNew Process 300
1985JeepScramblerRearNew Process 300
1984JeepCJ7FrontNew Process 300
1984JeepCJ7RearNew Process 300
1984JeepScramblerFrontNew Process 300
1984JeepScramblerRearNew Process 300
1983JeepCJ5FrontNew Process 300
1983JeepCJ5RearNew Process 300
1983JeepCJ7FrontNew Process 300
1983JeepCJ7RearNew Process 300
1983JeepScramblerFrontNew Process 300
1983JeepScramblerRearNew Process 300
1982JeepCJ5FrontNew Process 300
1982JeepCJ5RearNew Process 300
1982JeepCJ7FrontNew Process 300
1982JeepCJ7RearNew Process 300
1982JeepScramblerFrontNew Process 300
1982JeepScramblerRearNew Process 300
1981JeepCJ5FrontNew Process 300
1981JeepCJ5RearNew Process 300
1981JeepCJ7FrontNew Process 300
1981JeepCJ7RearNew Process 300
1981JeepScramblerFrontNew Process 300
1981JeepScramblerRearNew Process 300
1980JeepCJ5FrontNew Process 300
1980JeepCJ5RearNew Process 300
1980JeepCJ7FrontNew Process 300
1980JeepCJ7RearNew Process 300
1977FordBroncoRearSpicer 20
1976FordBroncoRearSpicer 20
1975FordBroncoRearSpicer 20

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
