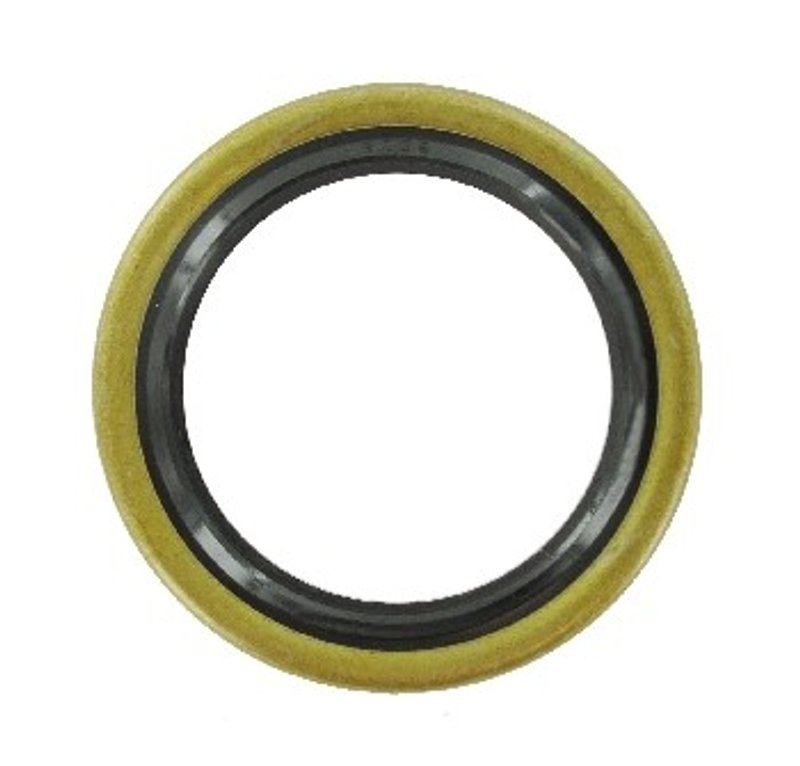

SKF 15807 Transfer Case Output Shaft Seal - Front or Rear
| Brand | SKF 15807 |
|---|---|
| Position | Front and Rear |
| Width | 0.217 |
| Outside Diameter | 2.131 |
| Sealing Surface Type | Nitrile |
| Shaft Diameter | 1.575 |
| Fits | Chevrolet, Geo, Mazda, Mercury, and Suzuki · 131 vehicles |
Nitrile sealing surface. Provides reliable contact for transfer case fluid control.
Application-specific dimensions. Sized for the correct shaft and bore interface.
SKF seal heritage. Built on more than a century of sealing development.
Cross-references 0187-33-065, 09283-40021 and 96057742 for the same application. See all 6.
Transfer Case Output Shaft Seal
Restore sealing performance in the transfer case with this SKF output shaft seal, part number 15807. It is built with a nitrile sealing surface and application-specific dimensions to help maintain lubricant retention and keep contaminants out.
- Fits transfer case applications with a 1.575 shaft diameter and 2.131 outside diameter.
- Nitrile sealing surface for dependable contact and fluid control.
- Application-specific seal design for transfer case service.
- SKF sealing technology backed by more than a century of seal development.
Application Details
Compatible with a wide range of transfer case applications, including Fits 1999-2005 Suzuki Grand Vitara, front; Fits 2002-2005 Suzuki XL-7, front; Fits 1998-2004 Chevrolet Tracker, front and rear; and Fits 1979-1985 Mazda RX-7, front. Additional coverage includes Suzuki Vitara, Sidekick, X-90, Geo Tracker, Mercury Capri, Mercury Tracer, and several Mazda models. Part number 15807 is used across multiple transfer case sealing applications, including Suzuki Grand Vitara and Chevrolet Tracker fitments.
This part cross-references Monroe Shocks & Struts (e.g., 0187-33-065, 09283-40021) for the same application.
What It Helps Address
- Transfer case fluid seepage at the output shaft.
- Contamination entering the sealed area.
- Wear-related sealing loss from age or mileage.
- Service replacement for leaking or damaged shaft seals.
Installation Notes
Verify shaft diameter, outside diameter, and seal width before installation. Clean the sealing bore and shaft surface thoroughly, and inspect for grooves or damage that could affect sealing performance. Confirm the vehicle position and transfer case configuration against the fitment list before ordering.
Quality Assurance
SKF has a long history in seal engineering, including the development of the first integrated shaft seal in 1928. SKF seals are manufactured to specific designs using premium materials and quality standards focused on long service life and reliable sealing performance.
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2008 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2007 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2006 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2005 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2005 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2005 | Suzuki | XL-7 | — | — | — | Front | — |
| 2004 | Chevrolet | Tracker | — | — | — | Front | — |
| 2004 | Chevrolet | Tracker | — | 2.5L | V6 | Rear | — |
| 2004 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2004 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2004 | Suzuki | Vitara | — | — | — | Front | — |
| 2004 | Suzuki | Vitara | — | — | — | N/A | — |
| 2004 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2004 | Suzuki | XL-7 | — | — | — | Front | — |
| 2003 | Chevrolet | Tracker | — | — | — | Front | — |
| 2003 | Chevrolet | Tracker | — | — | — | Rear | — |
| 2003 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2003 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2003 | Suzuki | Vitara | — | — | — | Front | — |
| 2003 | Suzuki | Vitara | — | — | — | N/A | — |
| 2003 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2003 | Suzuki | XL-7 | — | — | — | Front | — |
| 2002 | Chevrolet | Tracker | — | — | — | Front | — |
| 2002 | Chevrolet | Tracker | — | — | — | Rear | — |
| 2002 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2002 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2002 | Suzuki | Vitara | — | — | — | Front | — |
| 2002 | Suzuki | Vitara | — | — | — | N/A | — |
| 2002 | Suzuki | XL-7 | — | — | — | N/A | — |
| 2002 | Suzuki | XL-7 | — | — | — | Front | — |
| 2001 | Chevrolet | Tracker | — | — | — | Front | — |
| 2001 | Chevrolet | Tracker | — | — | — | Rear | — |
| 2001 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2001 | Suzuki | Grand Vitara | — | 2.5L | V6 | N/A | — |
| 2001 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2001 | Suzuki | Vitara | — | — | — | Front | — |
| 2001 | Suzuki | Vitara | — | — | — | N/A | — |
| 2000 | Chevrolet | Tracker | — | — | — | Front | — |
| 2000 | Chevrolet | Tracker | — | — | — | Rear | — |
| 2000 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 2000 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 2000 | Suzuki | Vitara | — | — | — | Front | — |
| 2000 | Suzuki | Vitara | — | — | — | N/A | — |
| 1999 | Chevrolet | Tracker | — | — | — | Front | — |
| 1999 | Chevrolet | Tracker | — | — | — | Rear | — |
| 1999 | Suzuki | Grand Vitara | — | — | — | Front | — |
| 1999 | Suzuki | Grand Vitara | — | — | — | N/A | — |
| 1999 | Suzuki | Vitara | — | — | — | Front | — |
| 1999 | Suzuki | Vitara | — | — | — | N/A | — |
| 1998 | Chevrolet | Tracker | — | — | — | Front | — |
| 1998 | Chevrolet | Tracker | — | — | — | Rear | — |
| 1998 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1998 | Suzuki | X-90 | — | — | — | Rear | — |
| 1997 | Geo | Tracker | — | — | — | Front | — |
| 1997 | Geo | Tracker | — | — | — | Rear | — |
| 1997 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1997 | Suzuki | X-90 | — | — | — | Rear | — |
| 1996 | Geo | Tracker | — | — | — | Front | — |
| 1996 | Geo | Tracker | — | — | — | Rear | — |
| 1996 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1996 | Suzuki | X-90 | — | — | — | Rear | — |
| 1995 | Geo | Tracker | — | — | — | Front | — |
| 1995 | Geo | Tracker | — | — | — | Rear | — |
| 1995 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1994 | Geo | Tracker | — | — | — | Front | — |
| 1994 | Geo | Tracker | — | — | — | Rear | — |
| 1994 | Mercury | Capri | — | — | — | Rear | — |
| 1994 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1993 | Geo | Tracker | — | — | — | Front | — |
| 1993 | Geo | Tracker | — | — | — | Rear | — |
| 1993 | Mercury | Capri | — | — | — | Rear | — |
| 1993 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1992 | Geo | Tracker | — | — | — | Front | — |
| 1992 | Geo | Tracker | — | — | — | Rear | — |
| 1992 | Mercury | Capri | — | — | — | Rear | — |
| 1992 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1991 | Geo | Tracker | — | — | — | Front | — |
| 1991 | Geo | Tracker | — | — | — | Rear | — |
| 1991 | Mercury | Capri | — | — | — | Rear | — |
| 1991 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1990 | Geo | Tracker | — | — | — | Front | — |
| 1990 | Geo | Tracker | — | — | — | Rear | — |
| 1990 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1989 | Geo | Tracker | — | — | — | Front | — |
| 1989 | Geo | Tracker | — | — | — | Rear | — |
| 1989 | Mercury | Tracer | Hatchback | — | — | Rear | — |
| 1989 | Suzuki | Sidekick | — | — | — | N/A | — |
| 1988 | Mercury | Tracer | Hatchback | — | — | Rear | — |
| 1987 | Mercury | Tracer | Hatchback | — | — | Rear | — |
| 1985 | Mazda | RX-7 | — | — | — | Front | — |
| 1984 | Mazda | RX-7 | — | — | — | Front | — |
| 1983 | Mazda | RX-7 | — | — | — | Front | — |
| 1982 | Mazda | 626 | — | — | — | Front | — |
| 1982 | Mazda | RX-7 | — | — | — | Front | — |
| 1981 | Mazda | 626 | — | — | — | Front | — |
| 1981 | Mazda | RX-7 | — | — | — | Front | — |
| 1980 | Mazda | 626 | — | — | — | Front | — |
| 1980 | Mazda | GLC | — | — | — | Front | — |
| 1980 | Mazda | RX-7 | — | — | — | Front | — |
| 1979 | Mazda | 626 | — | — | — | Front | — |
| 1979 | Mazda | GLC | — | — | — | Front | — |
| 1979 | Mazda | RX-7 | — | — | — | Front | — |
| 1978 | Mazda | Cosmo | — | — | — | Front | — |
| 1978 | Mazda | GLC | — | — | — | Front | — |
| 1978 | Mazda | RX-3 | — | — | — | Front | — |
| 1978 | Mazda | RX-4 | — | — | — | Front | — |
| 1977 | Mazda | 808 | — | — | — | Front | — |
| 1977 | Mazda | Cosmo | — | — | — | Front | — |
| 1977 | Mazda | GLC | — | — | — | Front | — |
| 1977 | Mazda | Mizer | — | — | — | Front | — |
| 1977 | Mazda | RX-3 | — | — | — | Front | — |
| 1977 | Mazda | RX-4 | — | — | — | Front | — |
| 1976 | Mazda | 808 | — | — | — | Front | — |
| 1976 | Mazda | Cosmo | — | — | — | Front | — |
| 1976 | Mazda | Mizer | — | — | — | Front | — |
| 1976 | Mazda | RX-3 | — | — | — | Front | — |
| 1975 | Mazda | 808 | — | — | — | Front | — |
| 1975 | Mazda | RX-3 | — | — | — | Front | — |
| 1974 | Mazda | 808 | — | — | — | Front | — |
| 1974 | Mazda | RX-2 | — | — | — | Front | — |
| 1974 | Mazda | RX-3 | — | — | — | Front | — |
| 1973 | Mazda | 808 | — | — | — | Front | — |
| 1973 | Mazda | RX-2 | — | — | — | Front | — |
| 1973 | Mazda | RX-3 | — | — | — | Front | — |
| 1972 | Mazda | 618 | — | — | — | Front | — |
| 1972 | Mazda | 808 | — | — | — | Front | — |
| 1972 | Mazda | RX-2 | — | — | — | Front | — |
| 1972 | Mazda | RX-3 | — | — | — | Front | — |
| 1971 | Mazda | 616 | — | — | — | Front | — |
| 1971 | Mazda | RX-2 | — | — | — | Front | — |
