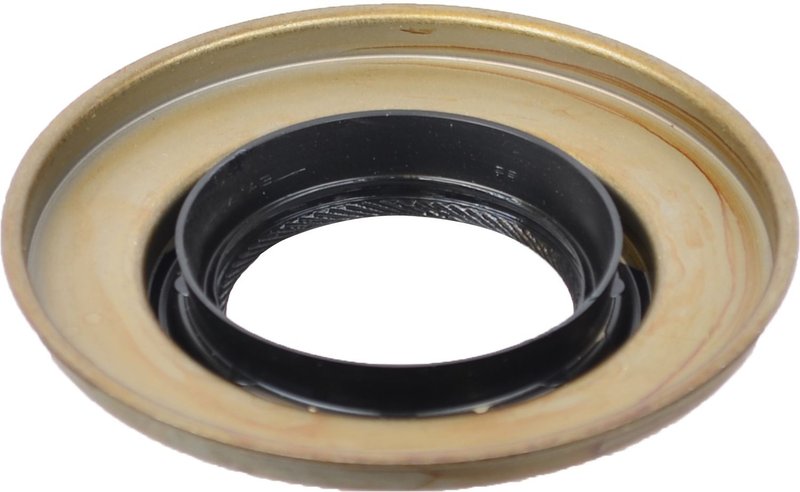

SKF 16134 Transfer Case Output Shaft Seal - Front

SKF 16134 Transfer Case Output Shaft Seal

SKF 16134 is a transfer case output shaft seal built for front-position applications that need reliable fluid retention and contamination control. It is designed with a polyacrylate sealing surface and precise dimensions to match the shaft and housing interface.

Compatible with select Toyota and Lexus 4WD platforms, including Toyota 4Runner, Toyota FJ Cruiser, Toyota Tacoma, and Lexus GX460 front applications.

Key Features

• Transfer case output shaft seal for front-position use
• Polyacrylate sealing surface type for the sealing interface
• Width: 0.649 in.
• Outside diameter: 2.989 in.
• Shaft diameter: 1.614 in.
• SKF part number 16134 for direct reference

Detailed Description

SKF 16134 is engineered for the transfer case output shaft area, where the seal must retain lubricant while helping keep dirt, water, and road debris out of the assembly. The listed dimensions, including 0.649-inch width, 2.989-inch outside diameter, and 1.614-inch shaft diameter, support accurate fitment at the sealing surface. SKF has a long history in seal design and manufacturing, and this part reflects that focus on material selection and dimensional control. This seal is a strong match for front transfer case service on 2010-2014 Lexus GX460, 2010-2014 Toyota 4Runner, 2009-2014 Toyota FJ Cruiser, and 2011-2014 Toyota Tacoma. The SKF 16134 part number is also useful when cross-checking service records or ordering by reference.

This part cross-references 9031141013 for the same application.

What It Helps Fix

• Transfer case fluid seepage at the output shaft
• Contamination entering the transfer case housing
• Wet residue around the front output seal area
• Seal wear from age, heat, and drivetrain movement
• Service issues on Toyota 4Runner, Toyota FJ Cruiser, Toyota Tacoma, and Lexus GX460 front transfer case applications

Installation Notes and Tips

Inspect the shaft surface and seal bore before installation. Clean the housing thoroughly, verify the seal orientation, and confirm the shaft diameter and outside diameter match the application before pressing the seal into place. For best results, replace any damaged mating surfaces and check for transfer case fluid leaks after service. Use the vehicle fitment details for 2010-2014 Lexus GX460, 2010-2014 Toyota 4Runner, 2009-2014 Toyota FJ Cruiser, and 2011-2014 Toyota Tacoma front applications before ordering.

Quality Assurance

SKF manufactures seals to defined design and material standards, using application-specific construction intended to support long service life and dependable sealing performance. SKF 16134 is built for consistent fit and function in transfer case service.
