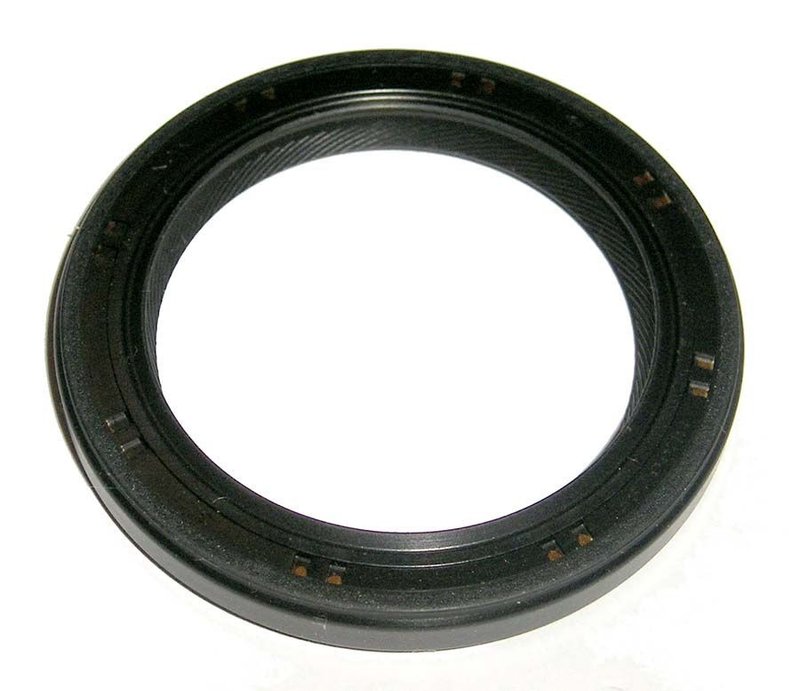

SKF 16464 Transfer Case Output Shaft Seal - Rear

SKF Transfer Case Output Shaft Seal 16464

SKF 16464 is a transfer case output shaft seal built for rear-position applications that need reliable fluid retention and contamination control. It is a direct-fit sealing component for select Jeep Compass, Jeep Patriot, Mitsubishi Endeavor, Mitsubishi Outlander, and Mitsubishi Lancer applications.

Key Features

• Transfer case output shaft seal for rear applications
• Polyacrylate sealing surface type for the specified application
• Outside diameter: 2.290 in.
• Shaft diameter: 1.693 in.
• Width: 0.276 in.
• SKF part number 16464 for application matching and service lookup

Application Details

This SKF transfer case output shaft seal is engineered around the listed dimensions and sealing surface material to help maintain proper sealing at the transfer case output shaft. It is used on rear-position driveline applications for 2007-2015 Jeep Compass, rear; 2007-2015 Jeep Patriot, rear; 2004-2008 Mitsubishi Endeavor, rear; 2010-2011 Mitsubishi Endeavor, rear; 2003-2006 Mitsubishi Outlander, rear; and 2003 Mitsubishi Lancer, N/A. This part cross-references 68005260AA and MR581295 for the same application.

What It Helps Address

• Transfer case fluid seepage at the output shaft
• Contamination entering the transfer case through a worn seal
• Leak-related driveline maintenance on Jeep Compass and Jeep Patriot models
• Seal wear on Mitsubishi Endeavor, Outlander, and Lancer applications
• Loss of sealing performance from age, heat, and mileage

Installation Notes and Tips

Verify shaft diameter, outside diameter, and width before installation to confirm the seal matches the transfer case housing and output shaft. Inspect the shaft surface for grooves, corrosion, or debris that can affect sealing performance. Clean the sealing area thoroughly and install the seal squarely to avoid distortion. Confirm the vehicle’s rear transfer case application and match the part number 16464 to the original seal reference before service.

Quality Assurance

SKF has a long history in seal engineering, including early integrated shaft seal development, and its seals are manufactured to specific designs using premium materials for the intended operating environment. SKF sealing products are built to high quality standards for long service life and dependable protection against lubricant loss and contaminant intrusion.
