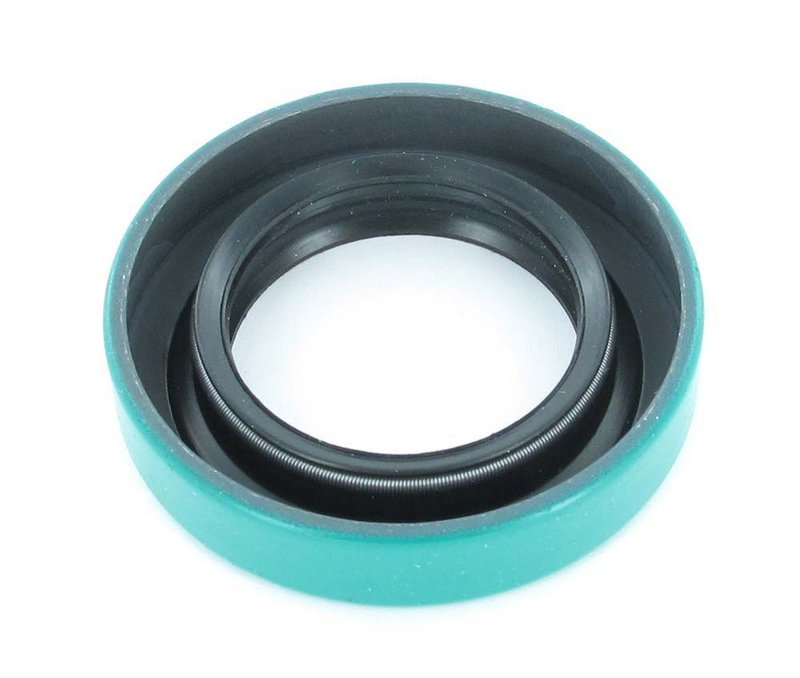

SKF 16500 Differential Pinion Seal - Rear

SKF Differential Pinion Seal 16500

SKF 16500 is a differential pinion seal built for rear axle service where gear oil retention and contamination control matter. It is specified with a 1.645 in shaft diameter, 2.660 in outside diameter, and 0.400 in width, with a polyacrylate sealing surface for the application.

Key Features

• Part number 16500 differential pinion seal for rear driveline service
• 1.645 in shaft diameter for confirmed axle applications
• 2.660 in outside diameter and 0.400 in width
• Polyacrylate sealing surface type
• Engineered by SKF, a long-established seal manufacturer

Application Details

This SKF differential pinion seal 16500 is used in rear axle assemblies that require a precise seal at the pinion shaft. It is a direct service part for select Buick, Oldsmobile, and Pontiac applications, including Fits 1965-1970 Buick LeSabre, rear; Fits 1968-1970 Buick Skylark, rear; Fits 1964-1967 Buick Skylark, rear; Fits 1966-1967 Oldsmobile Cutlass, rear; Fits 1964-1965 Oldsmobile Cutlass, rear; Fits 1964-1965 Pontiac GTO, rear; Fits 1964-1965 Pontiac LeMans, rear; and Fits 1964-1965 Pontiac Tempest, rear. This part cross-references CHR 16500 and NS8620N for the same application.

What This Seal Helps Address

• Rear differential gear oil leakage at the pinion area
• Contamination entering the axle housing through a worn seal
• Oil seepage that can leave residue around the pinion yoke
• Seal wear from age, heat, and driveline use
• Service replacement needs on classic Buick, Oldsmobile, and Pontiac rear axles

Installation Notes and Tips

Verify shaft diameter, outside diameter, and width before installation to confirm the seal matches the axle housing and pinion shaft. Inspect the pinion yoke and sealing surface for wear or scoring, since a damaged surface can shorten seal life. Clean the bore thoroughly and install the seal squarely to avoid distortion. Confirm the rear axle application and notes for your vehicle, especially on 1964-1967 Buick Skylark and 1968-1970 Buick Skylark listings with configuration-specific requirements.

Quality Assurance

SKF has a long history in seal design and manufacturing, with products built to specific application requirements using premium materials. The brand’s sealing technology is developed to help maintain lubricant retention and keep contaminants out in demanding driveline environments.
