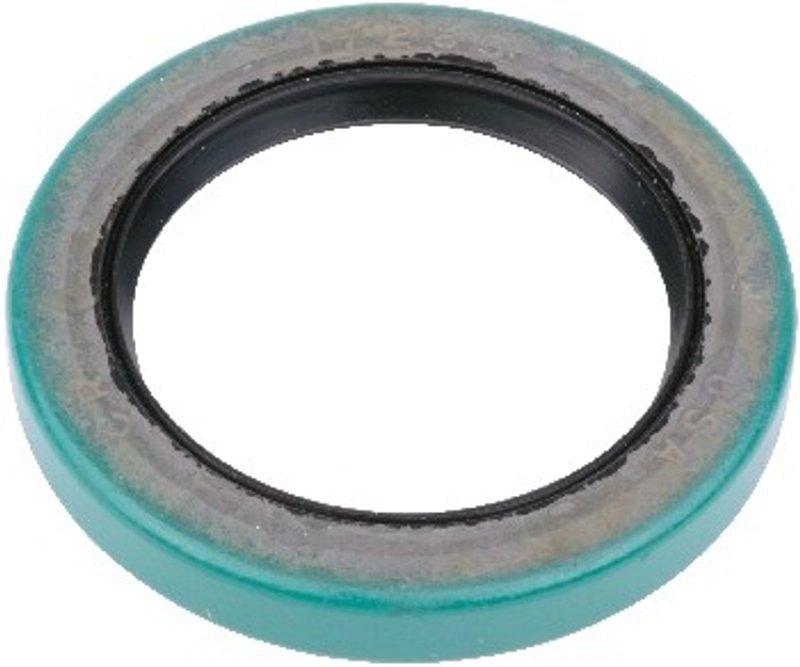

SKF 17285 Manual Transmission Seal - Rear

Manual Transmission Seal Overview

This SKF manual transmission seal is built for specific rear transmission applications on International trucks with the T24 (IHC) transmission. It uses a nitrile sealing surface and precise dimensions to help maintain a proper seal at the shaft interface.

SKF part number 17285 is a direct-fit sealing component for manual transmission service where fluid retention and contamination control are critical. SKF 17285 is engineered for the correct application environment and is backed by the brand’s long history in seal design.

Key Features

• Nitrile sealing surface for dependable fluid sealing performance
• Precision dimensions: 0.315 in. width, 2.441 in. outside diameter, 1.750 in. shaft diameter
• Application-specific design for manual transmission sealing service
• Fits rear transmission locations on International T24 (IHC) applications
• SKF engineering focused on keeping lubricants in and contaminants out

Detailed Description

SKF 17285 is a manual transmission seal designed around exact dimensional and material requirements rather than a universal format. The nitrile sealing surface is selected for sealing performance in transmission environments, while the measured shaft diameter, outside diameter, and width support accurate installation and sealing contact. This part is used on International MS1210, 1000D, 1200D, 1300D, 1000C, 1100C, 1300C, D1000, D1100, D1200, D900, C1000, C1100, C1200, C1300, and C900 applications with the T24 (IHC) transmission.

SKF has a long background in seal development, and part number 17285 reflects that focus on application-specific construction and material selection. For buyers searching for an International manual transmission seal, SKF 17285 provides a direct replacement option for the listed rear transmission applications.

What It Helps Address

• Transmission fluid seepage at the shaft seal area
• Contamination entering the transmission housing
• Wear-related sealing loss from an aged seal
• Service replacement for a leaking manual transmission seal

Installation Notes and Tips

Verify shaft diameter, outside diameter, and width before installation to confirm the seal matches the transmission service point. Clean the sealing bore and shaft surface thoroughly before fitting the new seal, and inspect the shaft for grooves or damage that could affect sealing performance. Confirm the vehicle application and T24 (IHC) transmission notes before ordering SKF 17285.

Quality Assurance

SKF has been developing seals since 1928 and manufactures sealing products to specific designs using premium materials. Part number 17285 is produced to support long service life and reliable sealing performance in the intended application.
