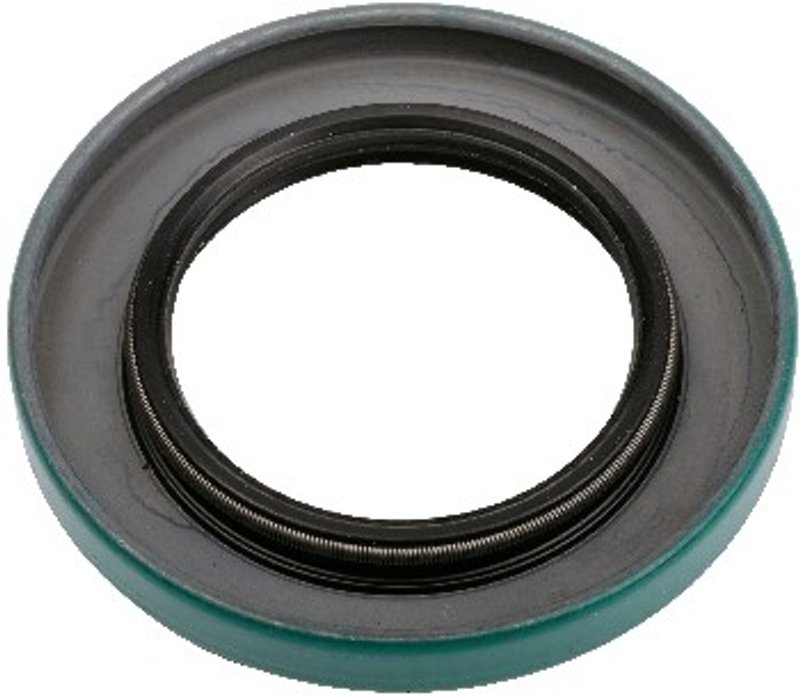

SKF 17753 Automatic Transmission Oil Pump Seal - Front or Front Outer
| Brand | SKF 17753 |
|---|---|
| Position | Front and Front Outer |
| Width | 0.315 |
| Outside Diameter | 2.447 |
| Sealing Surface Type | Longlife |
| Shaft Diameter | 1.772 |
| Fits | Chevrolet, Geo, Isuzu, Pontiac, Porsche, and Volkswagen · 42 vehicles |
LongLife sealing surface. Built for durable contact performance in transmission sealing applications.
Premium materials. Application-specific construction matches the seal to its operating environment.
SKF seal heritage. Backed by decades of seal design and manufacturing experience.
Cross-references 9-1210-78, 82-80002 and 087-409-529A for the same application. See all 9.
Automatic Transmission Oil Pump Seal
SKF 17753 is an automatic transmission oil pump seal built for specific front and front outer applications. It uses a LongLife sealing surface and premium materials to help maintain sealing performance in demanding transmission environments.
Key Features
- Automatic transmission oil pump seal for targeted sealing applications
- LongLife sealing surface type for durable contact performance
- Premium material construction matched to the application environment
- Dimensions: 0.315 in. width, 2.447 in. outside diameter, 1.772 in. shaft diameter
- SKF 17753 is engineered to meet specific seal design requirements
Detailed Description
SKF 17753 is a transmission sealing component used to retain lubricant and block contaminants at the oil pump area. The seal is designed around precise dimensional requirements, including a 1.772-inch shaft diameter and 2.447-inch outside diameter, to support proper fit in the intended transmission assembly. SKF 17753 reflects SKF’s long history in seal design and manufacturing, with a focus on materials and bonding methods suited to the operating environment.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Solve
- Transmission fluid seepage at the oil pump seal area
- Contamination entering the transmission through a worn seal
- Loss of sealing integrity from age, heat, or wear
- Fitment issues when replacing a worn automatic transmission oil pump seal
Installation Notes and Tips
Verify shaft diameter, outside diameter, and seal width before installation. Clean the sealing bore and shaft surface thoroughly, and inspect the mating surfaces for wear or damage that could affect sealing performance. Confirm vehicle fitment by year, make, model, and transmission notes before ordering.
Quality Assurance
SKF designs and manufactures seals to high quality standards, using premium materials and application-specific construction for long service life and safety.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 1993 | Geo | Storm | — | Front | — |
| 1993 | Isuzu | Stylus | — | Front | — |
| 1992 | Geo | Storm | — | Front | — |
| 1992 | Isuzu | Stylus | — | Front | — |
| 1991 | Geo | Storm | — | Front | — |
| 1991 | Isuzu | Stylus | — | Front | — |
| 1990 | Geo | Storm | — | Front | — |
| 1989 | Isuzu | I-Mark | — | Front | — |
| 1989 | Pontiac | Firefly | — | Front | KF100 17R Trans. |
| 1989 | Pontiac | Optima | — | Front | KF100 17R Trans. |
| 1988 | Chevrolet | Spectrum | — | Front | — |
| 1988 | Isuzu | I-Mark | — | Front | — |
| 1988 | Pontiac | Firefly | — | Front | KF100 17R Trans. |
| 1988 | Pontiac | Optima | — | Front | KF100 17R Trans. |
| 1988 | Pontiac | Sunburst | — | Front | KF100 17R Trans. |
| 1988 | Volkswagen | Quantum | Automatic | Front Outer | — |
| 1987 | Chevrolet | Spectrum | — | Front | — |
| 1987 | Isuzu | I-Mark | — | Front | — |
| 1987 | Pontiac | Firefly | — | Front | KF100 17R Trans. |
| 1987 | Pontiac | Sunburst | — | Front | KF100 17R Trans. |
| 1987 | Volkswagen | Quantum | Automatic | Front Outer | — |
| 1986 | Chevrolet | Spectrum | — | Front | — |
| 1986 | Isuzu | I-Mark | — | Front | — |
| 1986 | Pontiac | Firefly | — | Front | KF100 17R Trans. |
| 1986 | Pontiac | Sunburst | — | Front | KF100 17R Trans. |
| 1985 | Chevrolet | Spectrum | — | Front | — |
| 1985 | Isuzu | I-Mark | — | Front | — |
| 1985 | Pontiac | Firefly | — | Front | KF100 17R Trans. |
| 1985 | Pontiac | Sunburst | — | Front | KF100 17R Trans. |
| 1985 | Porsche | 944 | — | Front | — |
| 1984 | Isuzu | I-Mark | — | Front | — |
| 1984 | Porsche | 944 | — | Front | — |
| 1983 | Isuzu | I-Mark | — | Front | — |
| 1983 | Porsche | 944 | — | Front | — |
| 1982 | Isuzu | I-Mark | — | Front | — |
| 1982 | Porsche | 924 | — | Front | — |
| 1981 | Isuzu | I-Mark | — | Front | — |
| 1981 | Porsche | 924 | — | Front | — |
| 1980 | Porsche | 924 | — | Front | — |
| 1979 | Porsche | 924 | — | Front | — |
| 1978 | Porsche | 924 | — | Front | — |
| 1977 | Porsche | 924 | — | Front | — |
