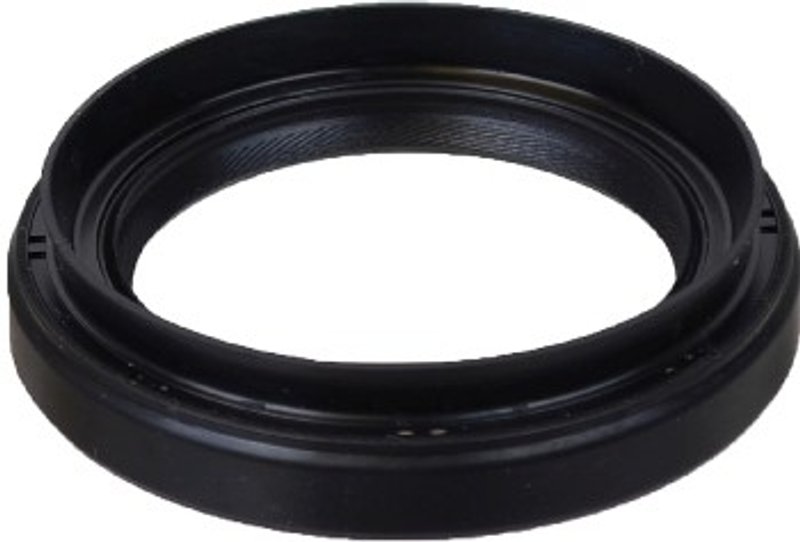

SKF 19685A Transfer Case Output Shaft Seal - Rear
| Brand | SKF 19685A |
|---|---|
| Position | Rear |
| Width | 0.393 |
| Outside Diameter | 2.769 |
| Sealing Surface Type | Polyacrylate |
| Shaft Diameter | 1.969 |
| Fits | Lexus and Toyota · 46 vehicles |
Polyacrylate sealing surface. Built for consistent contact and dependable fluid control in transfer case service.
Application-specific design. Made to precise dimensions for the correct shaft and housing fit.
SKF seal expertise. Backed by more than a century of sealing development and manufacturing.
Cross-references 9031150040 for the same application. See all 1.
Transfer Case Seal Overview
SKF transfer case output shaft seal 19685A is a direct-fit sealing component for rear transfer case applications. It is built to keep lubricant contained and help block contamination in demanding driveline service.
- Fits rear transfer case output shaft applications.
- Polyacrylate sealing surface for dependable sealing performance.
- Made to specific design dimensions for proper shaft contact.
- SKF seal engineering backed by long-term OE-style sealing expertise.
Fitment Details
Compatible with Lexus LX570, Toyota Land Cruiser, Toyota Sequoia, Toyota Tundra, and Toyota Tacoma rear transfer case applications. Fits 2008-2017 Lexus LX570, rear; Fits 2008-2011 Lexus LX570, rear; Fits 2008-2017 Toyota Land Cruiser, rear; Fits 2008-2011 Toyota Land Cruiser, rear; Fits 2008-2017 Toyota Sequoia, rear; Fits 2008-2013 Toyota Tundra, rear; Fits 2007 Toyota Tacoma, rear. Part number 19685A is listed for these applications, and 19685A is the reference to verify during ordering.
What It Helps Address
- Transfer case fluid seepage at the output shaft.
- Contamination entering the sealing area.
- Wear-related sealing loss from age or mileage.
- Service replacement for damaged or hardened seals.
Installation Notes
Confirm shaft diameter, outside diameter, and width before installation. Inspect the sealing surface and surrounding housing for wear, scoring, or debris before fitting the new seal. Proper seating and clean assembly surfaces are important for reliable sealing performance.
Quality Assurance
SKF has a long history in seal design and manufacturing, including early integrated shaft seal development. Part number 19685A is manufactured to specific design requirements using premium materials for the intended application environment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Lexus | LX570 | — | — | Rear | — |
| 2017 | Toyota | Land Cruiser | — | — | Rear | — |
| 2017 | Toyota | Sequoia | — | — | Rear | — |
| 2016 | Lexus | LX570 | — | — | Rear | — |
| 2016 | Toyota | Land Cruiser | — | — | Rear | — |
| 2016 | Toyota | Sequoia | — | — | Rear | — |
| 2015 | Lexus | LX570 | — | — | Rear | — |
| 2015 | Toyota | Land Cruiser | — | — | Rear | — |
| 2015 | Toyota | Sequoia | — | — | Rear | — |
| 2014 | Lexus | LX570 | — | — | Rear | — |
| 2014 | Toyota | Land Cruiser | — | — | Rear | — |
| 2014 | Toyota | Sequoia | — | — | Rear | — |
| 2013 | Lexus | LX570 | — | — | Rear | — |
| 2013 | Toyota | Land Cruiser | — | — | Rear | — |
| 2013 | Toyota | Sequoia | 5.7L | V8 | Rear | — |
| 2013 | Toyota | Tundra | 4.0L | V6 | Rear | — |
| 2013 | Toyota | Tundra | 4.6L | V8 | Rear | — |
| 2013 | Toyota | Tundra | 5.7L | V8 | Rear | — |
| 2012 | Toyota | Sequoia | 4.6L | V8 | Rear | — |
| 2012 | Toyota | Sequoia | 5.7L | V8 | Rear | — |
| 2012 | Toyota | Tundra | 4.0L | V6 | Rear | — |
| 2012 | Toyota | Tundra | 4.6L | V8 | Rear | — |
| 2012 | Toyota | Tundra | 5.7L | V8 | Rear | — |
| 2011 | Lexus | LX570 | — | — | Rear | — |
| 2011 | Toyota | Land Cruiser | 5.7L | V8 | Rear | — |
| 2011 | Toyota | Sequoia | 4.6L | V8 | Rear | — |
| 2011 | Toyota | Sequoia | 5.7L | V8 | Rear | — |
| 2011 | Toyota | Tundra | 4.0L | V6 | Rear | — |
| 2011 | Toyota | Tundra | 4.6L | V8 | Rear | — |
| 2011 | Toyota | Tundra | 5.7L | V8 | Rear | — |
| 2010 | Lexus | LX570 | — | — | Rear | — |
| 2010 | Toyota | Land Cruiser | 5.7L | V8 | Rear | — |
| 2010 | Toyota | Sequoia | 4.6L | V8 | Rear | — |
| 2010 | Toyota | Sequoia | 5.7L | V8 | Rear | — |
| 2010 | Toyota | Tundra | 4.0L | V6 | Rear | — |
| 2010 | Toyota | Tundra | 4.6L | V8 | Rear | — |
| 2010 | Toyota | Tundra | 5.7L | V8 | Rear | — |
| 2009 | Lexus | LX570 | — | — | Rear | — |
| 2009 | Toyota | Land Cruiser | — | — | Rear | — |
| 2009 | Toyota | Sequoia | — | — | Rear | — |
| 2009 | Toyota | Tundra | — | — | Rear | — |
| 2008 | Lexus | LX570 | — | — | Rear | — |
| 2008 | Toyota | Land Cruiser | — | — | Rear | — |
| 2008 | Toyota | Sequoia | — | — | Rear | — |
| 2008 | Toyota | Tundra | — | — | Rear | — |
| 2007 | Toyota | Tacoma | — | — | Rear | — |
