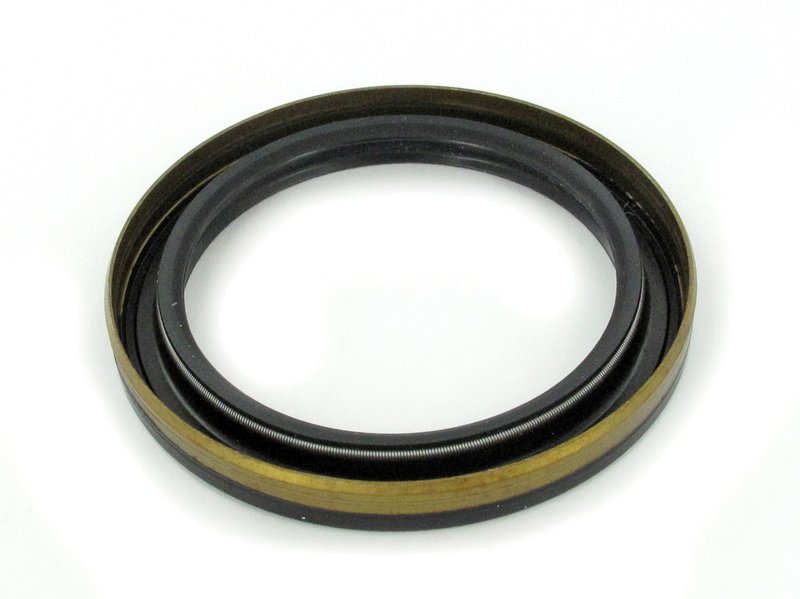

SKF 20546 Manual Transmission Seal - Rear
| Brand | SKF 20546 |
|---|---|
| Position | Rear |
| Fits | Dodge and BMW · 23 vehicles |
Seal integrity. Keeps lubricants in and contaminants out.
Polyacrylate sealing surface. Built with premium materials for the right application fit.
Precision-engineered design. Made to specific designs for dependable sealing performance.
Cross-references 5143845AA and 23121222769 for the same application. See all 2.
SKF Manual Transmission Seal 20546
SKF 20546 is a rear manual transmission seal built for specific drivetrain applications that require controlled sealing at the shaft. It uses a polyacrylate sealing surface and precise dimensions to help maintain lubricant retention while keeping road contaminants out. This SKF manual transmission seal is a direct-fit option for select BMW and Dodge rear applications.
Key Features
- Part number 20546 manual transmission seal from SKF
- Rear position seal for manual transmission service
- Polyacrylate sealing surface for application-specific sealing performance
- Outside diameter: 2.686 in.
- Shaft diameter: 2.047 in.
- Width: 0.315 in.
- Cross-references Chrysler 5143845AA and BMW 23121222769 for the same application
Application Details
SKF designs seals to match the demands of the shaft, lubricant, and operating environment. Part number 20546 is engineered for rear manual transmission use on select BMW M3, BMW 540i, BMW M5, BMW Z8, Dodge Dakota, and Dodge Ram 1500 applications. If you are replacing a leaking rear transmission seal on a 2001-2004 BMW M3, 1997-2003 BMW 540i, 2000-2003 BMW M5, 2000-2003 BMW Z8, 2005-2006 Dodge Dakota, or 2005-2006 Dodge Ram 1500, this seal matches the listed fitment and dimensions. SKF 20546 is built to help keep transmission fluid in place and external debris out of the sealing area.
What This Seal Helps Address
- Rear transmission fluid seepage at the shaft seal
- Contamination entering the transmission housing
- Seal wear from age, heat, and fluid exposure
- Leak-related low lubricant level concerns
- Service replacement for worn OE-style rear seals
Installation Notes and Tips
Confirm shaft diameter, outside diameter, and seal width before installation. Inspect the shaft surface for grooves, scoring, or corrosion, since seal performance depends on a clean sealing surface. Clean the bore and surrounding area thoroughly, and install the seal squarely to avoid distortion. Verify the transmission is the rear-position application listed for your BMW or Dodge model before final assembly.
Quality Assurance
SKF has a long history in seal engineering and manufacturing, with a focus on precise designs and premium materials for demanding automotive environments. The brand’s sealing products are produced to high quality standards for durability and safe operation in service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Dodge | Dakota | Rear | — |
| 2006 | Dodge | Ram 1500 | Rear | — |
| 2005 | Dodge | Dakota | Rear | — |
| 2005 | Dodge | Ram 1500 | Rear | — |
| 2004 | BMW | M3 | Rear | — |
| 2003 | BMW | 540i | Rear | — |
| 2003 | BMW | M3 | Rear | — |
| 2003 | BMW | M5 | Rear | — |
| 2003 | BMW | Z8 | Rear | — |
| 2002 | BMW | 540i | Rear | — |
| 2002 | BMW | M3 | Rear | — |
| 2002 | BMW | M5 | Rear | — |
| 2002 | BMW | Z8 | Rear | — |
| 2001 | BMW | 540i | Rear | — |
| 2001 | BMW | M3 | Rear | — |
| 2001 | BMW | M5 | Rear | — |
| 2001 | BMW | Z8 | Rear | — |
| 2000 | BMW | 540i | Rear | — |
| 2000 | BMW | M5 | Rear | — |
| 2000 | BMW | Z8 | Rear | — |
| 1999 | BMW | 540i | Rear | — |
| 1998 | BMW | 540i | Rear | — |
| 1997 | BMW | 540i | Rear | — |
