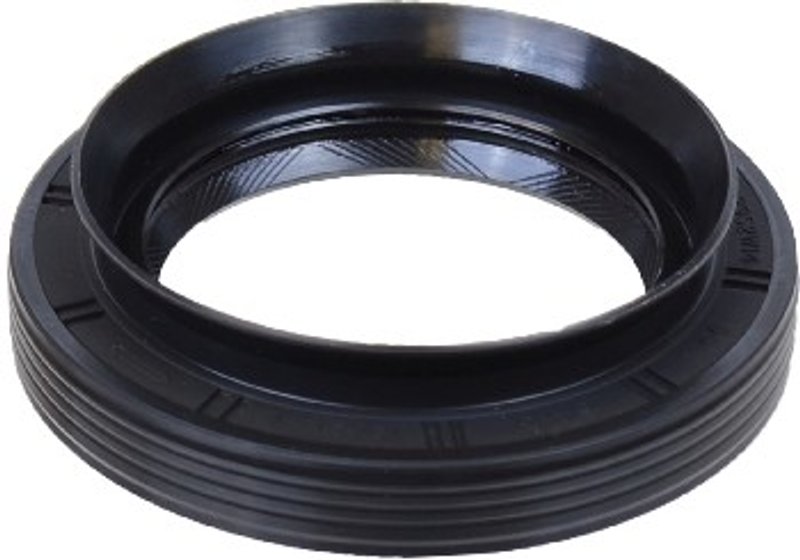

SKF 20696A Transfer Case Output Shaft Seal - Rear

Reliable Transfer Case Output Shaft Seal for Accurate Fit

The SKF 20696A Transfer Case Output Shaft Seal is engineered to provide a precise seal for transfer cases requiring a 2.067-inch shaft diameter. Designed with a polyacrylate sealing surface, this seal ensures effective protection against leaks and contamination in various vehicle makes and models.

• Width: 0.472 inches for optimal sealing depth
• Outside Diameter: 3.312 inches to match transfer case housing
• Shaft Diameter Compatibility: 2.067 inches
• Sealing Surface Type: Durable polyacrylate material
• Part Number: 20696A for exact replacement

Durable Design and Material Specifications

This transfer case output shaft seal from SKF is constructed with a polyacrylate sealing surface, known for its resistance to heat and wear. The 0.472-inch width provides a secure fit within the transfer case housing, while the 3.312-inch outside diameter ensures compatibility with a range of transfer case designs. The 2.067-inch shaft diameter specification makes it suitable for vehicles requiring this precise dimension, including certain Ford, Chevrolet, and Dodge models. The SKF 20696A part number identifies this seal as a direct replacement part, facilitating straightforward maintenance and repair.

Applications and Problem Resolution

• Prevents transfer case fluid leaks around the output shaft
• Protects internal components from dirt and debris intrusion
• Maintains transfer case pressure and lubrication integrity
• Reduces wear on output shaft bearings by preventing contamination
• Addresses common seal failure issues in compatible Ford, Chevrolet, and Dodge transfer cases

Installation Notes and Tips

Ensure the transfer case output shaft and housing are clean and free of debris before installation. Verify the shaft diameter matches the 2.067-inch specification for proper fit. Use appropriate tools to press the seal evenly into the housing without distortion. Avoid damaging the polyacrylate sealing surface during installation to maintain sealing effectiveness.

Quality Assurance and Warranty

SKF manufactures the 20696A transfer case output shaft seal to meet industry standards for durability and performance. While specific warranty details are not provided, SKF products typically undergo rigorous quality control to ensure reliability in automotive applications.
